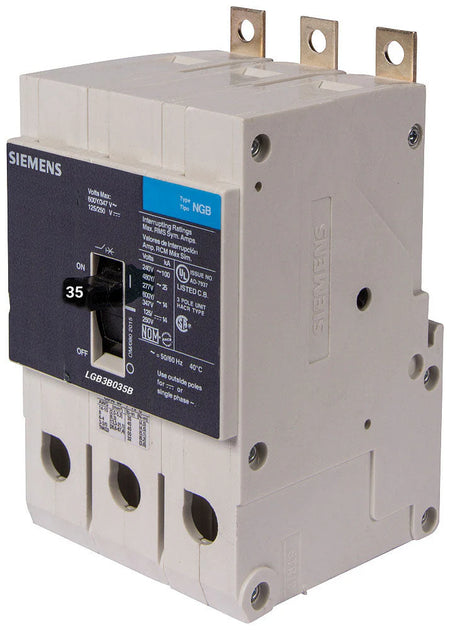

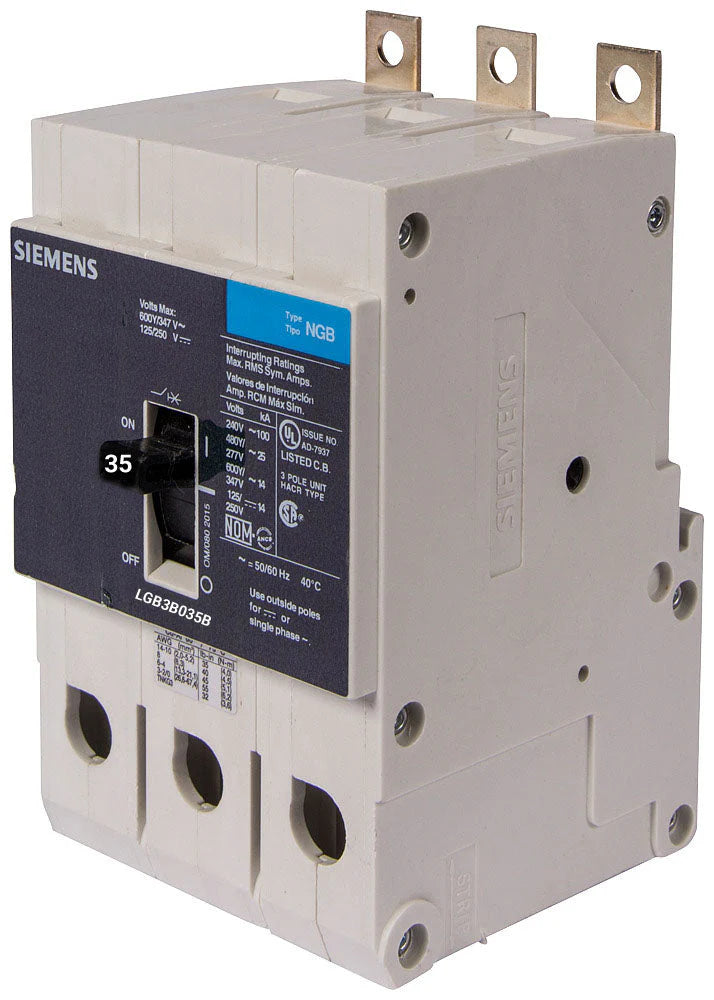

Siemens LGB3B035B Circuit Breaker – VL Series – 35A – 3 Pole – 600VAC – Thermal Magnetic – Bolt-On – Panelboard Mount

The Siemens LGB3B035B is a VL Series molded case circuit breaker designed for reliable overload and short-circuit protection in commercial, institutional, and industrial electrical distribution systems. Rated at 35A and 600VAC, this 3-pole breaker is intended for three-phase applications requiring compact size, high interrupting capacity, and dependable circuit protection.

Equipped with a thermal-magnetic trip unit featuring Long-Time and Instantaneous (LI) protection functions, the LGB3B035B delivers effective protection against sustained overload conditions and high fault currents. Built on the Siemens LGB (G-frame) platform, it is designed for panelboard mounting and high-performance distribution applications.

This model includes load-side lugs only (TC1GG20) and supports copper/aluminum conductors within the specified wire range, ensuring secure and flexible installation. Its UL listing and high interrupting ratings make it suitable for demanding electrical environments where space efficiency and strong fault protection are required.

Specifications

• Brand: Siemens Breakers
• Part Number: LGB3B035B
• Series: VL Series
• Type: LGB Molded Case Circuit Breaker
• Frame Type: G Frame (LGB)
• Category: Molded Case Circuit Breaker
• Mounting Type: Bolt-On
• Installation Type: Panelboard Mounting
• Protection Type: Thermal Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Terminal Configuration: Load Side Lugs Only (TC1GG20)

Electrical Ratings

• Current Rating: 35A
• Voltage Rating: 600VAC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Interrupting Capacity: 65kA @ 480Y/277V
• Interrupting Capacity: 14kA @ 600Y/347V
• High Interrupting Capacity Design: 100kA system-level rating (as specified basis)

Construction

• Compact molded case design
• VL Series G-frame construction
• Thermal-magnetic trip mechanism
• Bolt-on mounting configuration
• Panelboard installation compatible
• High interrupting capacity design
• Load-side lug terminals only
• Durable industrial-grade housing
• Designed for high-fault current environments

Functions

• Overload protection
• Short-circuit protection
• Long-time delay protection
• Instantaneous fault protection
• Circuit switching and isolation

Dimensions

• Height: 3 in
• Width: 5.4 in
• Depth: 2.8 in
• Weight: 2.76 lbs

Standards

• UL Listed
• CSA Approved

Applications

• Commercial electrical distribution systems
• Industrial panelboards
• Branch circuit protection
• High fault-current installations
• Institutional facilities
• Three-phase power distribution systems
