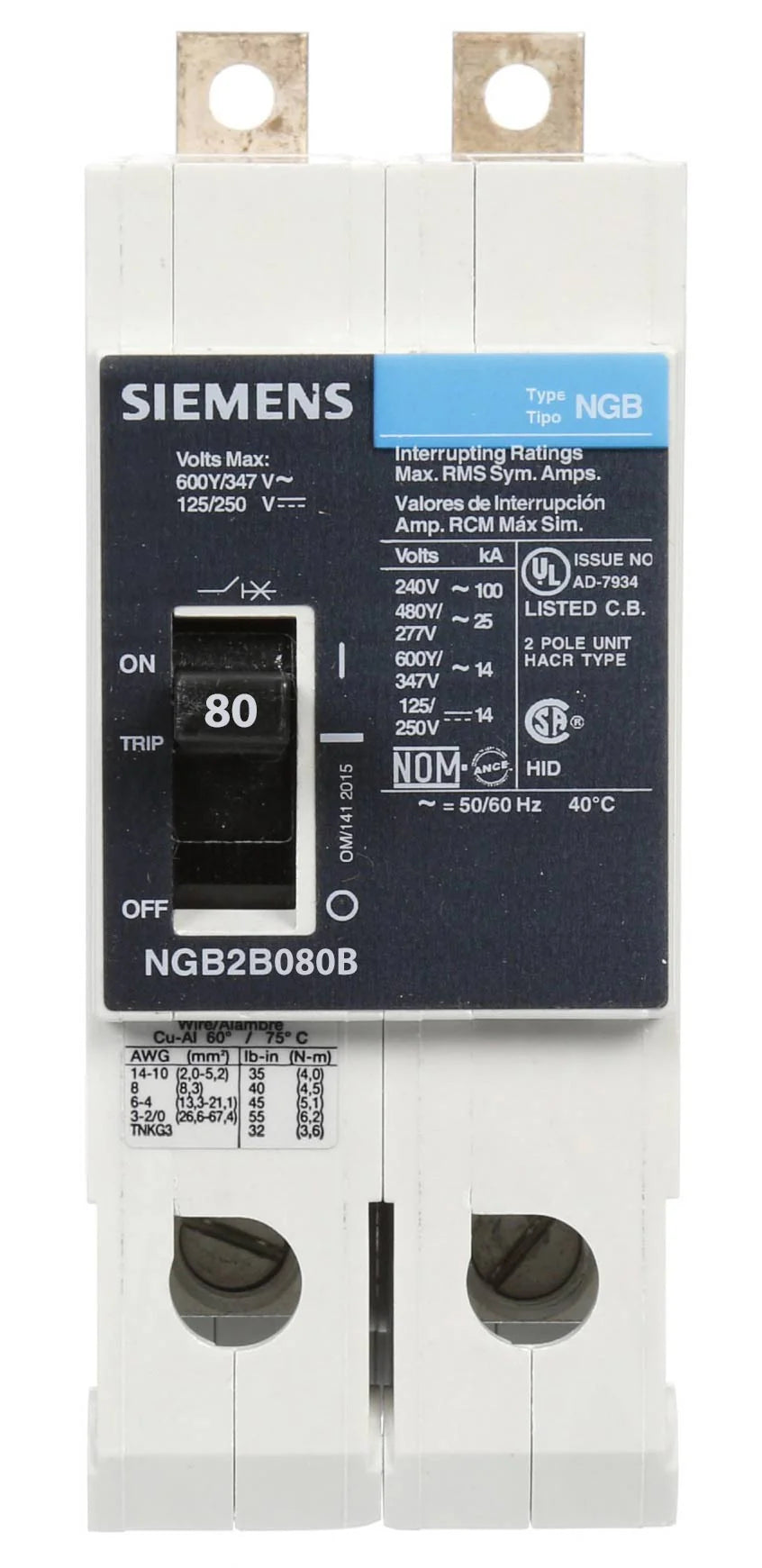

Siemens NGB2B080B Circuit Breaker – VL Series – NGB Frame – 80A – 2 Pole – 600VAC – Bolt-On – Thermal Magnetic

The Siemens NGB2B080B is a VL Series molded case circuit breaker designed for reliable circuit protection in panelboard and low-voltage distribution systems. Rated at 80A and 600VAC, this 2-pole breaker is built on the NGB frame platform and is suitable for single-phase applications requiring compact, high-performance protection.

Equipped with a thermal-magnetic trip unit, the NGB2B080B provides Long-Time and Instantaneous (LI) protection, ensuring fast response to overload and short-circuit conditions. Its bolt-on design enables secure installation in panelboards and supports reverse feed applications where applicable.

This breaker is UL listed and engineered for consistent performance, durability, and high interrupting capacity in commercial and industrial electrical systems.

Specifications

• Brand: Siemens / ITE
• Part Number: NGB2B080B
• Series: VL Series
• Frame Type: NGB Frame
• Category: Molded Case Circuit Breaker
• Mounting Type: Panelboard Bolt-On
• Configuration: 2 Pole
• Phase: 1 Phase
• Protection Type: Thermal Magnetic
• Trip Functions: LI – Long-Time and Instantaneous

Electrical Ratings

• Current Rating: 80A
• Voltage Rating: 600VAC
• Interrupting Capacity: 25kA @ 480VAC
• Application Suitability: Reverse feed capable (panelboard dependent)

Construction

• Compact NGB frame molded case design
• Bolt-on mounting system for panelboards
• Thermal-magnetic trip mechanism
• Load side lugs included
• Industrial-grade durable housing

Functions

• Overload protection
• Short-circuit protection
• Long-time delay protection
• Instantaneous fault protection
• Circuit switching and isolation

Dimensions

• Height: 2 in
• Width: 5.54 in
• Depth: 2.8 in
• Weight: 1.8 lb

Applications

• Commercial electrical panelboards
• Industrial distribution systems
• Lighting and control circuits
• Single-phase branch circuit protection
• High-voltage low-current applications
