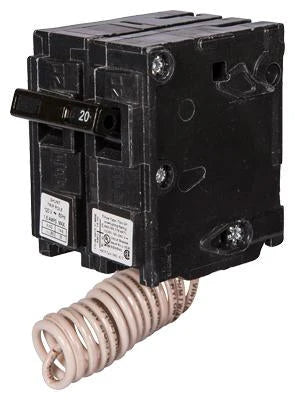

Siemens Q12000S01 Circuit Breaker – Q Series – 20A – 2 Pole – 120VAC – Plug-In – Thermal Magnetic – Shunt Trip

The Siemens Q12000S01 is a Q Series molded case circuit breaker designed for residential and light commercial load center applications requiring reliable circuit protection and remote tripping capability. Rated at 20A and 120VAC, this 1-pole plug-in breaker provides dependable protection for standard branch circuits.

This model features a thermal-magnetic trip mechanism with Long-Time and Instantaneous (LI) functions, ensuring effective response to overloads and short-circuit conditions. It also includes a factory-installed 120V shunt trip coil, allowing remote disconnection of the circuit for enhanced safety and control integration.

Specifications

• Brand: Siemens
• Part Number: Q12000S01
• Series: Q Series
• Category: Residential / Light Commercial Circuit Breaker
• Mounting Type: Plug-In (Load Center Compatible)
• Configuration: 1 Pole
• Phase: 1 Phase
• Protection Type: Thermal Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Special Feature: 120V Shunt Trip
• Standard: UL 489

Electrical Ratings

• Current Rating: 20A
• Voltage Rating: 120VAC
• Interrupting Capacity: 10 kA @ 120VAC
• Application: Residential and light commercial branch circuits

Construction

• Compact molded case design
• Plug-in mounting for Siemens Q Series load centers
• Integrated thermal-magnetic trip unit
• Factory-installed 120V shunt trip coil
• Durable insulated housing

Functions

• Overload protection
• Short-circuit protection
• Remote trip capability (shunt trip)
• Circuit isolation and switching

Dimensions

• Net Weight: 0.551 lb

Applications

• Residential load centers
• Lighting and receptacle circuits
• HVAC control and safety shutdown circuits
• Emergency remote disconnect system
