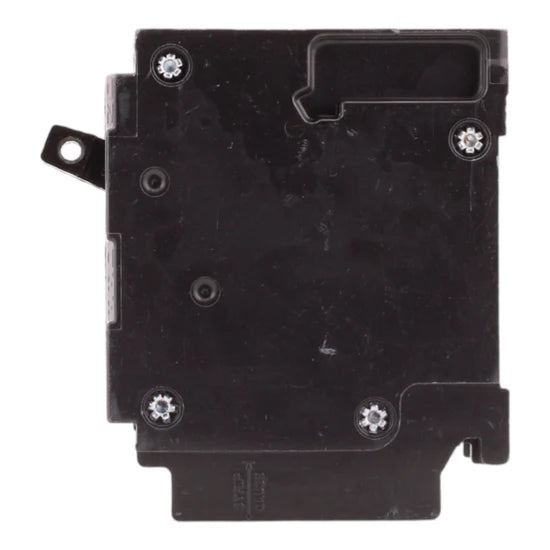

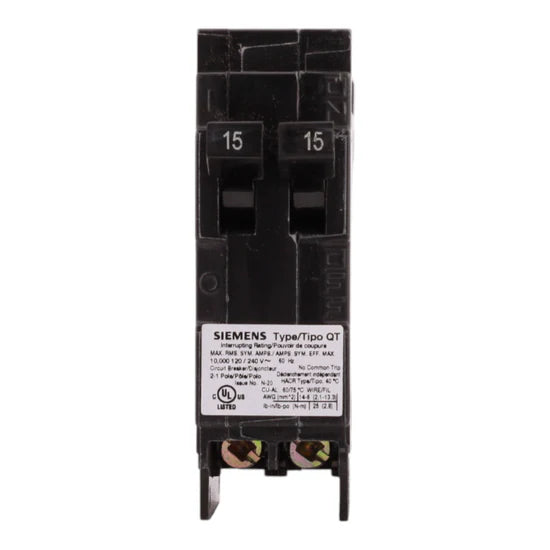

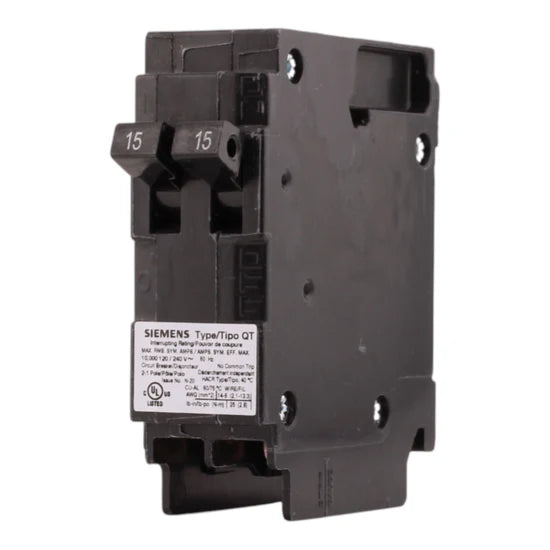

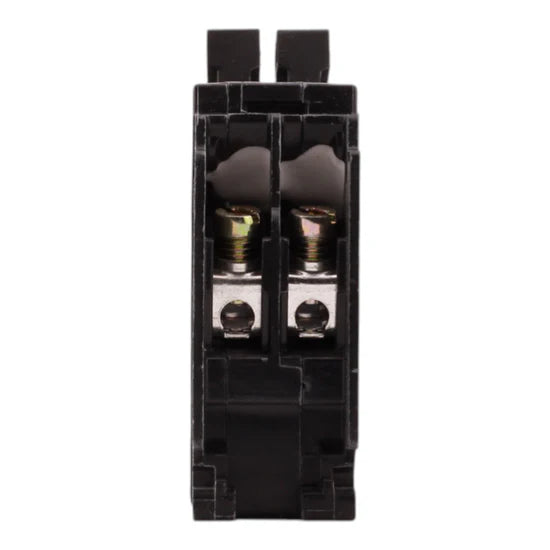

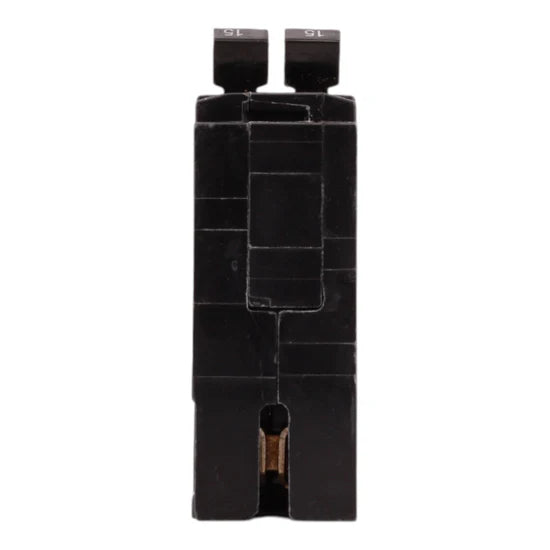

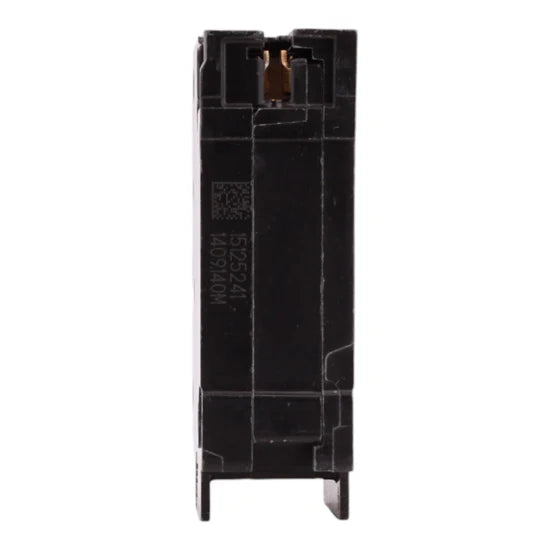

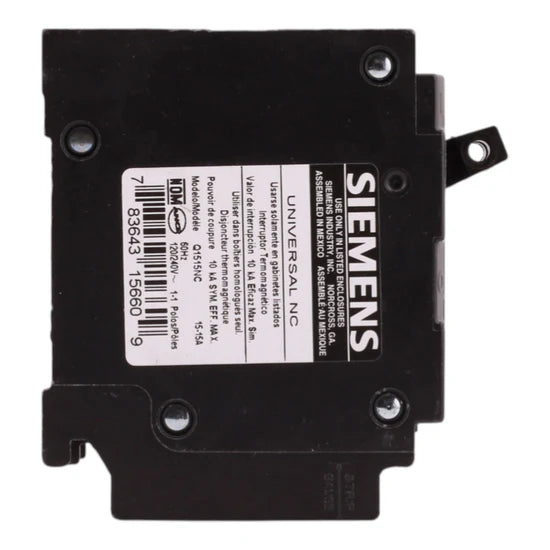

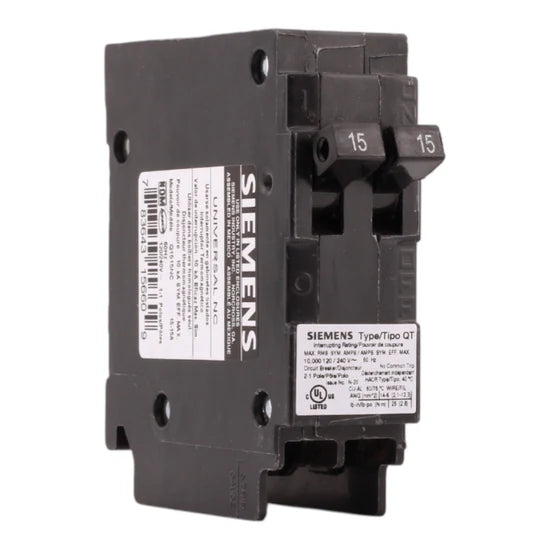

Siemens Q1515NC 15/15A 1-Pole Duplex Non-CTL Circuit Breaker – Plug-In – 120V

The Siemens Q1515NC duplex non-current limiting circuit breaker provides reliable 15/15A, 1-pole protection for 120V circuits. Designed for Siemens Type QT load centers, its compact duplex construction allows two circuits in a single breaker space. The plug-in design enables quick installation while maintaining dependable performance for residential electrical distribution.

Voltage and Rating

• Amperage: 15A / 15A
• Poles: 1-Pole
• Voltage Rating: 120 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Duplex Non-Current Limiting (Non-CTL)
• Mounting Type: Plug-In
• Product Range: QT
• Application: Residential branch circuit protection
• Compatible Panels: Siemens Type QT load centers

Technical Specifications

• Wire Size Range: #14–8 AWG Copper/Aluminum
• Connection Terminals: Plug-in
• Terminal Tightening Torque: 25 lb-in
• Certifications: UL Listed

Product Data

• Manufacturer: Siemens
• Brand: Siemens
• Model Number: Q1515NC
• UPC: 783643156609

Dimensions

• • Height: 3.0 in
  • Width: 1.0 in
  • Depth: 3.0 in
  • Weight: 0.375 lbs
