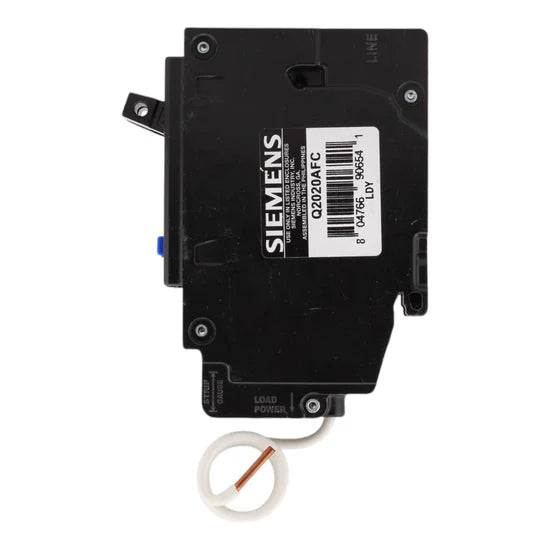

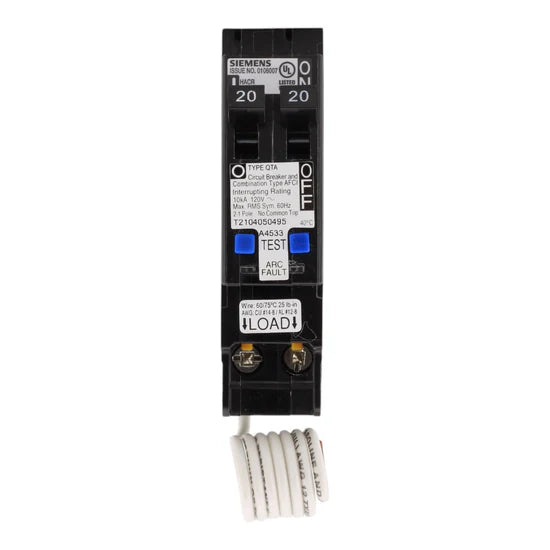

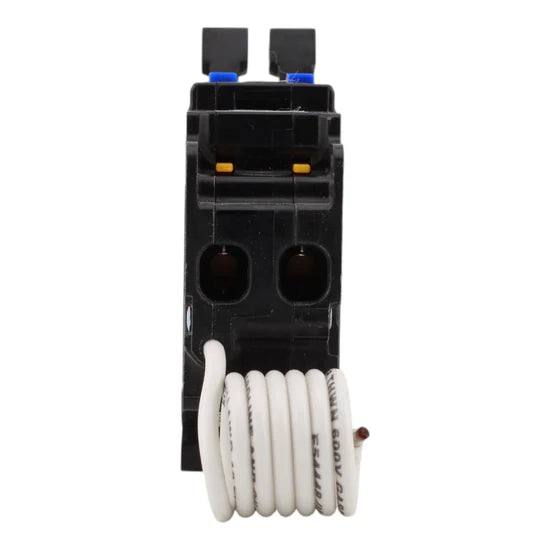

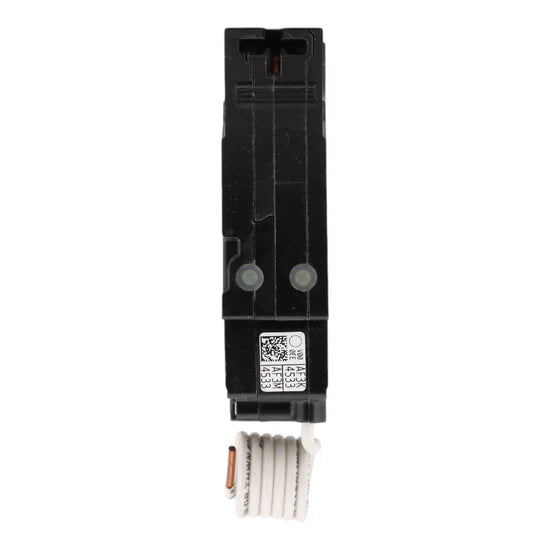

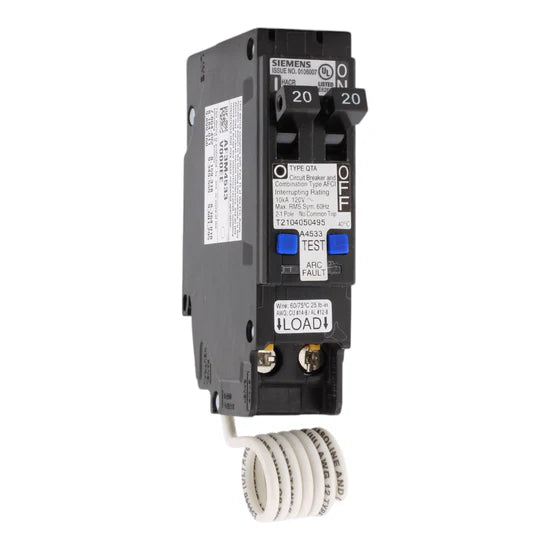

The Siemens Q2020AFC twin (tandem) combination AFCI circuit breaker delivers reliable arc fault protection for 120V residential circuits. Featuring two 20A single-pole breakers in a compact tandem design, it maximizes panel space while providing thermal-magnetic protection. With a 10 kA interrupt rating and plug-in installation, this breaker is ideal for bedrooms, living areas, and other sensitive residential circuits, ensuring enhanced safety and UL compliance.
Voltage and Rating
- Amperage Rating: 20A/20A
- Voltage Rating: 120 Volts AC
- Interrupt Rating: 10 kAIC
Key Specifications
- Breaker Type: Twin (Tandem) Combination AFCI Circuit Breaker
- Number of Poles: Twin (Tandem)
- Connection Type: Plug-In
- Mounting Mode: Plug-In
- Applications: Residential branch circuit protection
Technical Specifications
- Circuit Protection: Thermal-magnetic with integrated AFCI protection
- Protection Function: Arc fault and overload protection
- Certifications: UL Listed
Product Data
-
- Brand: Siemens
- Manufacturer: Siemens
- Model Number: Q2020AFC
- UPC: 804766906541
- Dimensions (H × W × D): 5.118 × 3.15 × 0.787 in
- Weight: 0.441 lb
