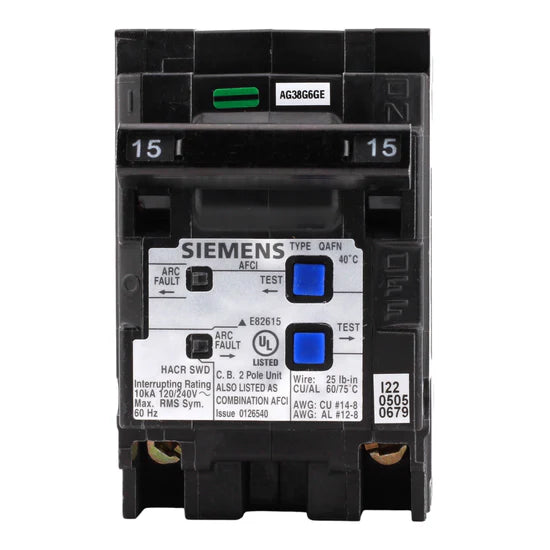

The Siemens Q215AFCN two-pole AFCI circuit breaker delivers dependable arc-fault protection for 120/240V branch circuits. Designed for Siemens QP load centers, this plug-on neutral breaker simplifies installation while providing advanced thermal-magnetic protection. With a 10 kA interrupt rating and UL listing, it enhances electrical safety by detecting hazardous arc faults in residential applications.
Voltage and Rating
- Amperage Rating: 15 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupt Rating: 10 kAIC
Key Specifications
- Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
- Number of Poles: 2-Pole
- Mounting Type: Plug-In
- Connection Type: Plug-On Neutral
- Product Range: QAFN Series
Applications: Residential branch circuit protection
- Compatibility: Siemens QP load centers
Technical Specifications
- Circuit Protection: Thermal-magnetic with AFCI protection
- Wire Size: (1) #14–8 AWG, (2) #14–10 AWG Cu/Al
- Tightening Torque: 35.4 lb-in
- Protection Function: Arc fault and overload protection
- Certifications: UL Listed
Product Data
-
-
- Brand: Siemens
- Manufacturer: Siemens
- Model Number: Q215AFCN
- UPC: 804766906619
- Dimensions (H × W × D): 5.12 × 1.97 × 3.15 in
- Weight: 0.683 lbs
-
