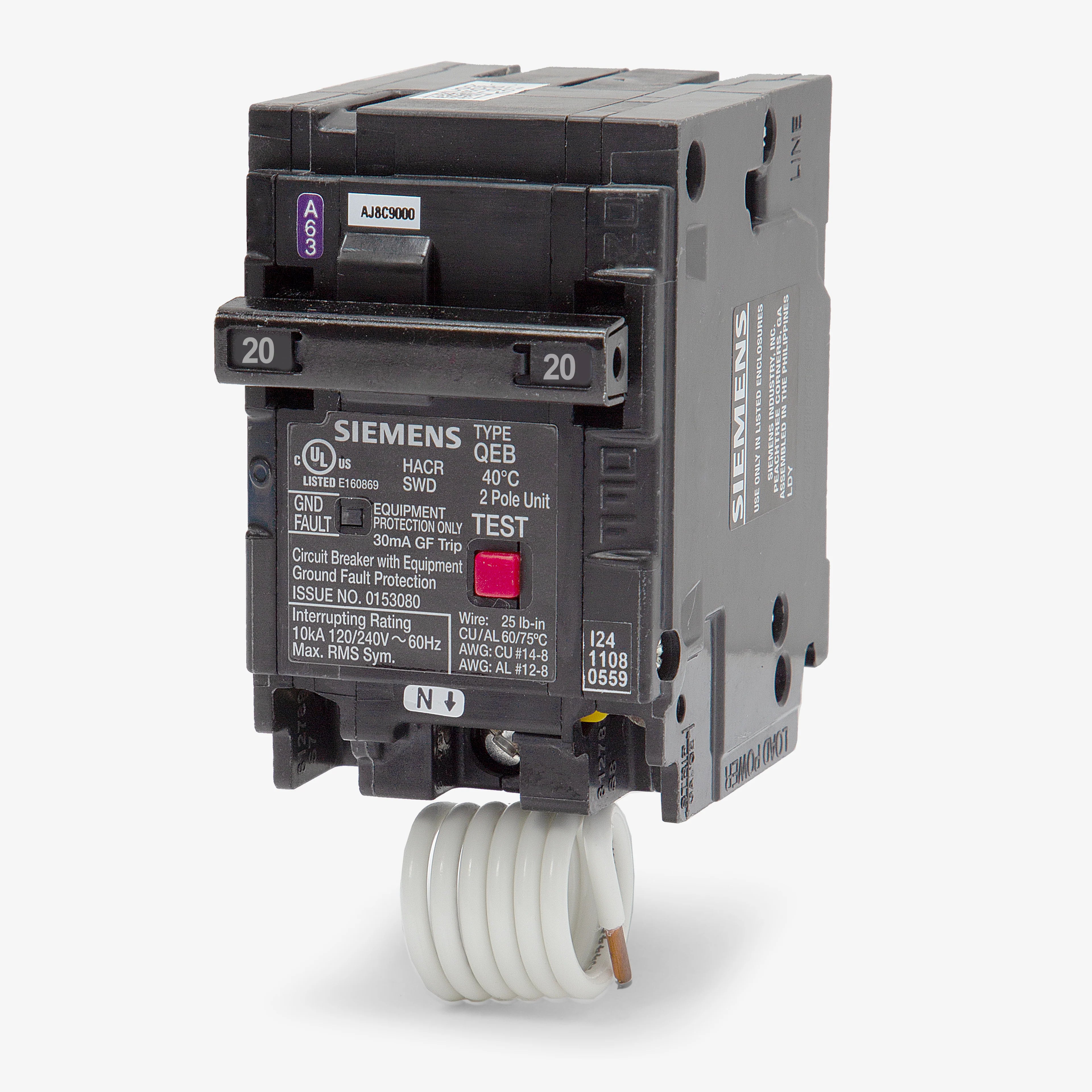

Siemens Q220EG Circuit Breaker – QEB Series – 20A – 2 Pole – 120/240VAC – Plug-On – GFEP (30mA) – Thermal Magnetic

The Siemens Q220EG is a QEB Series molded case circuit breaker designed for dedicated equipment protection where standard GFCI devices may cause nuisance tripping. Rated at 20A and 120/240VAC, this 2-pole breaker provides ground-fault equipment protection (GFEP) with a 30mA trip threshold, making it suitable for industrial and commercial applications such as heat trace systems and pump loads.

Unlike standard 5mA GFCI breakers used for personnel protection, the Q220EG is engineered specifically for equipment protection, allowing greater tolerance for normal leakage currents while still providing reliable fault detection. Its plug-on design allows direct installation into compatible Siemens load centers and serves as a replacement for legacy QE220 models.

This breaker includes thermal-magnetic protection with Long-Time, Instantaneous, and Ground Fault (LIG) trip functions, along with a pigtail neutral connection for proper system integration.

Specifications

• Brand: Siemens
• Part Number: Q220EG
• Series: QEB Series
• Category: Equipment Protection Circuit Breaker (GFEP)
• Mounting Type: Plug-On (Load Center Compatible)
• Configuration: 2 Pole
• Phase: 1 Phase
• Protection Type: Thermal Magnetic + Ground Fault
• Trip Function Code: LIG (Long-Time, Instantaneous, Ground Fault)
• Trip Level: 30mA Ground Fault Protection
• Standard: UL 489 / CSA C22.2

Electrical Ratings

• Current Rating: 20A
• Voltage Rating: 120/240VAC
• Interrupting Capacity: 10 kA @ 120/240VAC
• Application: Equipment ground-fault protection (GFEP)

Construction

• Plug-on molded case design
• Pigtail neutral connection
• Integrated ground-fault sensing (30mA)
• Thermal-magnetic trip mechanism
• Self-test and visual trip indication
• Durable insulated housing

Functions

• Overload protection
• Short-circuit protection
• Ground-fault equipment protection
• Long-time delay protection
• Instantaneous fault protection

Applications

• Heat trace cable systems
• Industrial pumps and motors
• Commercial HVAC equipment
• Freeze protection circuits
• Sensitive equipment requiring GFEP protection
• Legacy QE220 replacement applications
