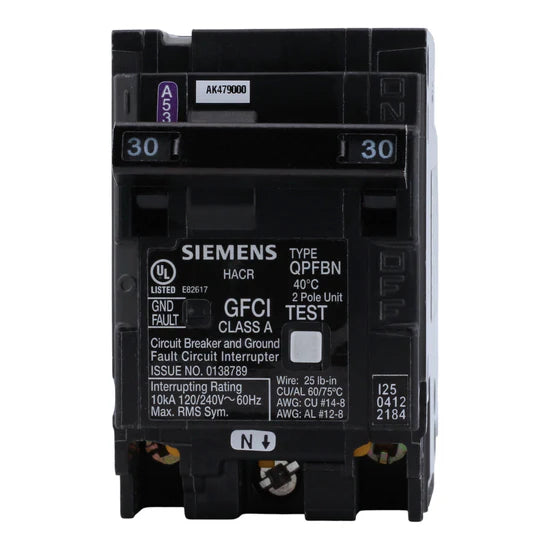

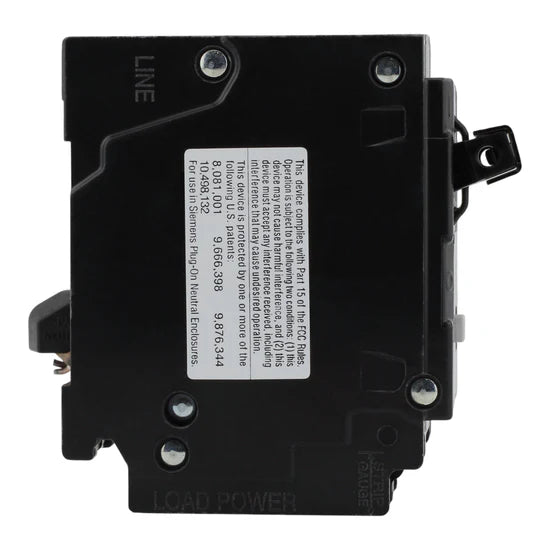

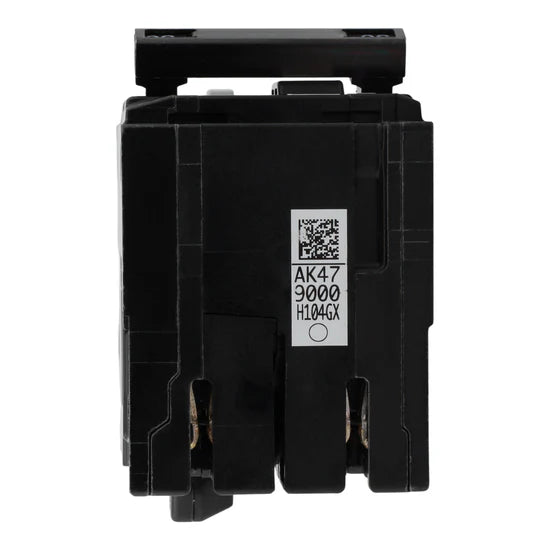

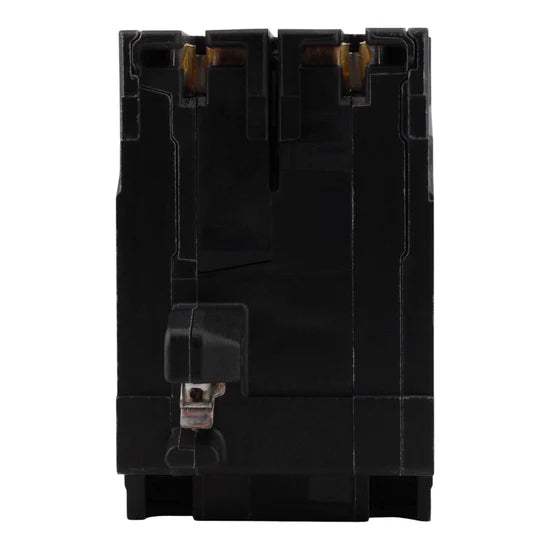

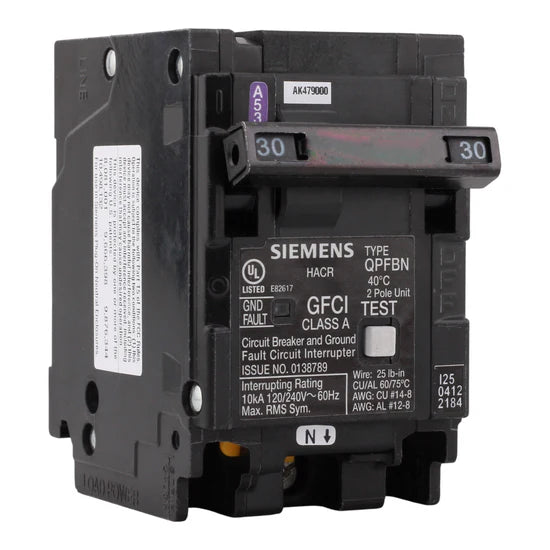

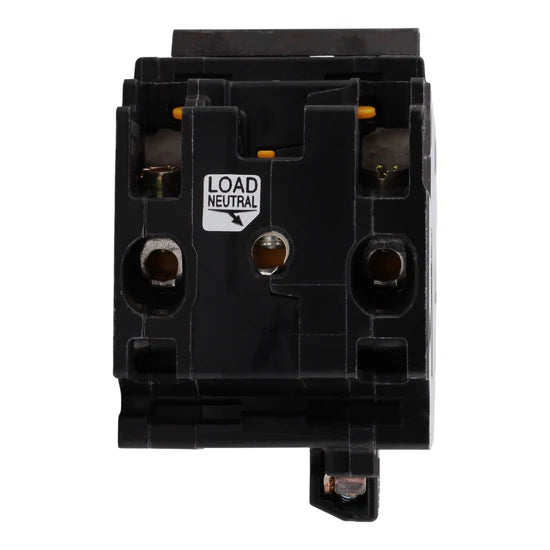

The Siemens Q230GFN is a 30 Amp, 2-pole ground-fault circuit interrupter (GFCI) breaker designed for 240V AC circuits in Siemens QP loadcenters. Featuring plug-on neutral design and 5mA ground-fault trip sensitivity, it provides reliable protection against electrical shocks and enhances residential safety. With a 10kA interrupt rating and HACR compliance, this breaker delivers robust overcurrent and ground-fault protection with easy installation.
Electrical Ratings:
- Amperage: 30 Amps
- Voltage: 240 Volts AC
- Interrupt Rating: 10 kAIC
- Trip Sensitivity: 5 mA ground-fault protection
- Frequency: 50/60 Hz
Key Specifications:
- Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
- Poles: 2-Pole
- Product Range: QP
- Mounting Mode: Plug-In
- Terminal Type: Plug-On Neutral
- Application: Residential branch circuit protection
- Special Rating: HACR Rated
Technical Specifications:
- Wire Size: (1) #14–8 AWG, (2) #14–10 AWG Cu/Al
- Dimensions: 3.13" H × 2.0" W × 3.0" D
- Weight: 0.699 lbs
- Certifications: UL Listed, HACR Rated
Product Data:
-
- Manufacturer: Siemens
- Brand: Siemens
- Model Number: Q230GFN
- UPC: 195125300224
