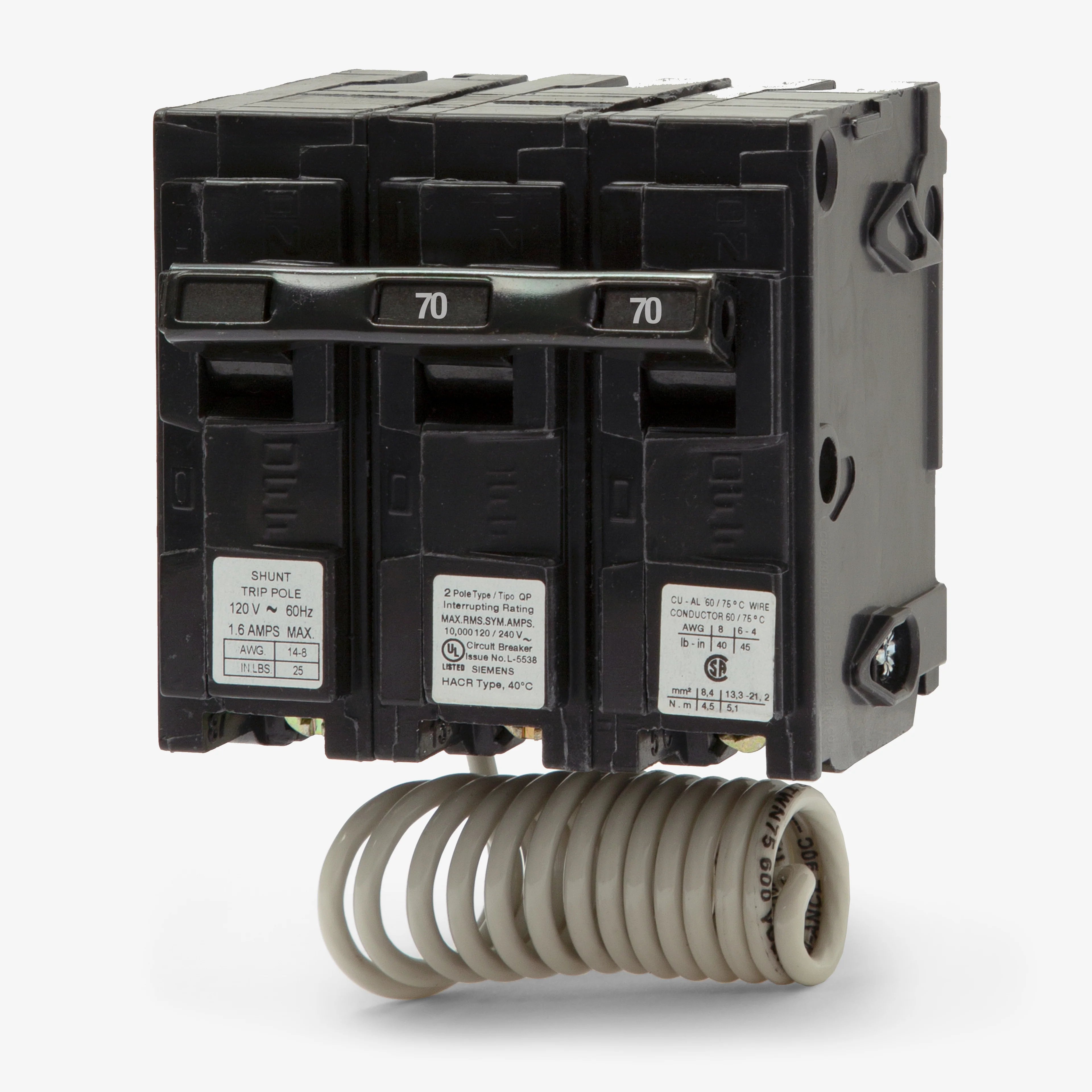

Siemens Q27000S01 Circuit Breaker – QP Series – 70A – 2 Pole – 120/240VAC – Plug-On – Thermal Magnetic – 120VAC Shunt Trip

The Siemens Q27000S01 is a QP Series molded case circuit breaker designed for applications requiring reliable overcurrent protection and remote disconnect capability. Rated at 70A and 120/240VAC, this 2-pole breaker combines thermal-magnetic protection with a factory-installed 120VAC shunt trip, making it ideal for residential, commercial, and light industrial electrical systems.

The breaker features Long-Time and Instantaneous (LI) trip functions to provide dependable protection against overloads and short circuits. Its plug-on design allows for quick installation in compatible Siemens load centers and panelboards, while the common-trip mechanism ensures both poles disconnect simultaneously during fault conditions.

Specifications

• Brand: Siemens
• Part Number: Q27000S01
• Series: QP Series
• Category: Molded Case Circuit Breaker
• Mounting Type: Plug-On
• Configuration: 2 Pole
• Phase: 1 Phase
• Protection Type: Thermal Magnetic
• Trip Function Code: LI
• Trip Functions: Long-Time, Instantaneous
• Special Feature: 120VAC Shunt Trip
• Standards: UL 489, CSA C22.2 No. 5

Electrical Ratings

• Current Rating: 70A
• Voltage Rating: 120/240VAC
• Interrupting Capacity: 10kA @ 120/240VAC
• Frequency: 50/60 Hz
• Trip Adjustability: Fixed

Construction

• Plug-on mounting design
• Common-trip operating mechanism
• Factory-installed 120VAC shunt trip accessory
• Thermal-magnetic trip technology
• Lug terminal connections
• HACR-rated construction
• Optional padlock attachment capability

Conductor Compatibility

• Wire Range: 8 AWG – 2/0 AWG
• Minimum Wire Size: 8 AWG
• Maximum Wire Size: 2/0 AWG

Functions

• Overload protection
• Short-circuit protection
• Remote emergency disconnect capability
• Long-time delay protection
• Instantaneous fault protection
• Simultaneous two-pole tripping

Applications

• Siemens load centers
• Siemens panelboards
• HVAC equipment and compressors
• Industrial control systems
• Emergency shutdown circuits
• Commercial power distribution systems
• Equipment requiring remote trip functionality

Certifications & Approvals

• UL Listed
• CSA Certified
