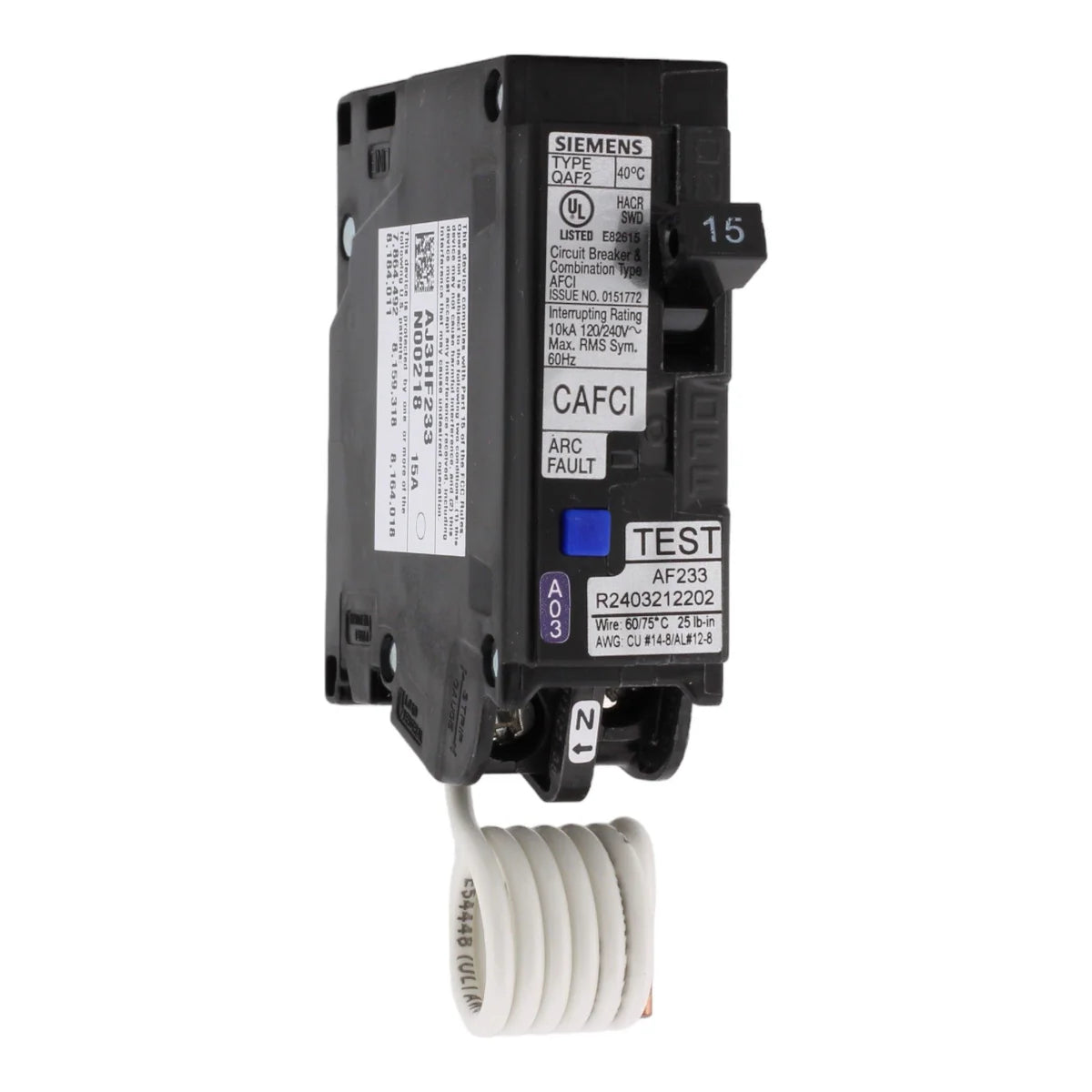

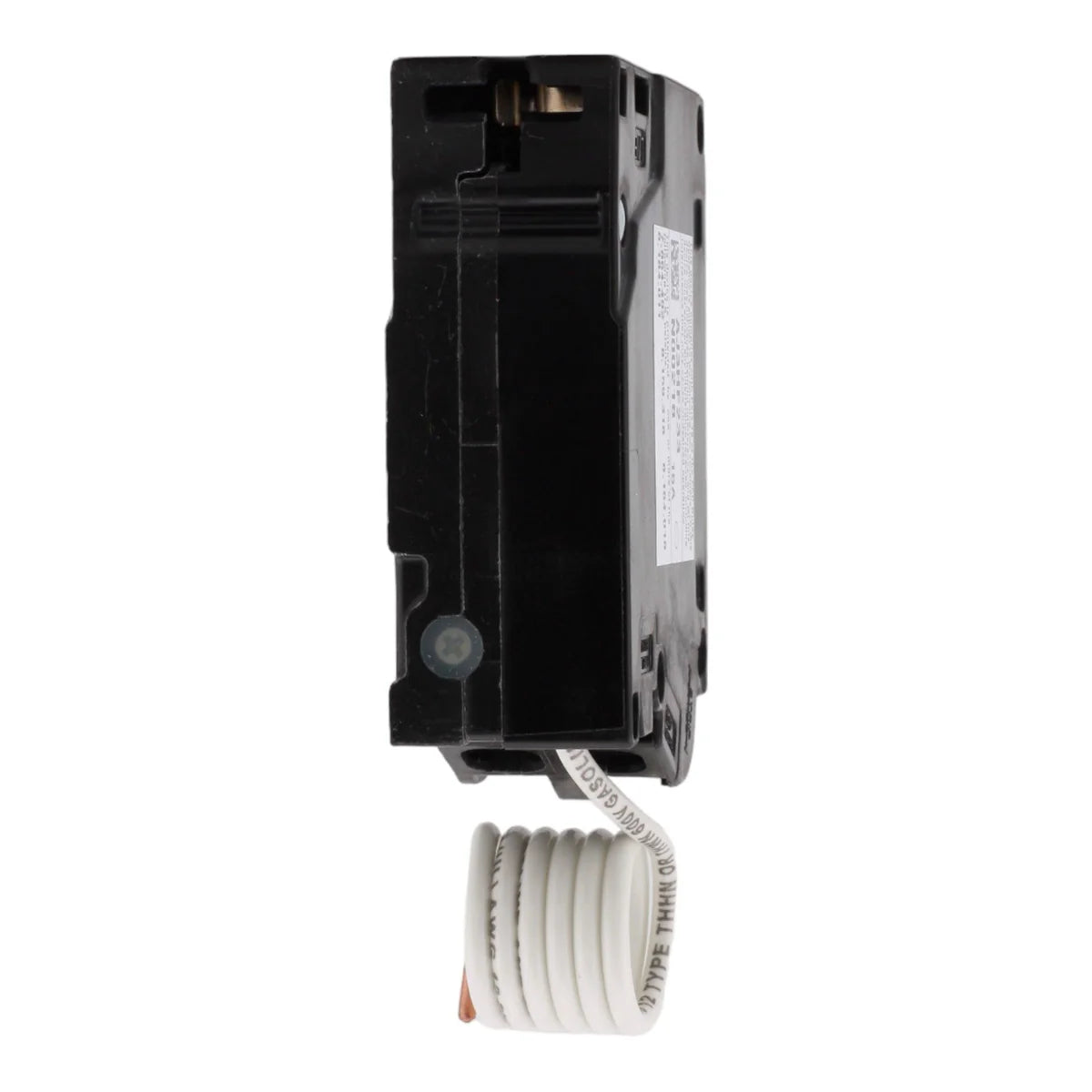

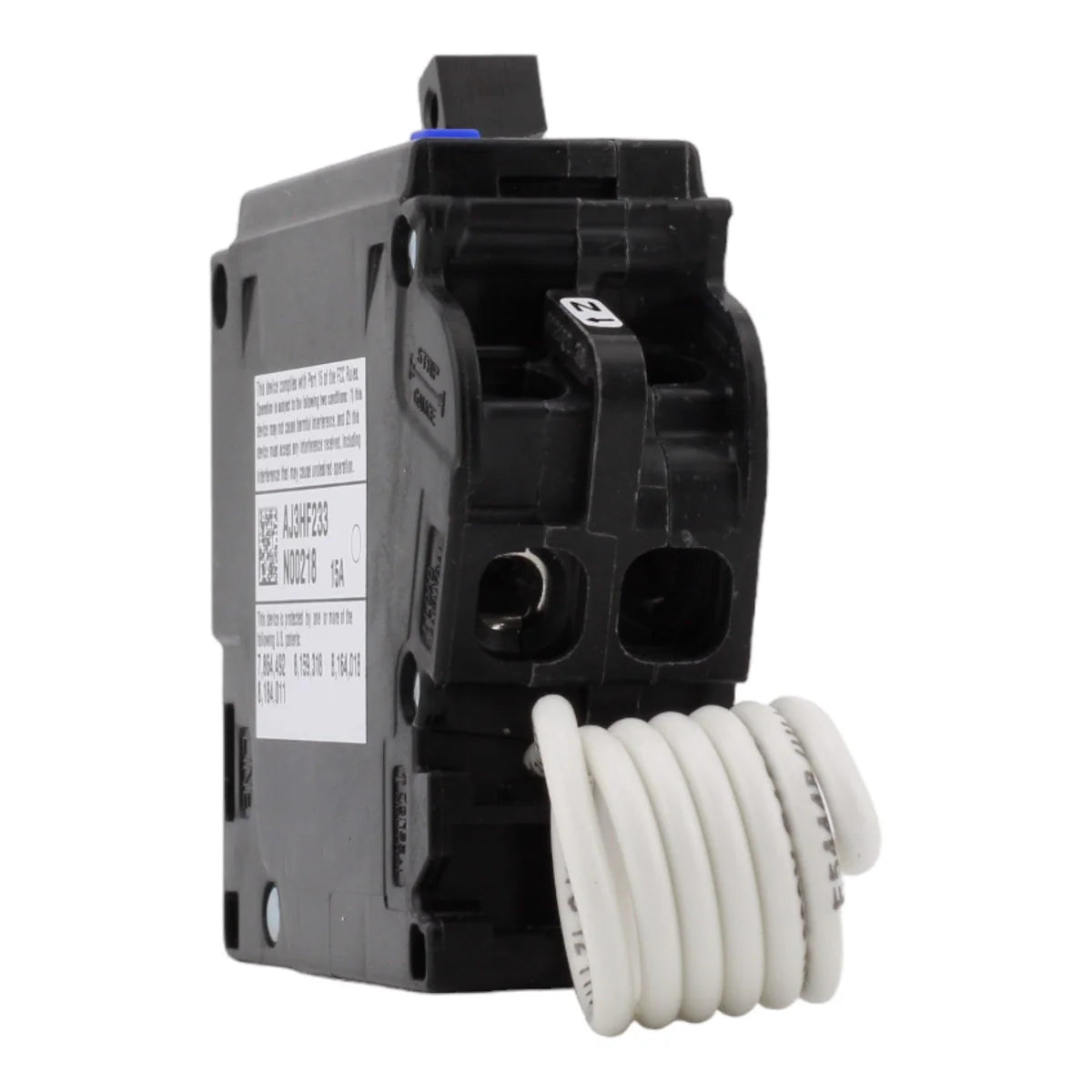

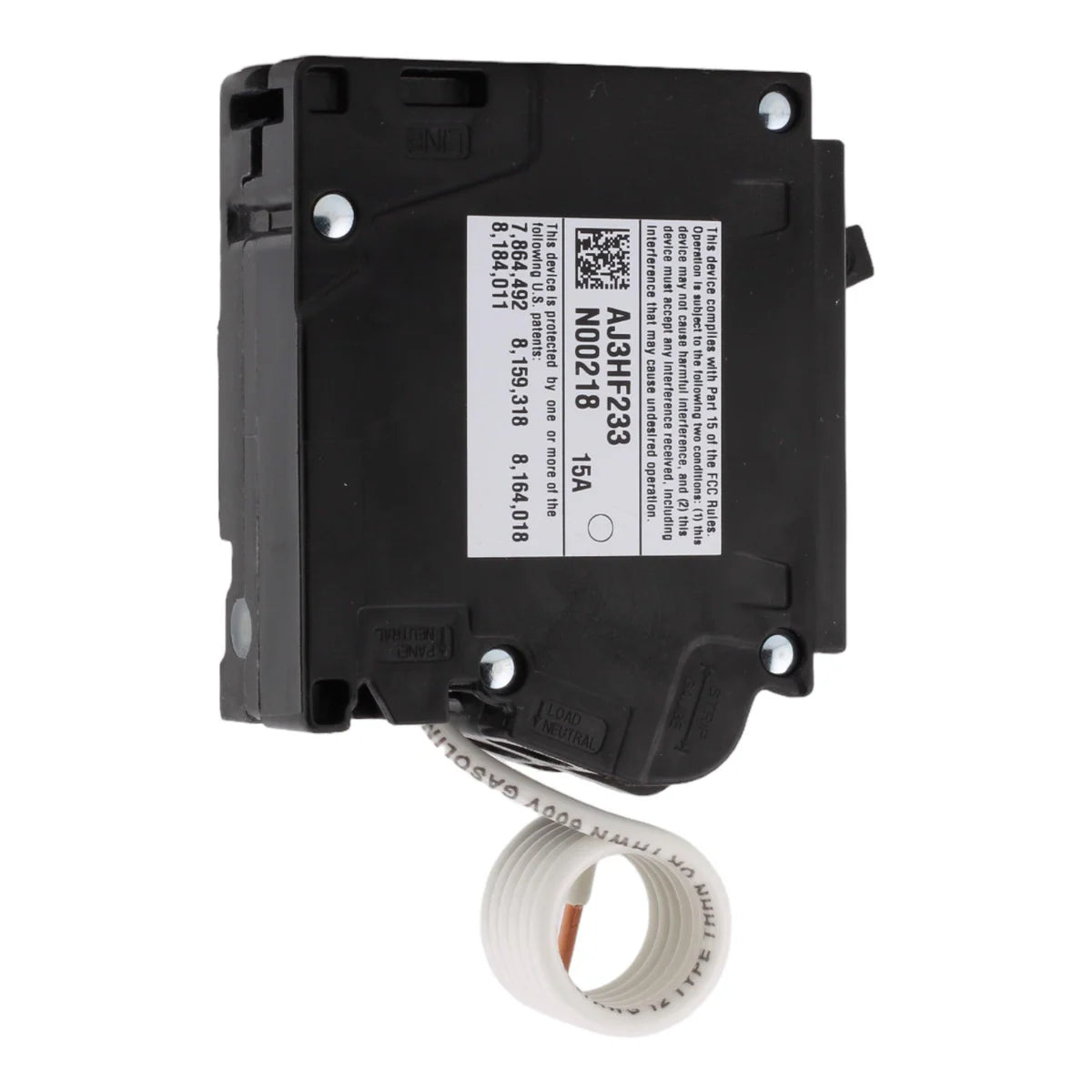

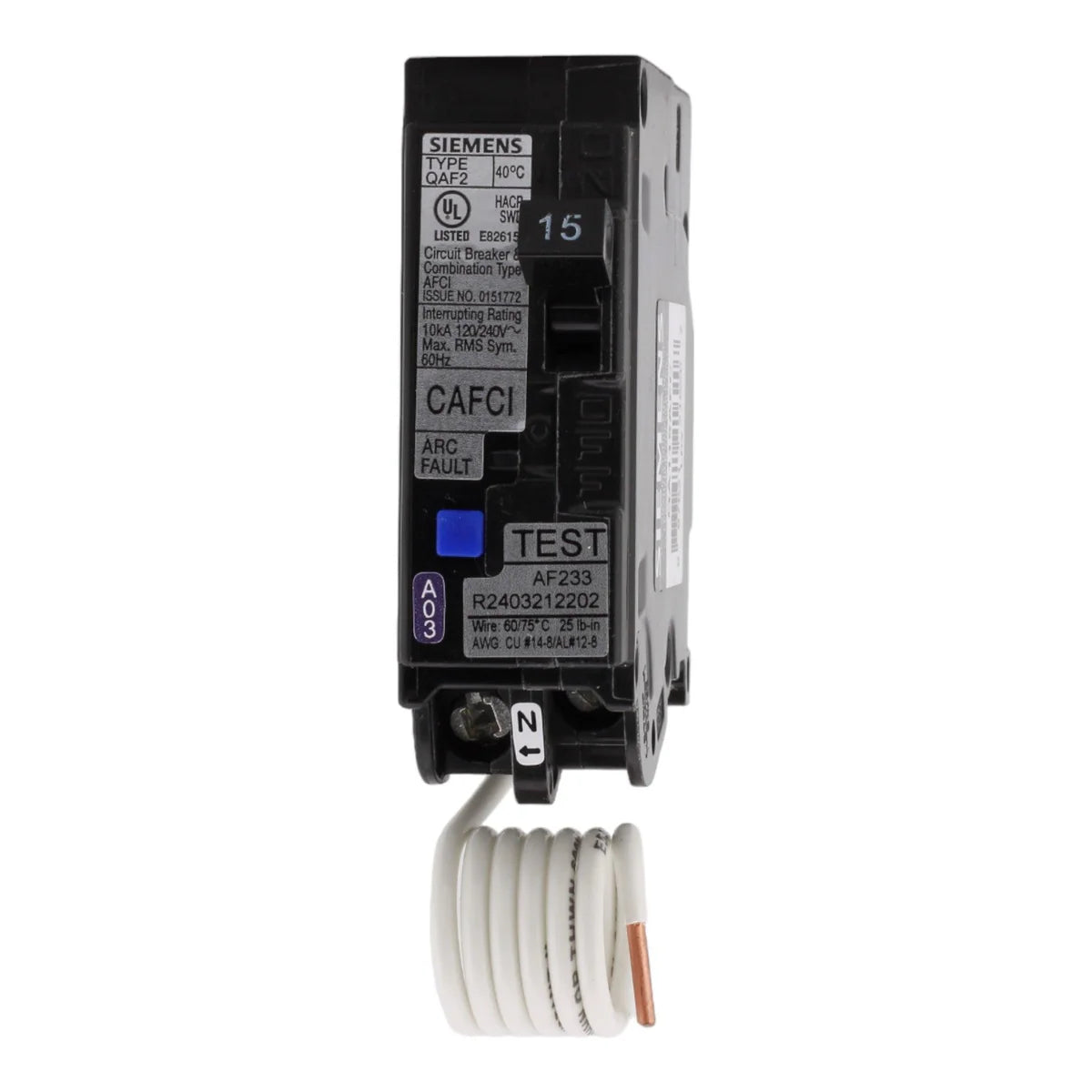

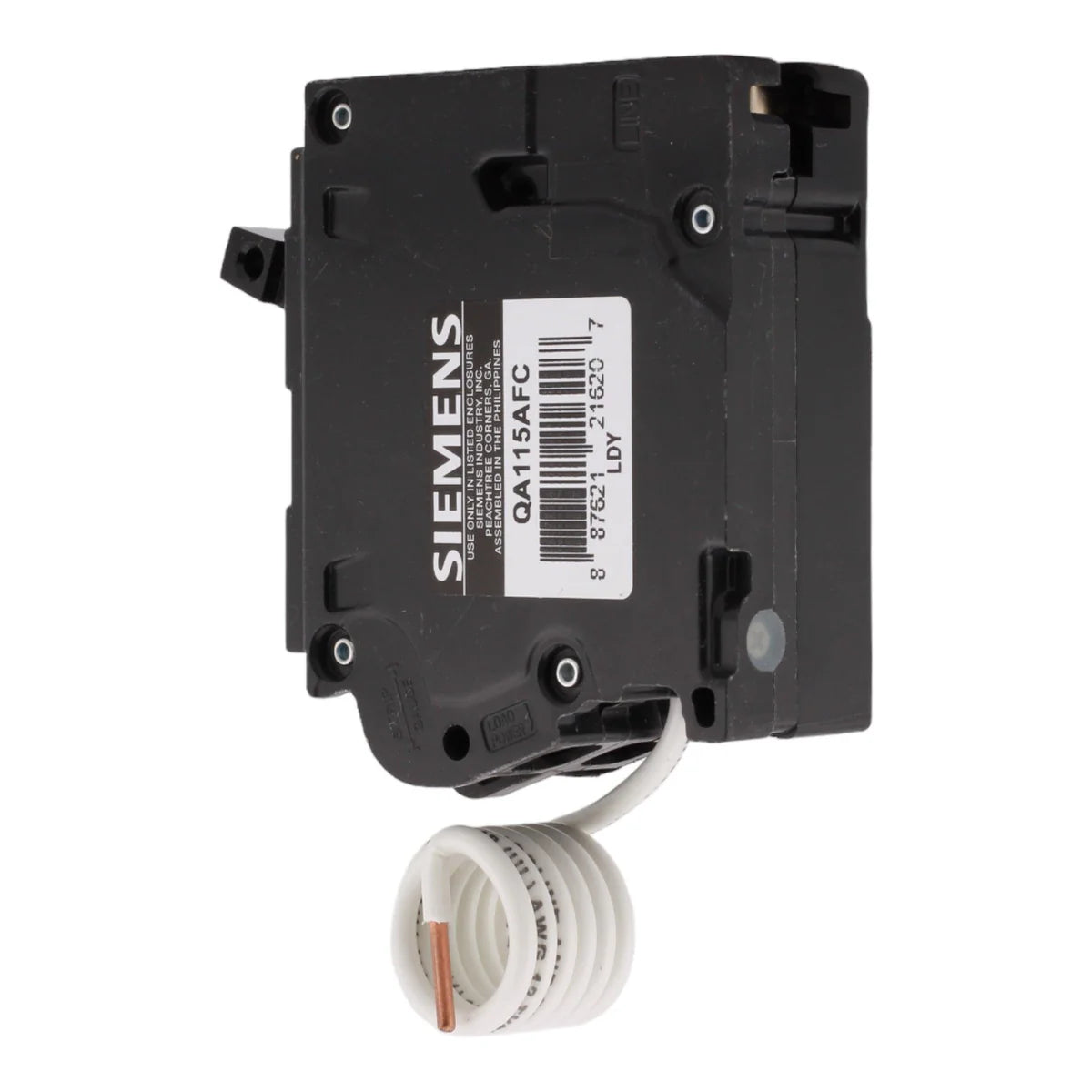

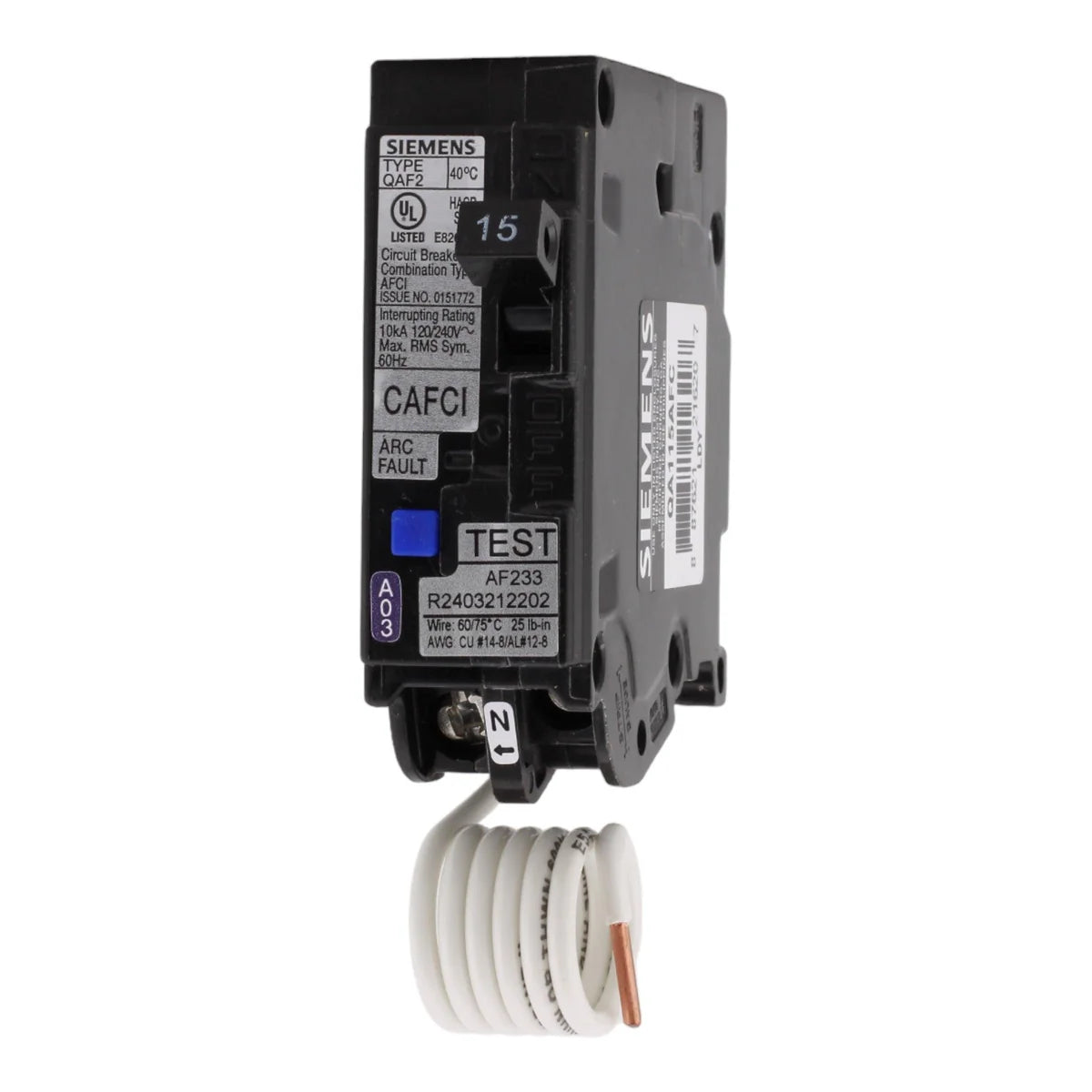

Siemens QA115AFC 15A 1-Pole Combination AFCI Pigtail Neutral Circuit Breaker – 120V
Couldn't load pickup availability
Ask an expert
The Siemens QA115AFC 15 Amp single-pole combination AFCI circuit breaker is engineered to provide advanced arc-fault protection for 120V residential branch circuits. Designed for use in Siemens load centers, this breaker helps reduce the risk of electrical fires by detecting both parallel and series arc faults and automatically disconnecting power when a hazardous condition is identified.
With a plug-in mounting design and pigtail neutral connection, it offers reliable performance and straightforward installation. UL Listed and rated for HACR and SWD applications, this breaker delivers dependable protection for modern residential electrical systems.
Voltage and Ratings
- Current Rating: 15 Amps
- Voltage Rating: 120 Volts AC
- Interrupting Capacity: 10 kAIC
- Frequency: 50/60 Hz
Key Specifications
- Breaker Type: Combination Arc-Fault Circuit Interrupter (AFCI)
- Number of Poles: 1-Pole
- Mounting Type: Plug-In
- Neutral Type: Pigtail Neutral
- Product Series: QAF2N
- Application: Residential branch circuit protection
- Compatible Load Centers: Siemens plug-in load centers
Technical Specifications
- Trip Type: Thermal-Magnetic
- Wire Size Range: #14–8 AWG
- Terminal Tightening Torque: 20 lb-in
- Connection Type: Pigtail neutral lead
- Interrupt Rating: 10 kAIC
- Certifications: UL Listed
- Ratings: HACR Rated, SWD Rated
Product Data
- Manufacturer: Siemens
- Brand: Siemens
- Model Number: QA115AFC
- UPC: 887621216207
- Dimensions:
- Height: 3.0 in
- Width: 1.0 in
- Depth: 3.0 in
- Weight: 0.4 lbs
- Type Circuit Breakers
- Vendor Siemens
- Brand Siemens
