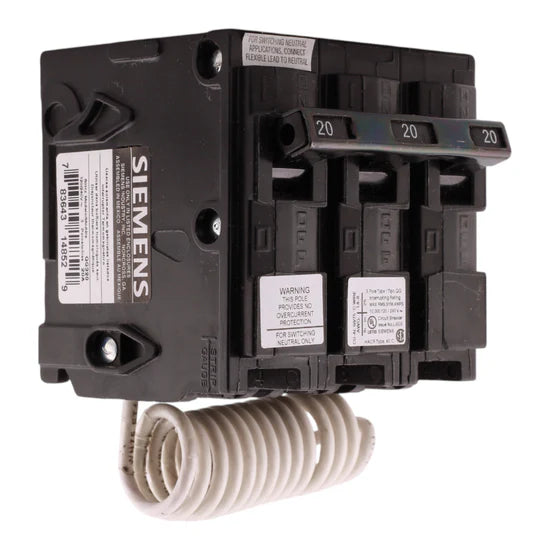

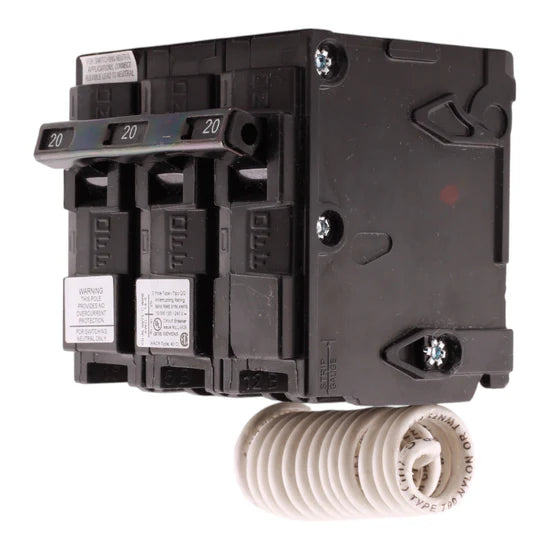

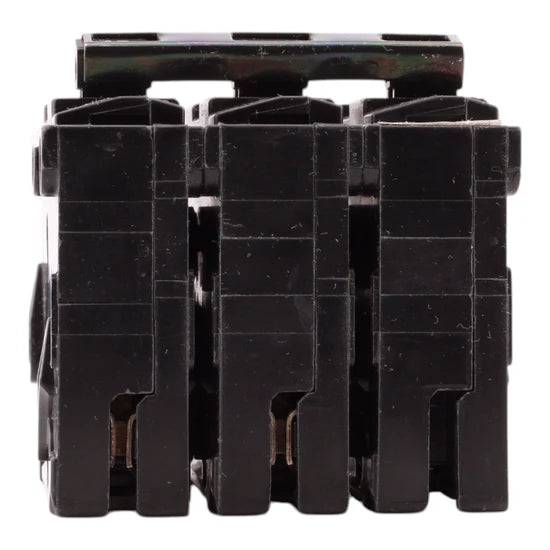

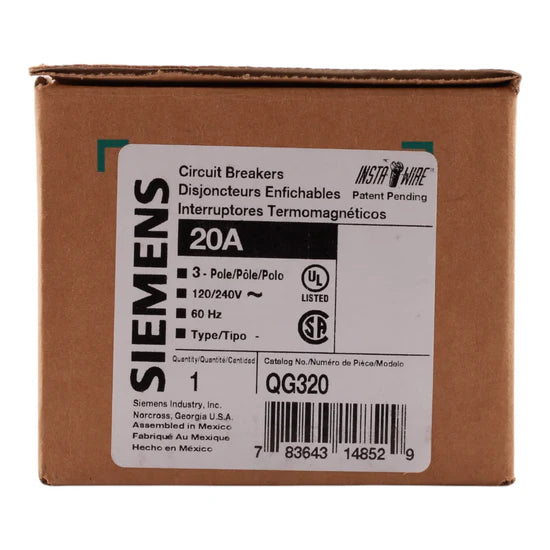

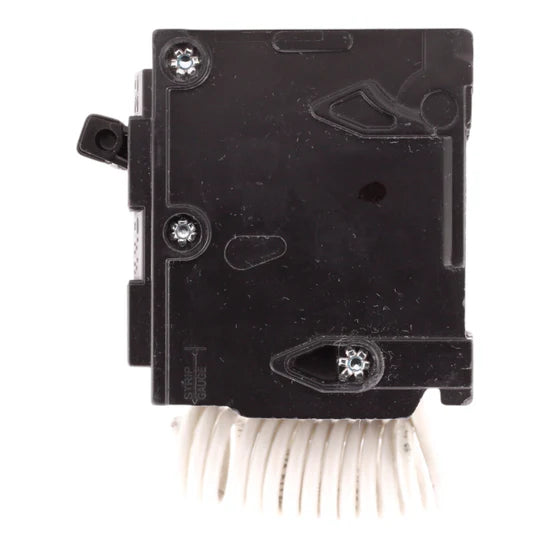

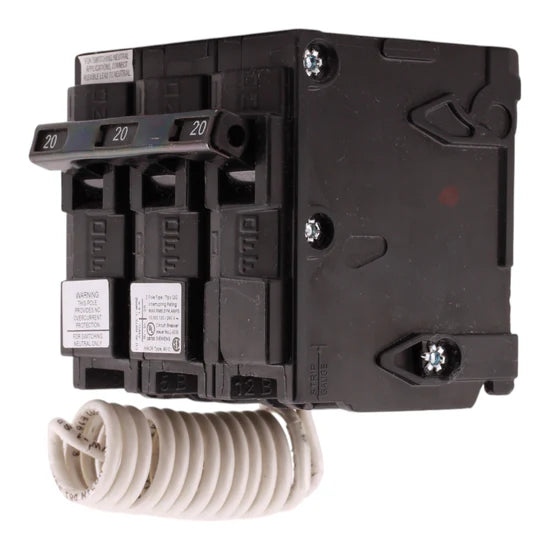

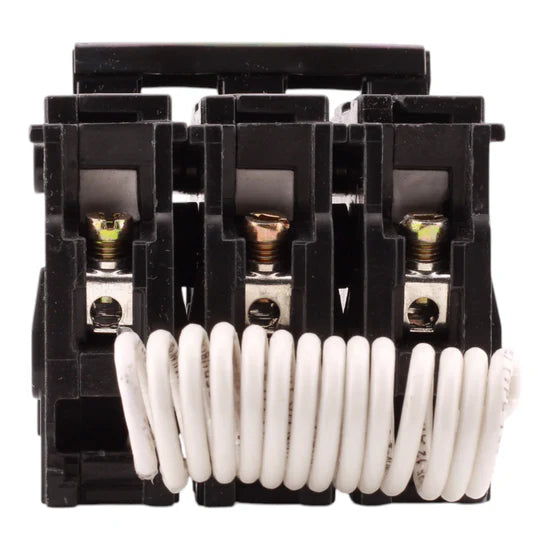

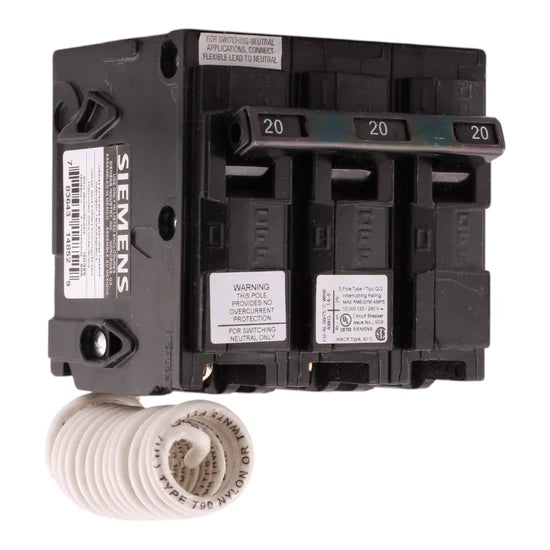

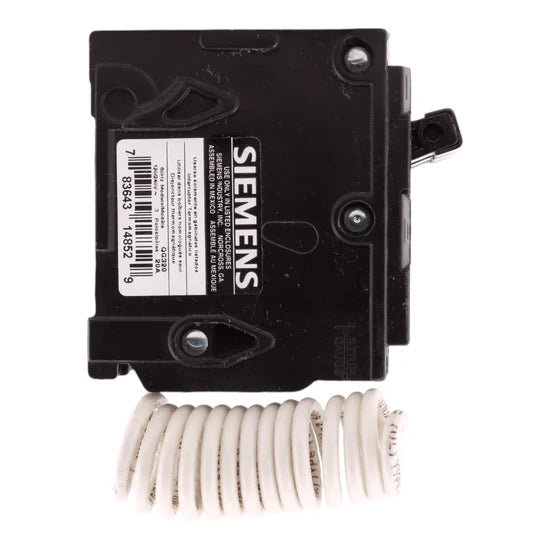

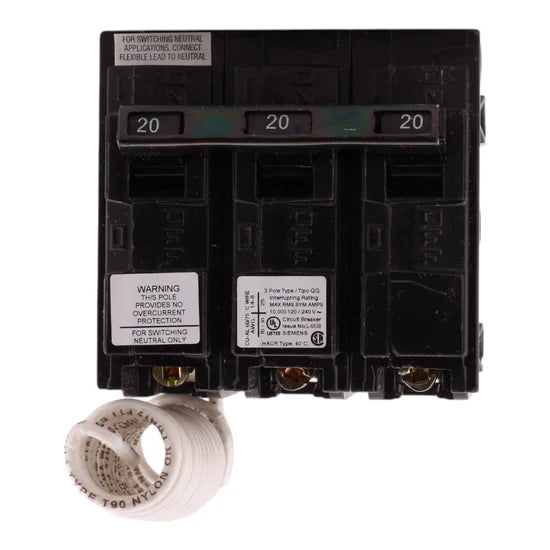

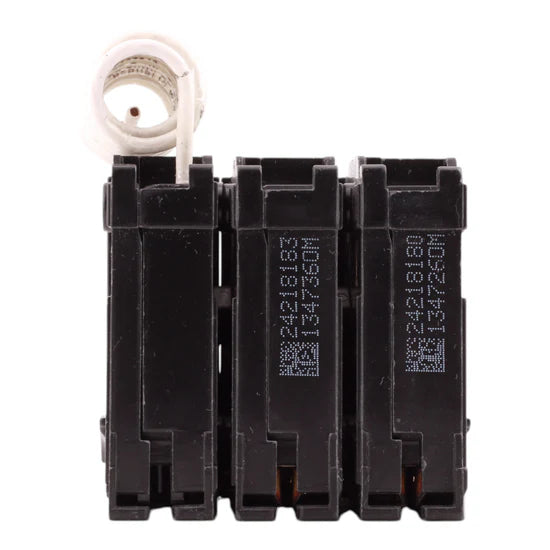

Siemens QG320 20A 3-Pole Switching Neutral Breaker – Plug-In – 120/240V

The Siemens QG320 switching neutral circuit breaker provides reliable 20A, 3-pole protection for 120/240V circuits in Siemens loadcenters. With thermal-magnetic trip and a 10kA interrupt rating, it ensures enhanced safety and dependable performance for residential and commercial electrical distribution applications.

Voltage and Rating

• Amperage: 20 Amps
• Poles: 3-Pole
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Switching Neutral Circuit Breaker
• Mounting Type: Plug-In
• Connection Terminals: Switching Neutral
• Wire Size Range: (1) #14–8 AWG, (2) #14–10 AWG Cu/Al
• Application: Residential and commercial branch circuit protection

Technical Specifications

• Dimensions: Height: 3.94 in, Width: 4.72 in, Depth: 3.94 in
• Weight: 1.168 lbs
• Tightening Torque: 35.4 lb-in
• Certifications: UL Listed

Product Data

• • Manufacturer: Siemens
  • Brand: Siemens
  • Model Number: QG320
  • UPC: 783643148529
