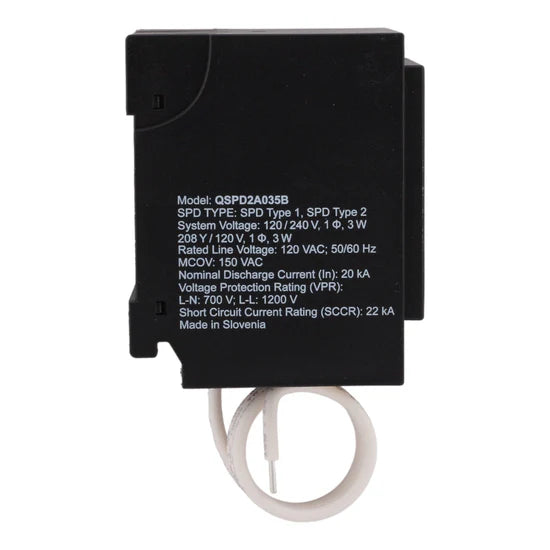

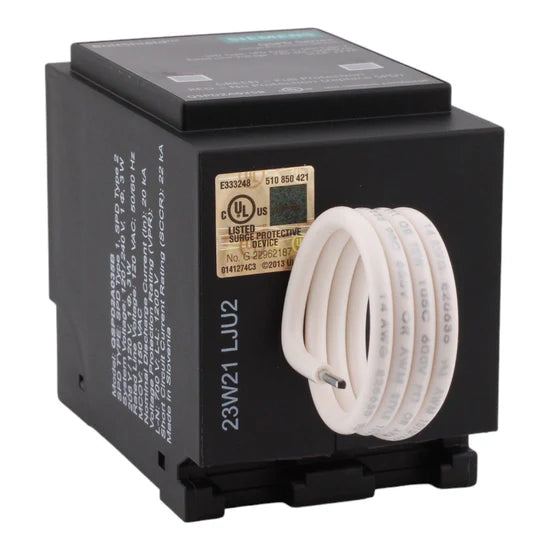

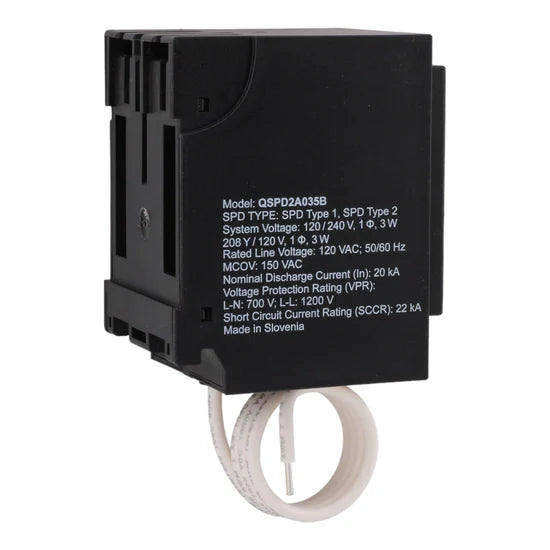

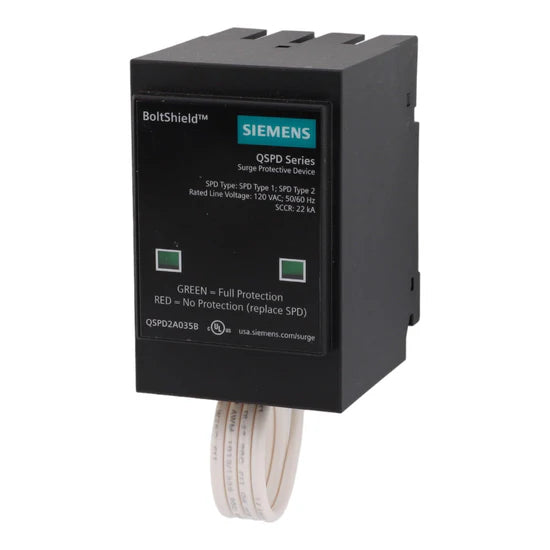

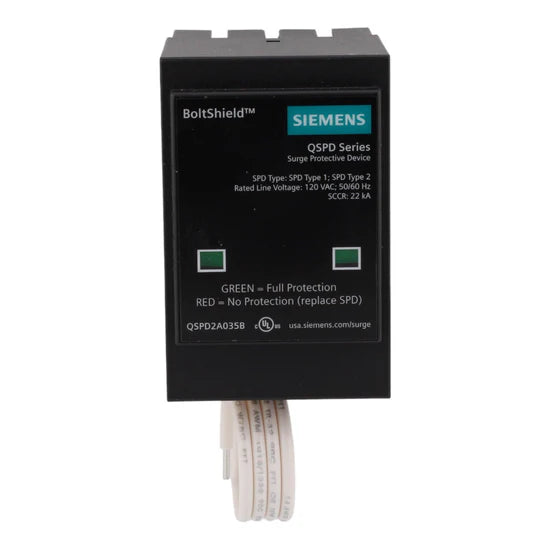

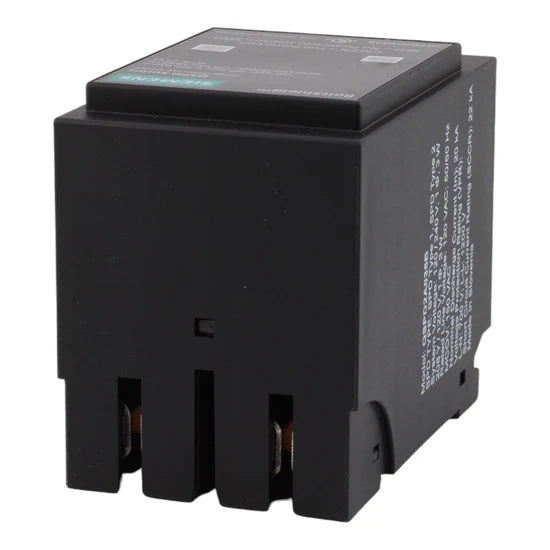

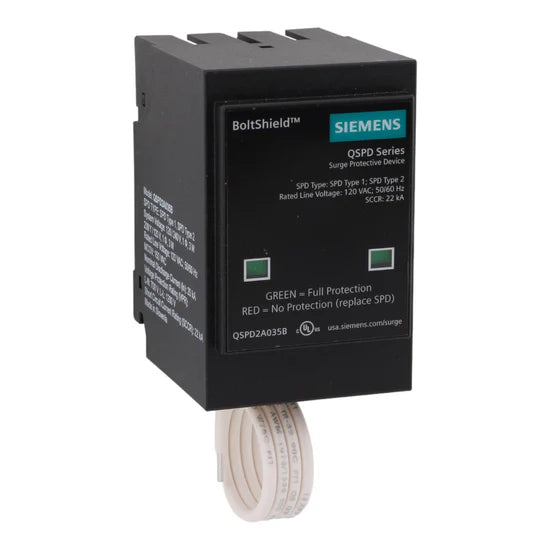

Siemens QSPD2A035B 35kA 2-Pole Surge Protective Device – Hardwired – 120/240V

The Siemens QSPD2A035B is a Type 1 Surge Protective Device (SPD) designed to protect residential electrical systems from transient voltage surges caused by lightning strikes, utility switching, and other power disturbances. Rated for 35kA per phase, this hardwired SPD provides reliable whole-panel protection when installed at the service entrance or load center.

Voltage and Rating

• Voltage Rating: 120/240 Volts AC
• Surge Current Capacity: 35 kA per phase
• Nominal Discharge Current (In): 20 kA
• Short-Circuit Current Rating (SCCR): 22 kA

Key Specifications

• Device Type: Surge Protective Device (SPD), Type 1
• Number of Poles: 2-Pole
• Connection Type: Hardwired
• Mounting Type: Hardwired Installation
• Application: Residential service entrance or panel protection

Technical Specifications

• Net Weight: 0.573 lb

Certifications

• UL 1449 Type 1 Listed
• CSA Approved

Product Data

• • Manufacturer / Brand: Siemens
  • Model Number: QSPD2A035B
  • UPC: 804766954863
