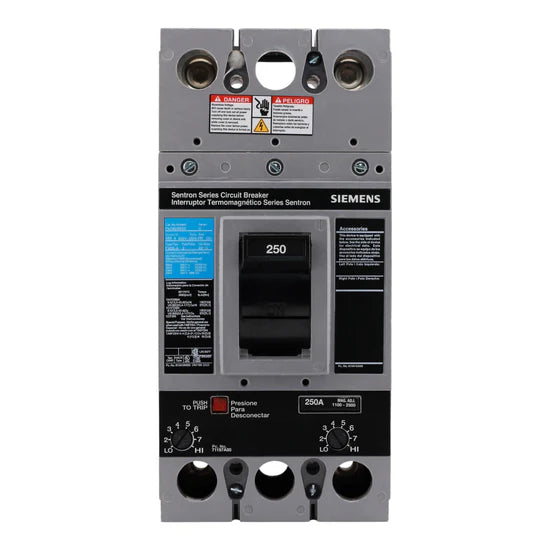

Siemens Sentron FXD62B250 Circuit Breaker Thermal-Magnetic Molded Case 250A 2P 600V

The Siemens Sentron FXD62B250 is a 250 Amp, 2-Pole thermal-magnetic molded case circuit breaker designed for dependable overcurrent protection in commercial and industrial power distribution systems. With a high interrupt rating and rugged construction, it ensures safe operation in 600V applications.

Electrical Ratings

• Amperage: 250 Amps
• Voltage Rating: 600 Volts AC
• Number of Poles: 2-Pole
• Interrupt Rating: 22 kAIC at 600V (35 kAIC at 480V)

Design & Construction

• Breaker Type: Thermal-Magnetic Molded Case Circuit Breaker
• Mounting Mode: Bolt-on
• Connections Terminals: Line/load lugs (no lugs installed)

Physical Specifications

• Height: 9.5 inches
• Width: 4.5 inches
• Depth: 4.0 inches
• Weight: 7.101 lbs

Certifications

• UL Listed

Product Information

• Manufacturer: Siemens
• Brand: Siemens
• Product Range: Sentron (for Siemens Sentron switchboards and panelboards)
• Model Number: FXD62B250
• UPC: 783643211186
