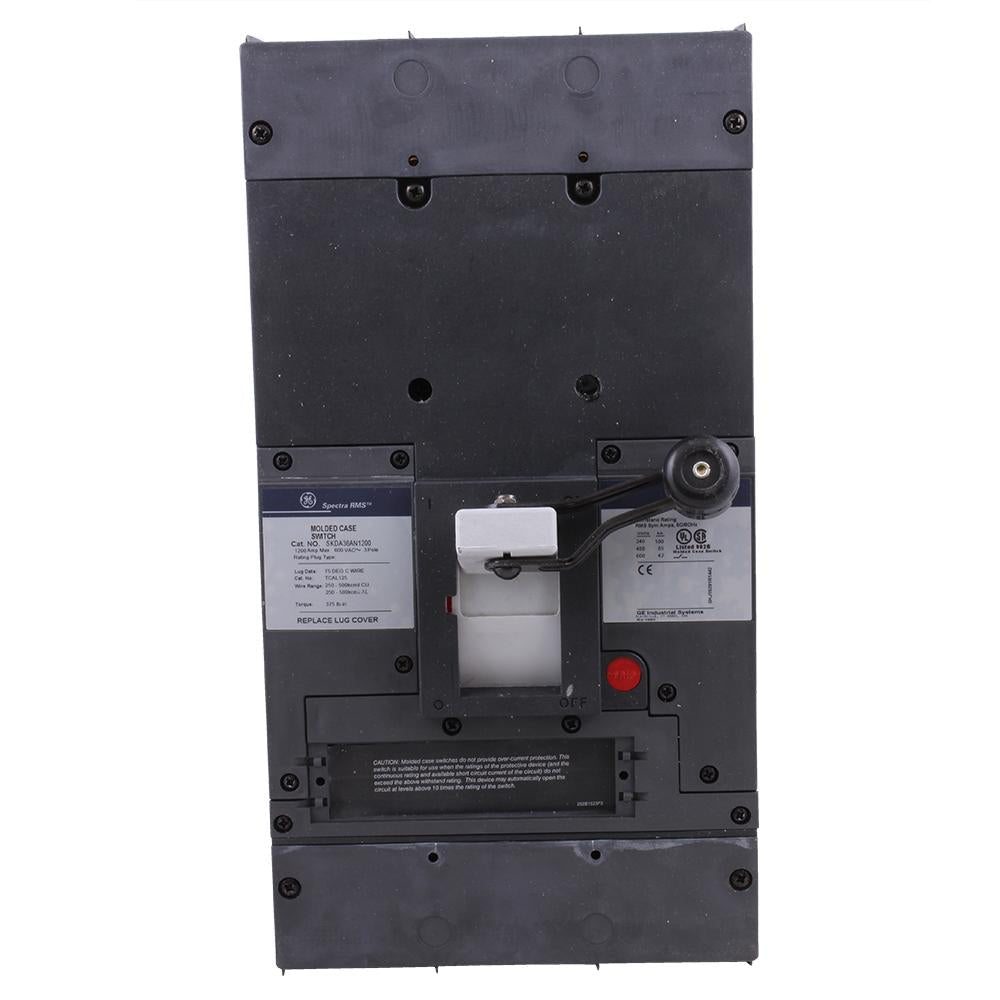

GE SKDA36AN1200 1200 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Feed-Thru – Spectra Series

The GE SKDA36AN1200 is a 1200 Amp, 3-pole, 3-phase non-automatic switch from the General Electric Spectra Series, Type SKDA, with an SK1200 frame. It is rated for 600 V with a high interrupting capacity of 65 kA at 480 V. The unit has no overcurrent protection, features a non-interchangeable trip unit, and is suitable for reverse-fed applications. It includes line & load-side lug terminals and is UL listed.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Non-Automatic Molded Case Switch
• Series: Spectra
• Type: SKDA
• Frame: SK1200
• Catalog Number / MPN: SKDA36AN1200
• Primary Rating: 1200 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA@480 V
• Interrupting Capacity: High
• Overcurrent Protection: NA – No Overcurrent Protection
• Trip Unit: Non-Interchangeable
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Application: Suitable for Reverse-Fed Applications
• Automatic Operation: Non-Automatic Switch

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number / MPN: SKDA36AN1200
• Series: Spectra
• Type: SKDA
• Frame: SK1200
• Current Rating: 1200 A
• Pole Count: 3 Pole
• Product Type: Non-Automatic Molded Case Switch
• Trip Unit: Non-Interchangeable
• Overcurrent Protection: No Overcurrent Protection
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:783164211832

Compatibility

The GE SKDA36AN1200 is designed for compatible General Electric Spectra Series Type SKDA non-automatic switch and electrical distribution applications, including reverse-fed installations.

Certifications

• UL Listed
