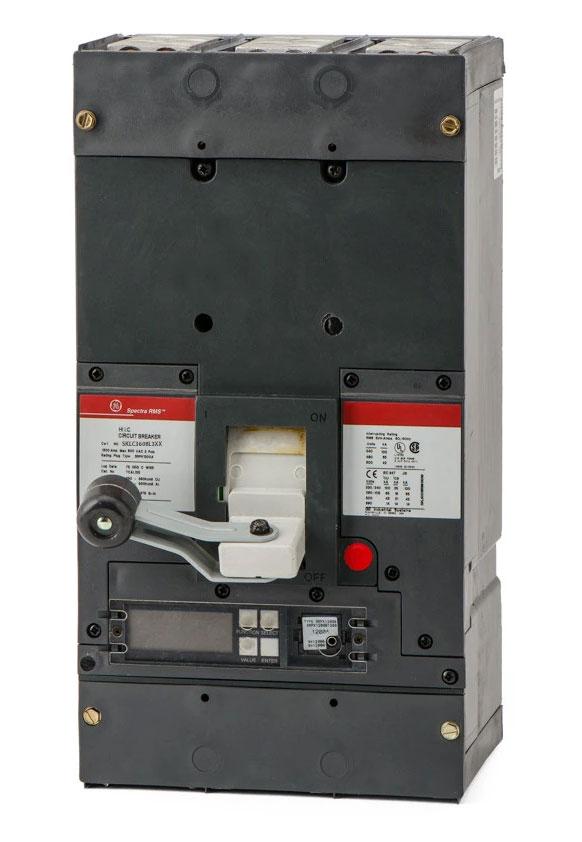

GE SKLC3608L3XX – 800A 3-Pole 600V Spectra RMS Electronic Trip Molded Case Circuit Breaker, 65kA @ 480V

Product Description

The GE SKLC3608L3XX is a high-performance 800 Amp, 3-pole molded case circuit breaker from the Spectra™ RMS family. Equipped with a microEntelliGuard™ electronic trip unit featuring LSI (Long-Time, Short-Time, and Instantaneous) protection, this breaker provides adjustable electronic protection for commercial and industrial power distribution systems.

Designed for 600VAC, 3-phase applications, the SKLC3608L3XX offers a 65kA interrupting rating at 480VAC, making it suitable for demanding electrical installations requiring reliable overcurrent protection. It is UL Listed, reverse-feed capable, and commonly installed in GE Spectra switchboards and panelboards.

Important: Rating plug is NOT included with the breaker and must be purchased separately.

Key Features

• Genuine GE / ABB Spectra™ RMS molded case circuit breaker
• Catalog Number: SKLC3608L3XX
• 800 Amp continuous current rating
• 3-Pole configuration
• 600VAC maximum operating voltage
• Electronic microEntelliGuard™ trip unit
• Adjustable LSI Protection
  • Long-Time Delay
  • Short-Time Delay
  • Instantaneous
• 65kA Interrupting Rating @ 480VAC
• Solid-state electronic protection
• Suitable for reverse-feed applications
• UL Listed
• Bolt-on mounting
• Rating plug not included

Technical Specifications

Manufacturer: General Electric (GE) / ABB

Catalog Number: SKLC3608L3XX

Series: Spectra™ RMS

Frame Type: SK1200

Breaker Type: Electronic Trip Molded Case Circuit Breaker

Poles: 3

Frame Rating: 1200A

Rating Plug: Not Included (Required to establish the breaker's continuous current rating.)

Voltage Rating: 600VAC

Phase: 3 Phase

Frequency: 50/60 Hz

Interrupting Rating:

• 65kA @ 480VAC

Trip Unit: microEntelliGuard™

Trip Functions:

• Long-Time (L)
• Short-Time (S)
• Instantaneous (I)

Ground Fault Protection: No (LSI Model)

Protection Type: Solid State Electronic

Connection Type: Bolt-On

Reverse Feed Rated: Yes

Mounting: Fixed Mounted

Standards: UL Listed, cUL Listed

Approximate Weight: 57 lbs

Compatible Equipment

Compatible with GE / ABB Spectra™ distribution equipment utilizing the SK1200 frame, including:

• GE Spectra™ Switchboards
• GE Spectra™ Power Panelboards
• GE Low Voltage Distribution Equipment designed for SK1200 frame breakers

Note: Always verify frame size, trip unit configuration, and rating plug requirements before installation.

Product Data

Brand: General Electric (GE) / ABB

Model: SKLC3608L3XX

UPC / GTIN: 783164312096

Condition: New, Surplus, or Professionally Reconditioned (depending on inventory)

Country of Manufacture: Varies by production lot

Interchangeability

This breaker is interchangeable with the GE / ABB SKLC3612L3XX when the SKLC3612L3XX is equipped with the appropriate 800A rating plug. Both breakers utilize the SK1200 frame and microEntelliGuard™ interchangeable rating plug system, allowing the continuous ampere rating to be established by the installed rating plug.

Important: This breaker does NOT include a rating plug. A compatible GE / ABB rating plug is required to establish the desired continuous ampere rating (such as 800A).

Why Buy From Us?

• Thoroughly inspected before shipment
• Fast shipping available
• Secure packaging
• Knowledgeable customer support
• Trusted supplier of new, surplus, and obsolete electrical equipment

Keywords: GE SKLC3608L3XX, ABB SKLC3608L3XX, Spectra RMS Breaker, SK1200 Breaker, 1200A Frame Breaker, Electronic Trip Breaker, microEntelliGuard Breaker, LSI Circuit Breaker, 600V Circuit Breaker, 3 Pole Circuit Breaker, Industrial Molded Case Circuit Breaker.

Important: This breaker does not include a rating plug. A compatible GE/ABB SK1200 rating plug is required to establish the desired continuous ampere rating (such as 800A).
