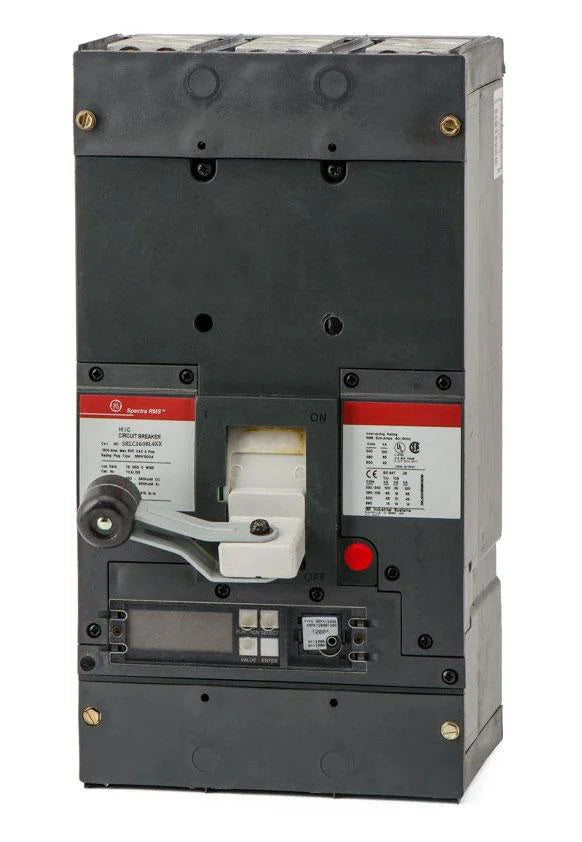

GE SKLC3608L4XX Molded Case Circuit Breaker –Spectra RMS Series

The GE SKLC3608L4XX is a Spectra RMS molded case circuit breaker associated with the GE Spectra RMS family and equipped with a microEntelliGuard™ trip unit for advanced system protection, metering, and communication applications.

The available product information identifies the breaker as associated with the SK(M)800 frame family, with a 65kAIC interrupting rating, 80% rating, and LSI protection. The microEntelliGuard™ trip system provides flexible protection and coordination features, including adjustable time-current curves and optional advanced protection, metering, communication, and monitoring functions.

Specific current rating, pole configuration, voltage rating, mounting configuration, and terminal configuration for the SKLC3608L4XX were not provided and should be verified before installation.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Spectra RMS
• Catalog No.: SKLC3608L4XX
• Trip Unit: microEntelliGuard™
• Frame Family: SK(M)800
• Interrupting Rating: 65kAIC
• Rating: 80%
• Protection Functions: Long-Time, Short-Time, Instantaneous (LSI)
• Time-Current Curves: Fully Adjustable
• Long-Time Curve Options: Three Long-Time Curve Shapes
• Long-Time Curve Types: MVT I²t, CB, and Fuse I⁴t
• Ground Fault Alarm: Available
• Reduced Energy Let-Through (RELT): Available
• Zone Selective Interlocking: Available for ST/GF/INST
• Neutral Protection: Available
• Waveform Capture: Available
• Programmable Output Contacts: Available
• Advanced Metering: Available
• Direct Communications: Modbus
• Monitoring Software Compatibility: EnerVista Viewpoint Power System Monitoring Software
• Rating Plug: Universal Spectra RMS Rating Plug
• Test Kit: Common EntelliGuard TU Test Kit
• Internal Accessories: Common Across Spectra RMS MCCB Family
• Current Rating: Not specified
• Number of Poles: Not specified
• Phase: Not specified
• Voltage Rating: Not specified
• Mounting Type: Not specified
• Connection Type: Not specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SKLC3608L4XX
• Catalog Number: SKLC3608L4XX
• Model: SKLC3608L4XX
• Product Family: GE Spectra RMS Molded Case Circuit Breakers
• Series: Spectra RMS
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Frame Family: SK(M)800
• Trip Unit: microEntelliGuard™
• Protection Configuration: LSI
• Interrupting Rating: 65kAIC
• Rating: 80%
• UPC:783164315240

Compatibility:

Designed for use within compatible GE Spectra RMS electrical distribution equipment utilizing the SK(M)800 frame family and microEntelliGuard™ trip-unit platform.

The breaker supports advanced protection, metering, communication, and coordination features, including adjustable time-current curves, optional ground-fault alarm, RELT, zone selective interlocking, neutral protection, waveform capture, programmable outputs, advanced metering, and direct Modbus communications.

Always verify the specific breaker frame, panelboard or switchboard model, rating plug, system voltage, available fault current, pole configuration, mounting arrangement, terminal requirements, trip-unit configuration, and applicable accessories before installation.

Certifications:

• Spectra RMS Series
• microEntelliGuard™ Trip Unit
• 65kAIC Interrupting Rating
• 80% Rating
• LSI Protection
• Adjustable Time-Current Curves
• Universal Rating Plug Platform
• Modbus Communications
• Advanced Metering
