GE SKLC3612L3XX 1200A 3-Pole 600V Spectra RMS Circuit Breaker Electronic Trip LSI 65kA@480V 42kA@600V

Product Description

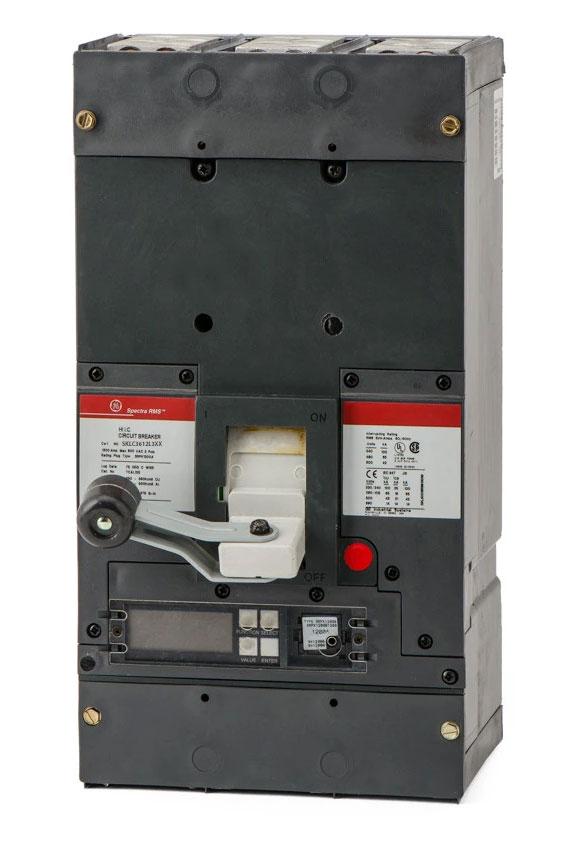

The GE SKLC3612L3XX is a 1200 Amp, 3-Pole Spectra RMS molded case circuit breaker designed for commercial, industrial, and critical power distribution systems. This breaker features an electronic trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection functions, providing advanced system coordination and reliable fault protection. The SKLC frame is commonly used in GE Spectra switchboards, panelboards, and switchgear applications.

Key Features

• Catalog Number: SKLC3612L3XX
• Manufacturer: GE Industrial Solutions
• Amperage: 1200 Amp
• Poles: 3-Pole
• Voltage Rating: 600VAC
• Spectra RMS Series
• Electronic Trip Unit
• LSI Protection Functions
• Adjustable Long-Time Protection
• Adjustable Short-Time Protection
• Adjustable Instantaneous Protection
• Unit Mount Design
• UL 489 Listed
• ANSI Certified

Interrupting Ratings (KAIC)

• 100kA @ 240VAC
• 65kA @ 480VAC
• 42kA @ 600VAC

Technical Specifications

• Manufacturer: GE Industrial Solutions
• Catalog Number: SKLC3612L3XX
• Series: Spectra RMS
• Frame Size: SKLC
• Type: Molded Case Circuit Breaker
• Amperage: 1200A
• Poles: 3
• Voltage Rating: 600VAC
• Frequency: 50/60 Hz
• Trip Unit: Electronic Trip Unit
• Protection Functions:
  • Long-Time (L)
  • Short-Time (S)
  • Instantaneous (I)
• Mounting Style: Unit Mount
• Connection Type: Line and Load Terminals
• Standards:
  • UL 489 Listed
  • ANSI Certified

Product Data

• Brand: GE
• Manufacturer: GE Industrial Solutions
• Model: SKLC3612L3XX
• Series: Spectra RMS
• Frame: SKLC
• Type: Electronic Trip Molded Case Circuit Breaker
• Protection: LSI (Long-Time, Short-Time, Instantaneous)
• Trip Unit: MicroVersaTrip Plus / MicroEntelliGuard Electronic Trip
• Mounting: Unit Mount
• Connection: Line and Load Terminals
• Condition: New / Reconditioned
• Phase: 3 Phase
• Rated Current: 1200A
• Rated Voltage: 600VAC
• UPC: 783164379433
• GTIN: 00783164379433
• Weight: Approximately 45 lbs
• Country of Manufacture: United States

Compatible Equipment

• GE Spectra Panelboards
• GE Spectra Switchboards
• GE Spectra Switchgear
• GE Distribution Equipment Utilizing SKLC Frames
• OEM Power Distribution Assemblies

Applications

• Commercial Buildings
• Industrial Facilities
• Manufacturing Plants
• Data Centers
• Critical Power Systems
• Utility Distribution Equipment

Replacement Information

• GE Spectra RMS SKLC Frame Circuit Breaker
• Direct replacement should match catalog number SKLC3612L3XX
• LSI Electronic Trip Configuration
• Match trip settings, frame size, and terminal configuration when replacing existing equipment
