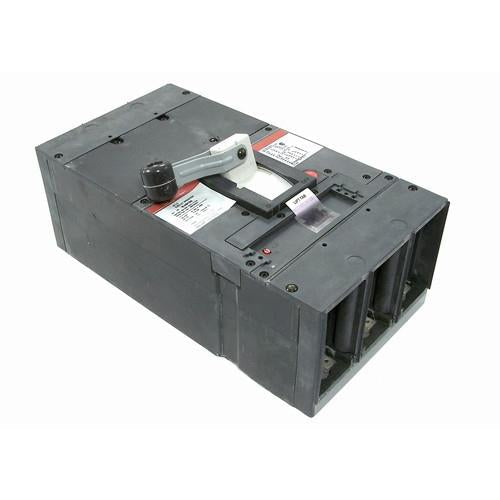

GE SKLL36AT0800 800 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Bolt-On – Spectra Series

The General Electric SKLL36AT0800 is an 800 Amp, 3-pole, 3-phase molded case circuit breaker from the GE Spectra Series Type SKLL. It is rated for 600 V with a 65 kA interrupting capacity at 480 V and features high interrupting capacity and current-limiting performance. The breaker is 100% rated, designed for bolt-on mounting, suitable for reverse-fed applications, and includes an interchangeable RMS solid-state electronic trip unit with LSI protection functions. Lugs are not included.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: Spectra
• Type: SKLL
• Catalog Number / MPN: SKLL36AT0800
• Primary Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: High
• Current Limiting: Yes
• Rated Current: 100% Rated
• Trip Type: Solid-State Electronic
• Trip Unit: Interchangeable RMS
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• Connection / Mounting: Bolt-On
• Terminals: Lugs Not Included
• Reverse Feed: Suitable for Reverse-Fed Applications

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: SKLL36AT0800
• Series: Spectra
• Type: SKLL
• Current Rating: 800 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Trip Unit: Interchangeable RMS
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• Current Rating: 100% Rated
• UPC: 783164068429

Compatibility

The GE SKLL36AT0800 is designed for compatible GE Spectra Series Type SKLL electrical distribution applications. It is suitable for reverse-fed applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, trip unit requirements, and terminal requirements before installation.

Certifications

• UL Listed
