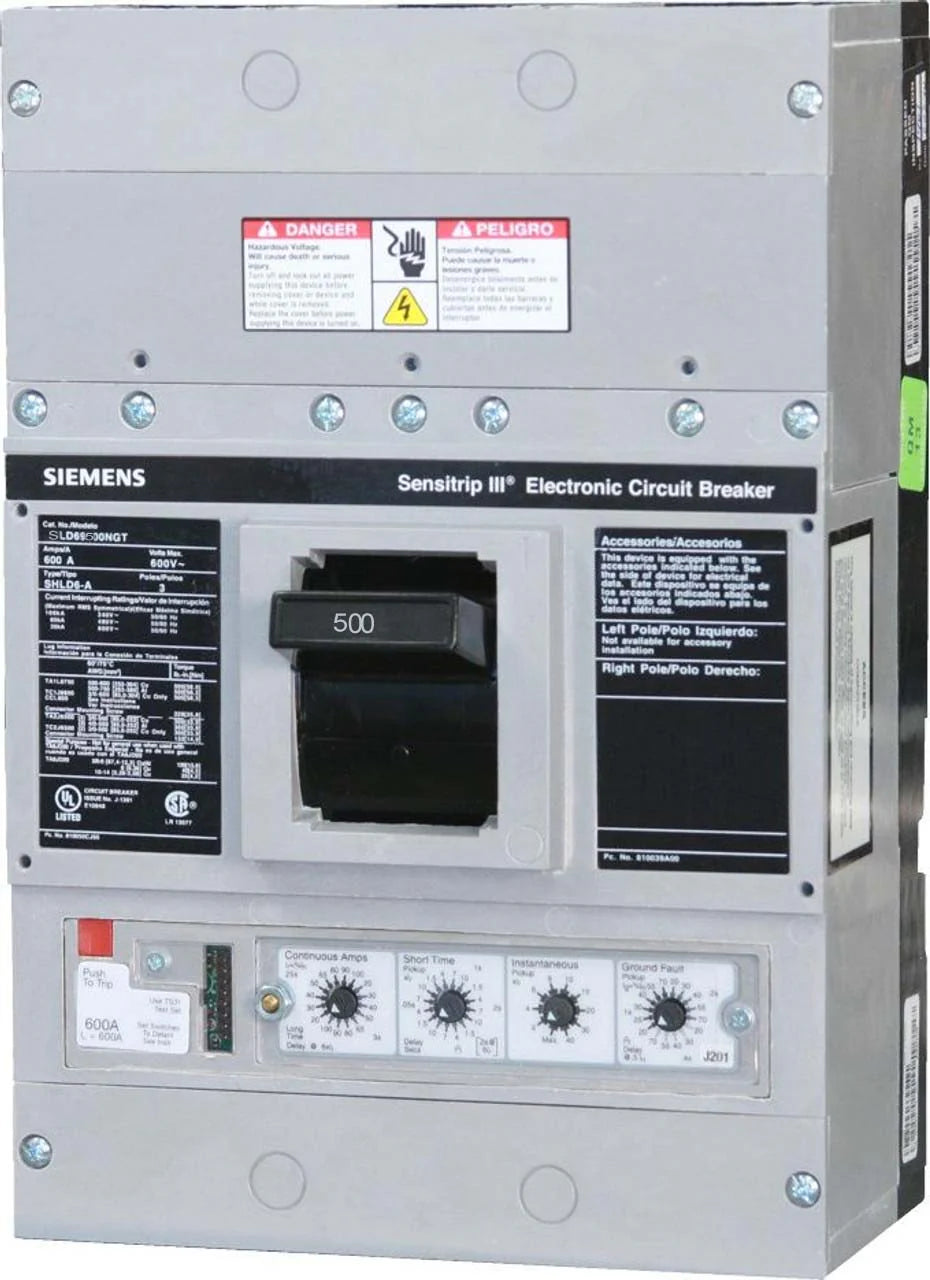

Siemens SLD69500NGT Molded Case Circuit Breaker – 500A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Sentron SLD Series

The Siemens SLD69500NGT is a 500A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Type SLD Series. It features digital solid-state electronic protection with LSIG trip functions, providing Long-Time, Short-Time, Instantaneous, and Ground Fault protection.

The SLD69500NGT is rated for 600V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration, is acceptable for reverse-connection applications, and is supplied without lugs.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: Sentron
• Type: SLD
• Catalog No.: SLD69500NGT
• Current Rating: 500A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Digital Solid-State Electronic
• Trip Functions: Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG)
• Mounting Type: Bolt-On
• Lugs: Not Included
• Reverse Connection: Acceptable for Reverse-Connection Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SLD69500NGT
• Catalog Number: SLD69500NGT
• Model: SLD69500NGT
• Product Family: Siemens Sentron Circuit Breakers
• Series: Sentron
• Type: SLD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 500A
• Trip Configuration: LSIG
• Mounting: Bolt-On
• UPC:783643217355

Compatibility:

Designed for use with compatible Siemens Sentron Type SLD electrical distribution equipment that accepts SLD Series molded case circuit breakers. The SLD69500NGT provides 500A, 3-pole digital solid-state protection for compatible 600V electrical distribution applications.

The breaker is supplied without lugs and uses a bolt-on mounting configuration. It is also acceptable for reverse-connection applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, lug selection, mounting arrangement, reverse-connection requirements, and installation specifications before installation.

Certifications:

• Siemens Sentron SLD Series
• 500A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Digital Solid-State Electronic Protection
• Long-Time Protection
• Short-Time Protection
• Instantaneous Protection
• Ground Fault Protection
• LSIG Trip Functions
• Bolt-On Mounting
• Lugs Not Included
• Suitable for Reverse-Connection Applications
