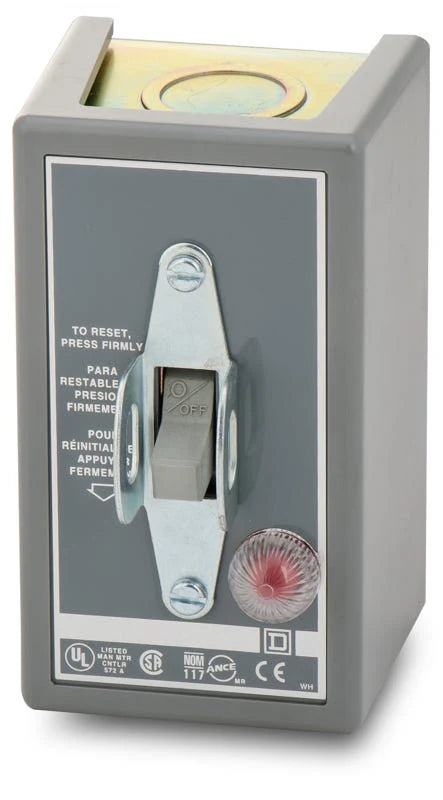

Square D 2510FG1P Motor Starter – Class 2510F – 16A – 1 Pole – 277VAC – Surface Mount – Thermal Protection

In stock
SKU: 2510FG1P GTIN/UPC: 785901553946
$126.00
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D 2510FG1P is a Class 2510F manual motor starter designed for use in motor control applications. Manufactured by Square D, it provides reliable on/off motor control and overload protection for single-phase electrical systems in commercial and industrial environments.

This 1-pole, 16A starter is rated for 277VAC operation and features a thermal protection mechanism to help safeguard connected motors from overload conditions. Its surface-mount design and screw clamp terminals allow for straightforward installation in control panels and motor control setups.

Specifications

  • Brand: Square D
  • Manufacturer: Square D
  • Part Number: 2510FG1P
  • Series: 2510F
  • Category: Motor Starter / Motor Control
  • Configuration: 1 Pole
  • Phase: 1 Phase
  • Current Rating: 16A
  • Voltage Rating: 277VAC
  • Mounting Type: Surface Mount
  • Protection Type: Thermal
  • Terminal Type: Screw Clamp
  • NEMA Rating: 1
  • NEMA Size: 1
  • Action: Non-Reversing
  • Actuator Type: Toggle Switch

Construction

  • Heavy-duty motor control starter assembly
  • Thermally protected switching mechanism
  • Screw clamp terminal connections for secure wiring
  • Durable surface-mount enclosure design
  • Industrial-grade mechanical switching system

Dimensions

  • Length: 2.75 in
  • Width: 2.44 in
  • Height: 4.25 in

Wiring

  • Wire Gauge: AWG 14 to AWG 12 (Copper)

Applications

  • Industrial motor control systems
  • Commercial HVAC and machinery control
  • Light-duty motor starting applications
  • Pump and small motor switching
  • Class 2510 motor control systems

Certifications & Approvals

  • UL Listed
  • CSA Approved
  • Designed for Class 2510 motor control systems
  • Type Motor Starter
  • Vendor Square D
  • Brand Square D
