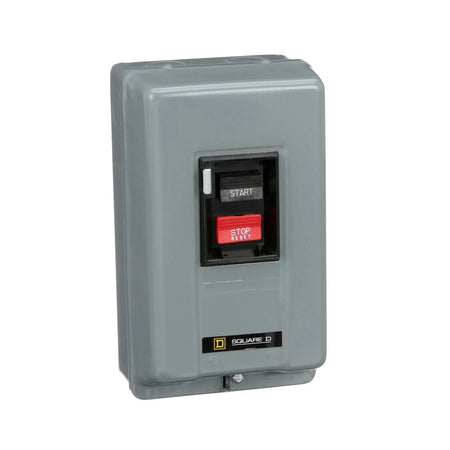

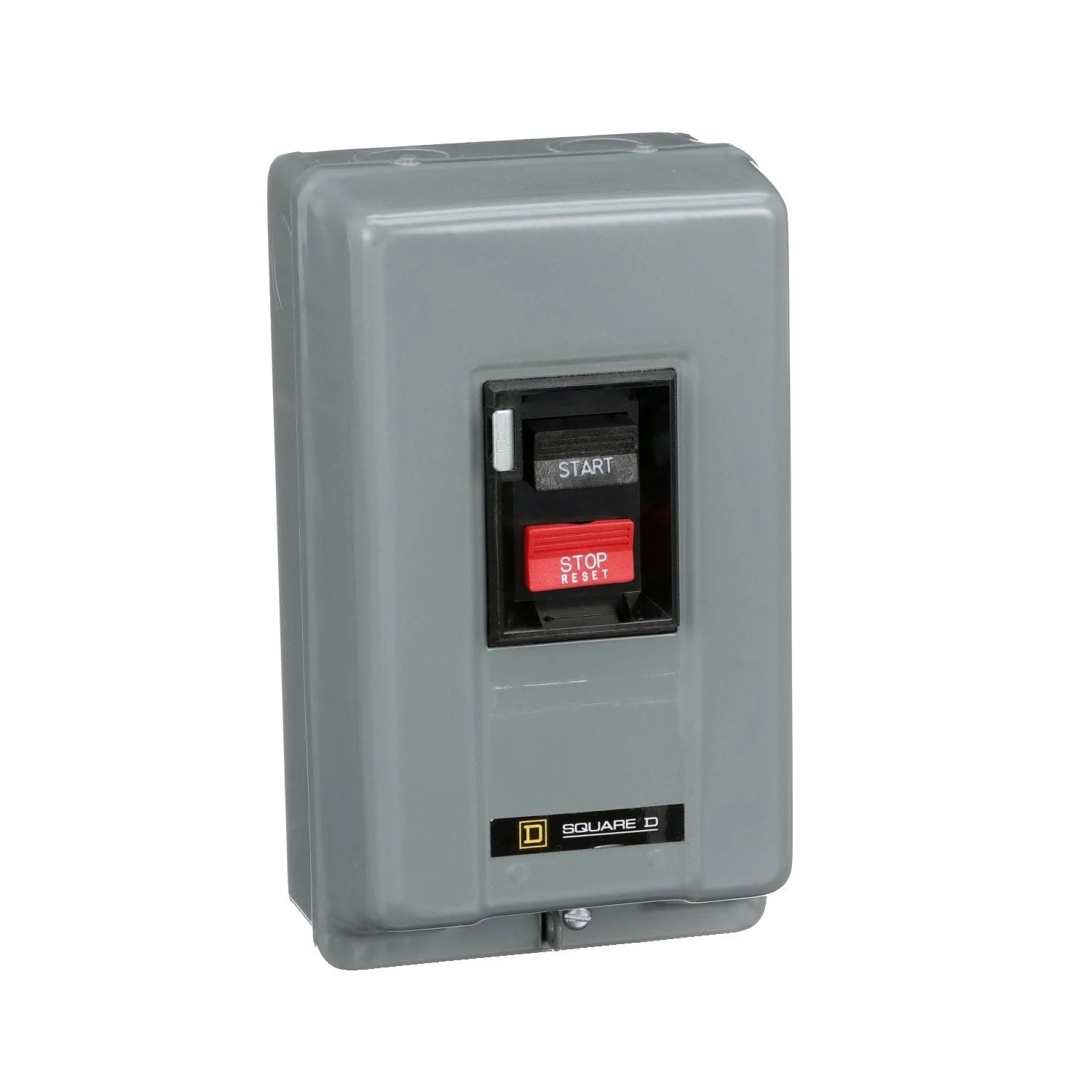

Square D 2510MCG3 Manual Motor Starter – Class 2510 – Type M – 27A – 3 Pole – 600VAC – Non-Reversing – Push Button Operator

The Square D 2510MCG3 is a Class 2510 manual motor starter designed for reliable full-voltage motor control in industrial and commercial applications. Manufactured by Schneider Electric under the Square D brand, this NEMA Size M-1 starter provides manual starting and stopping of three-phase AC motors while offering overload protection through a melting alloy overload relay system.

Rated at 27A and 600VAC, the 2510MCG3 features a non-reversing design, push-button operator, and pressure wire clamp terminals for secure wiring connections. It is suitable for controlling motors up to 10 HP in demanding motor control applications.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: 2510MCG3
• Series: Class 2510
• Type: M
• Category: Manual Motor Starter
• NEMA Size: M-1
• Configuration: 3 Pole
• Current Rating: 27A
• Voltage Rating: 600VAC / 250VDC
• Starter Type: Non-Reversing
• Control Unit: Push Button
• Electrical Connection: Pressure Wire Clamp
• Overload Relay Type: Melting Alloy
• Number of Thermal Units Required: 3
• Auxiliary Contacts: None
• Pilot Light: No Indicator

Horsepower Ratings

• 7.5 HP at 200–230VAC, 3 Phase
• 10 HP at 380–575VAC, 3 Phase

Wiring

• Wire Gauge: AWG 14 to AWG 8 Copper

Construction

• NEMA full-voltage manual motor starter
• Push-button start/stop operation
• Melting alloy overload protection system
• Heavy-duty industrial switching mechanism
• Pressure wire clamp terminal design

Dimensions & Weight

• Height: 8.63 in (219.20 mm)
• Width: 5.00 in (127.00 mm)
• Depth: 4.13 in (104.90 mm)
• Weight: Not specified

Applications

• Industrial motor control systems
• Pumps, fans, and compressors
• Conveyor and processing equipment
• HVAC motor control applications
• Commercial and manufacturing facilities

Certifications & Approvals

• UL Listed
• CSA Approved
• CE Certified
• Authentic Square D product
• Suitable for Class 2510 motor control systems
