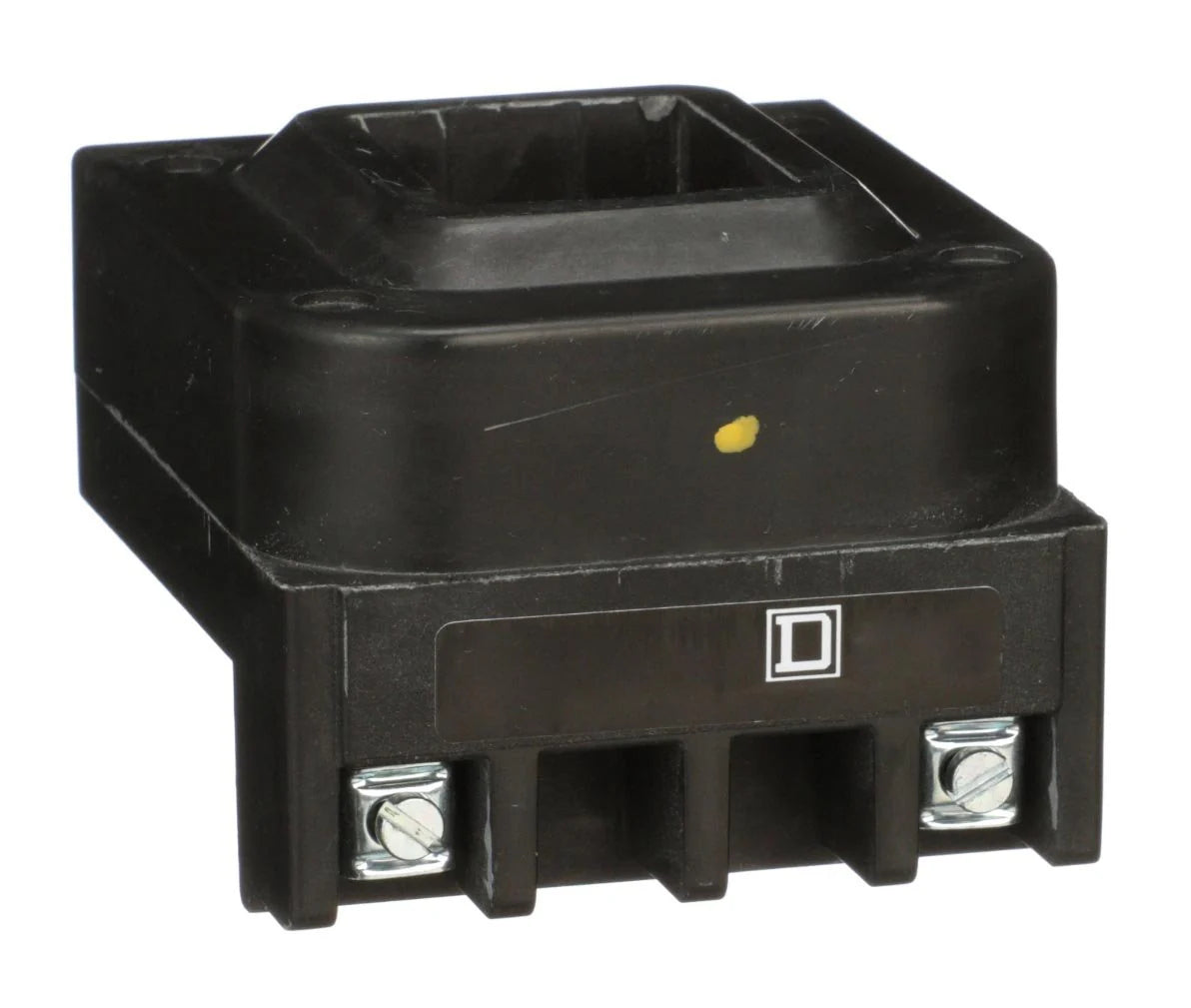

Square D 3107440047 Magnetic Coil – Class 8536 Series – 220/240VAC – Type 310 – NEMA Size 3 – Replacement Coil

In stock
SKU: 3107440047 GTIN/UPC: 78590111088
$408.80
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D 3107440047 is a replacement magnetic coil designed for use with Square D Class 8536 motor control equipment. Manufactured by Schneider Electric, this Type 310 coil provides reliable electromagnetic operation for contactors, motor starters, and motor control systems.

Rated for 220VAC at 50Hz and 220/240VAC at 60Hz, this coil is intended for NEMA Size 3 applications and is compatible with a wide range of Square D contactors and starters. Its OEM design ensures dependable performance and straightforward replacement in industrial and commercial motor control systems.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: 3107440047
  • Series: Class 8536
  • Type: 310
  • Category: Magnetic Coil
  • Coil Voltage: 220–240VAC, 50/60Hz
  • Voltage Rating: 240VAC
  • NEMA Size: 3
  • Current Rating Compatibility: 20A–100A

Compatibility

  • 8502 Contactors
  • 8536 Motor Starters
  • 8538 Contactors
  • 8539 Contactors
  • 8702 Contactors
  • 8736 Motor Starters
  • 8903 Lighting Contactors
  • 8910 Contactors
  • NEMA Size 3, 2-Pole and 3-Pole Motor Control Equipment

Construction

  • Electromagnetic replacement coil assembly
  • OEM Square D Type 310 design
  • Designed for contactors, motor starters, and motor control equipment
  • Industrial-duty construction for reliable operation
  • Suitable for replacement and maintenance applications

Dimensions & Weight

  • Height: 2.87 in
  • Width: 2.56 in
  • Length: 0.08 in

Applications

  • Motor control systems
  • NEMA magnetic contactors
  • Motor starters and controllers
  • Lighting contactors
  • Industrial automation equipment
  • HVAC control systems
  • Commercial and industrial electrical installations

Certifications & Approvals

  • Authentic Square D / Schneider Electric product
  • Designed for Class 8536 motor control equipment
  • Suitable for commercial and industrial motor control applications
  • Engineered to OEM performance specifications
  • Type Magnetic Coil
  • Vendor Square D
  • Brand Square D
