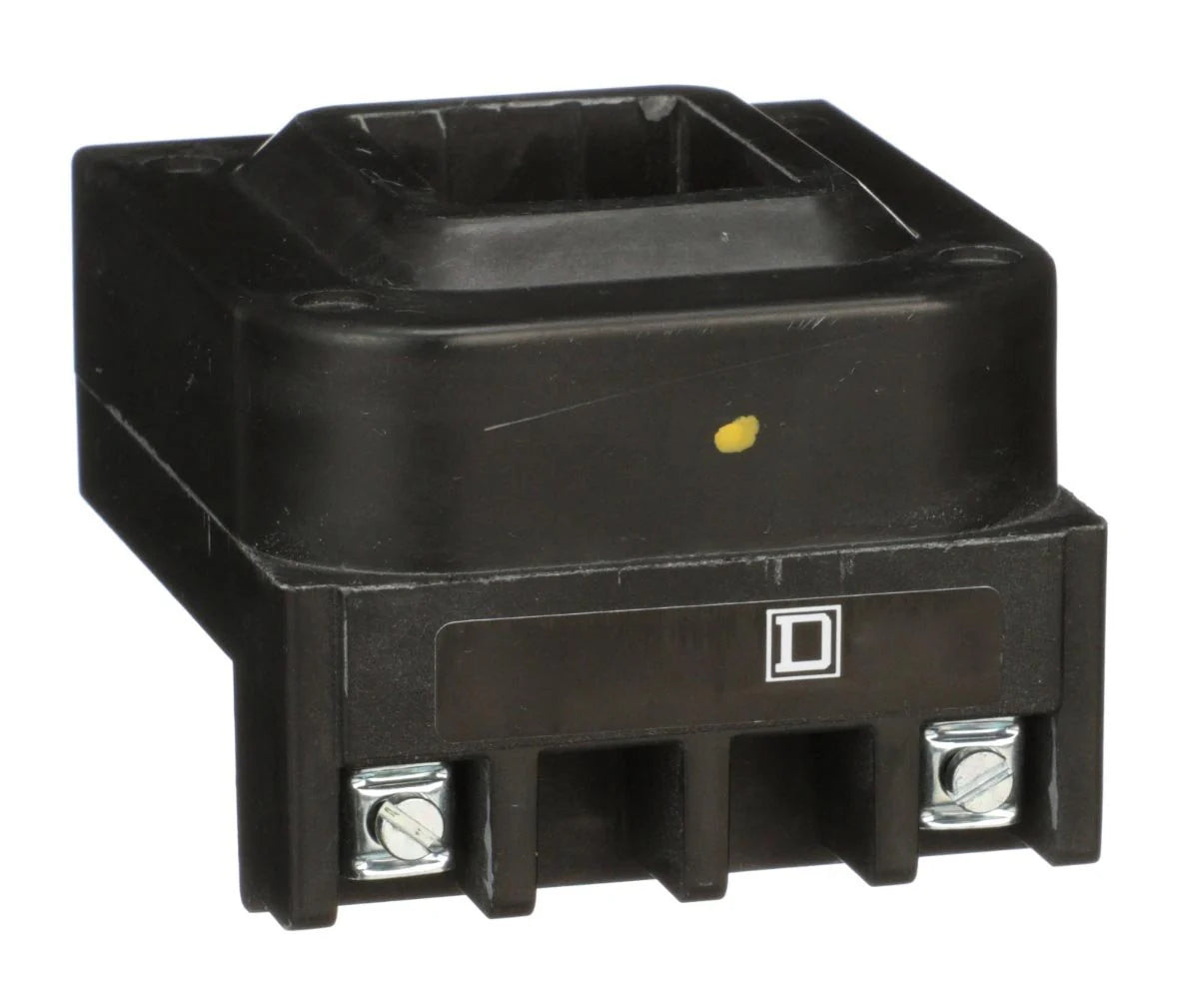

Square D 3109140038 Magnetic Coil – Series S – 110/120VAC – NEMA Size 3/4 – Replacement Coil for Contactors & Starters
Couldn't load pickup availability
Ask an expert
The Square D 3109140038 is a replacement magnetic coil designed for use in Square D motor control equipment. Manufactured by Schneider Electric under the Square D brand, this coil provides reliable electromagnetic operation for contactors, motor starters, and motor control systems.
This Series S coil operates at 110/120VAC, 50/60Hz and is suitable for a wide range of NEMA Size 3 and Size 4 applications. It is commonly used in heavy-duty motor control assemblies, offering dependable performance in industrial and commercial environments.
Specifications
- Brand: Square D
- Manufacturer: Schneider Electric
- Part Number: 3109140038
- Series: S Series
- Category: Magnetic Coil
- Coil Voltage: 110/120VAC, 50/60Hz
- Voltage Rating: 120VAC
- NEMA Size: 3 / 4
- Current Compatibility:
- NEMA Size 3: 20A–100A
- NEMA Size 4: up to 200A
- Pole Compatibility: 4 and 5 Pole applications
Compatibility
- 8502 Contactors
- 8536 Motor Starters
- 8538 Contactors
- 8539 Contactors
- 8606, 8630, 8640, 8647, 8650, 8651 Contactors
- 8702, 8736, 8739 Contactors
- 8810, 8811, 8812 Contactors
- 8903 Lighting Contactors
- NEMA motor control systems (Size 3 & 4)
Construction
- Electromagnetic replacement coil assembly
- Designed for heavy-duty motor control equipment
- OEM Square D S Series construction
- Suitable for multi-pole contactor applications
- Industrial-grade durability for continuous operation
Dimensions & Weight
- Length: 2.5 in
- Width: 2.6 in
- Height: 2.9 in
- Weight: Not specified
Applications
- Industrial motor control systems
- NEMA contactors and starters
- HVAC and mechanical equipment control
- Lighting and power distribution contactors
- Commercial and industrial automation systems
- Maintenance and replacement applications
Certifications & Approvals
- Authentic Square D / Schneider Electric product
- Designed for OEM motor control equipment
- Suitable for UL-compliant industrial applications
- Type Magnetic Coil
- Vendor Square D
- Brand Square D
