Square D

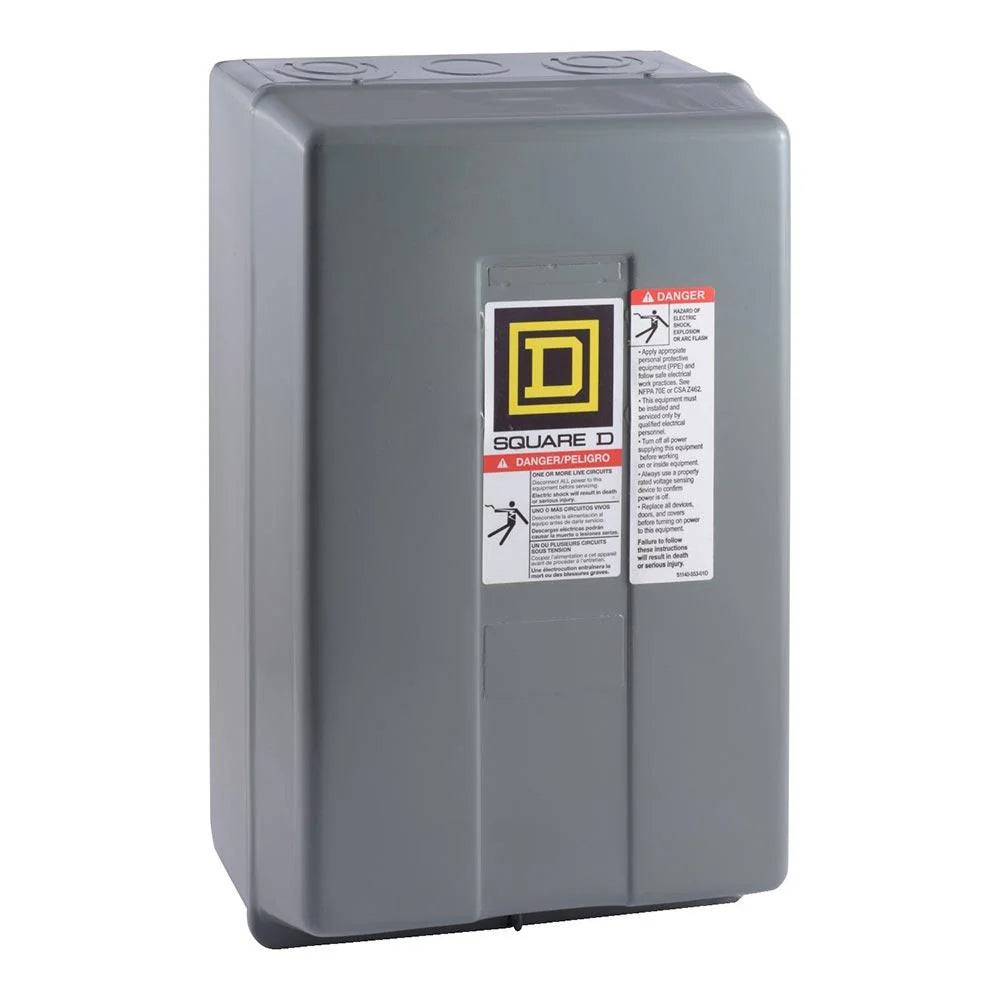

Square D 8903LG40V02 Lighting Contactor – Class 8903 – Type L – 4 Pole – Electrically Held – 30A – 120VAC Coil – NEMA 1 Enclosed

In stock
SKU: 8903LG40V02 GTIN/UPC: 785901851325
$665.00
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D 8903LG40V02 is a Class 8903 electrically held lighting contactor designed for compact, reliable switching of lighting and general-purpose electrical loads. Manufactured by Schneider Electric under the Square D brand, it is widely used in commercial and industrial lighting control systems where multi-circuit switching and long operational life are required.

This 4-pole, 30A lighting contactor features a 110/120VAC control coil and is built with silver cadmium oxide double-break contacts for improved durability and arc control. It is supplied in a NEMA Type 1 painted steel enclosure designed for surface mounting in indoor environments.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: 8903LG40V02
  • Series: Class 8903
  • Type: L
  • Category: Lighting Contactor
  • Configuration: 4 Pole (4 NO)
  • Current Rating: 30A (20A tungsten / 30A fluorescent)
  • Voltage Rating: 600VAC power circuit
  • Coil Voltage: 110/120VAC, 50/60Hz
  • Operation Type: Electrically Held
  • Control Unit: None
  • Pilot Light: None

Electrical Performance

  • Inrush power: 140 VA (50Hz) / 150 VA (60Hz)
  • Holding power: 30 VA (50/60Hz)
  • Designed for efficient coil energy usage in continuous operation

Construction

  • Heavy-duty lighting contactor with compact design
  • Silver cadmium oxide double-break contacts for long life
  • Screw-clamp terminal connections
  • NEMA 1 painted steel enclosure
  • Surface-mounted configuration for easy installation
  • Industrial-grade switching mechanism

Dimensions

  • Height: 12.68 in (322 mm)
  • Width: 7.8 in (198 mm)
  • Depth: 6.02 in (153 mm)

Applications

  • Commercial lighting systems
  • Industrial lighting control panels
  • Building automation systems
  • Multi-circuit lighting switching
  • HVAC auxiliary load switching
  • Energy management systems

Certifications & Approvals

  • UL Listed
  • CSA Certified
  • NEMA Type 1 enclosure compliant
  • Authentic Square D / Schneider Electric product
  • Designed for Class 8903 lighting contactor systems
  • Type Contactor
  • Vendor Square D
  • Brand Square D
