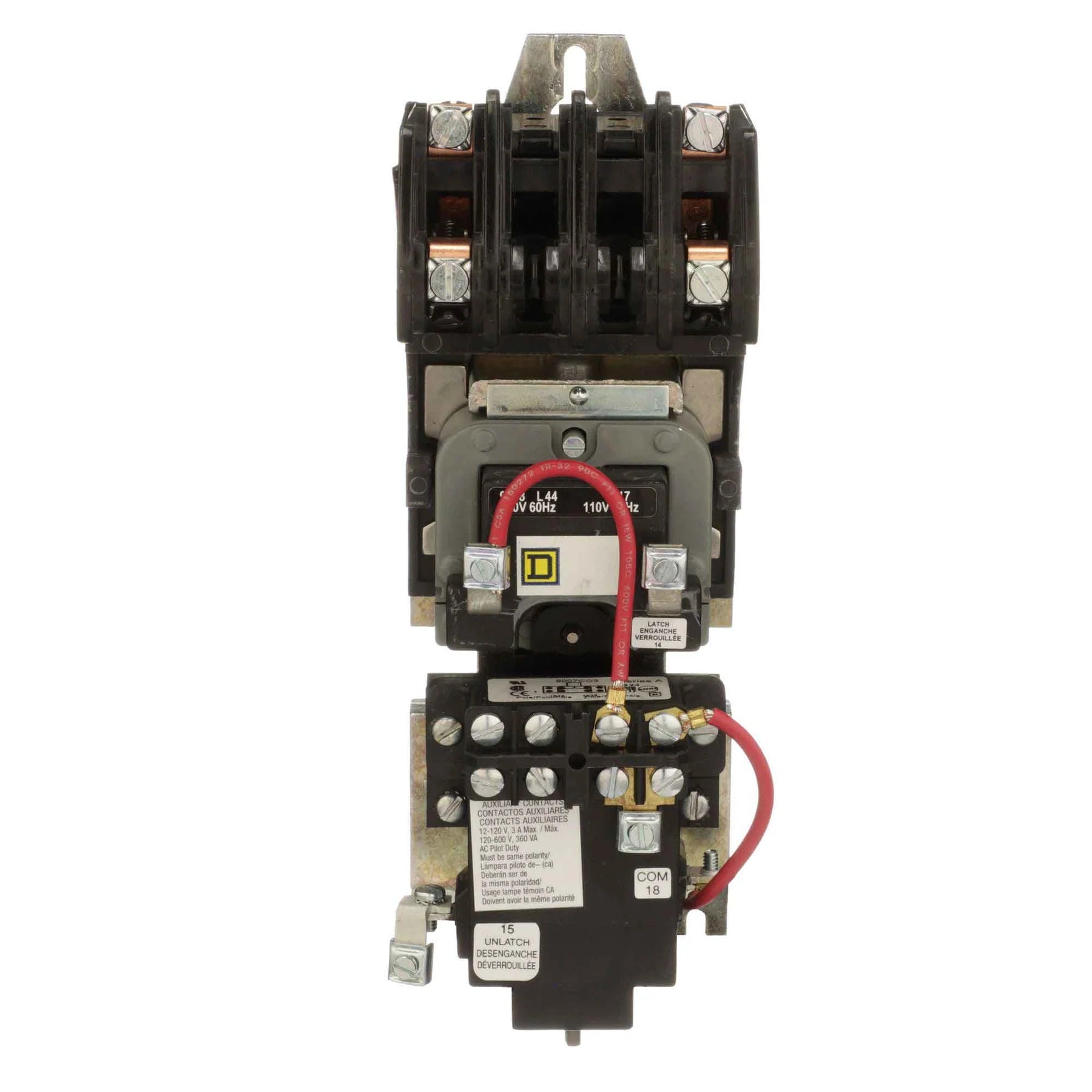

Square D 8903LXO40V02 Lighting Contactor – Class 8903 – Type LX – 4 Pole – 30A – 600VAC – 120VAC Coil – Mechanically Held – Open Type
Couldn't load pickup availability
Ask an expert
The Square D 8903LXO40V02 is a Class 8903 multipole lighting contactor designed for reliable control of lighting and general-purpose electrical loads in commercial and industrial facilities. Manufactured by Schneider Electric under the Square D brand, this mechanically held contactor offers energy-efficient operation by requiring power only during switching, eliminating continuous coil consumption.
This 4-pole, 30A lighting contactor is rated for 600VAC operation and features a 110/120VAC control coil. The open-type construction allows installation within electrical panels, switchboards, and custom control enclosures, making it ideal for centralized lighting control and building automation systems.
Specifications
- Brand: Square D
- Manufacturer: Schneider Electric
- Part Number: 8903LXO40V02
- Series: Class 8903
- Type: LX
- Category: Lighting Contactor
- Configuration: 4 Pole
- Phase: 3 Phase
- Current Rating: 30A
- Voltage Rating: 600VAC
- Coil Voltage: 110/120VAC
- Operation Type: Mechanically Held
- Enclosure Type: Open Type
Construction
- Mechanically held operating mechanism for reduced energy consumption
- Heavy-duty multipole switching design
- Open-frame construction for panel mounting applications
- Industrial-grade contact system for long electrical life
- Designed for frequent lighting control operations
Dimensions & Weight
- Height: 3.27 in
- Width: 2.87 in
- Depth: 8.82 in
- Weight: 5.00 lb
Applications
- Commercial lighting control systems
- Industrial lighting distribution panels
- Building automation systems
- Energy management systems
- Multi-circuit lighting control
- General-purpose load switching
Certifications & Approvals
- UL Listed
- CSA Certified
- NEMA compliant when installed in a suitable enclosure
- Authentic Square D / Schneider Electric product
- Designed for Class 8903 lighting contactor systems
- Suitable for commercial and industrial lighting control applications
- Type Contactor
- Vendor Square D
- Brand Square D
