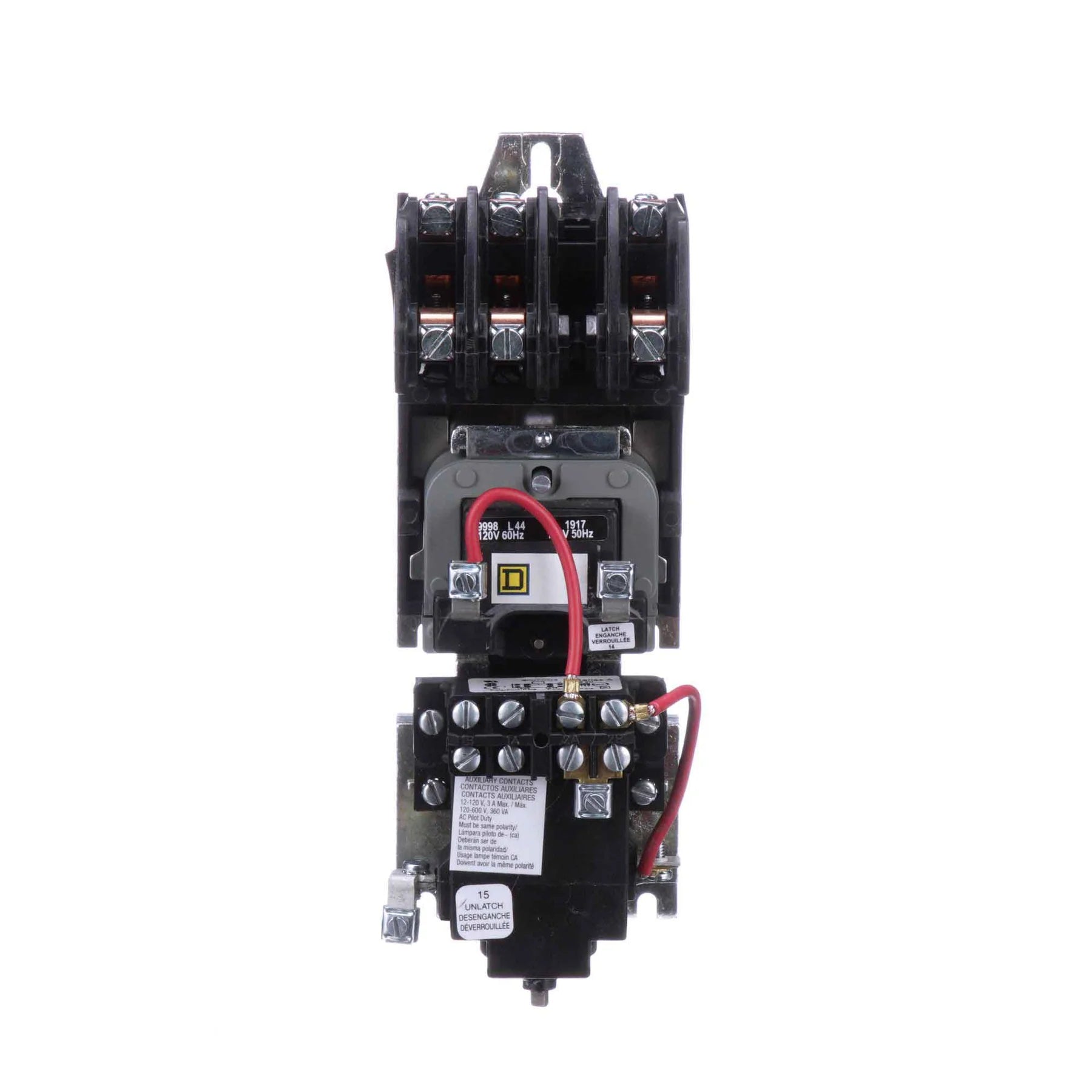

Square D 8903SQO2V02 Lighting Contactor – Class 8903 – 3 Pole – 100A – 600VAC – 120VAC Coil – Electrically Held – Box Lug
Couldn't load pickup availability
Ask an expert
The Square D 8903SQO2V02 is a Class 8903 lighting contactor designed for heavy-duty switching of lighting and general-purpose electrical loads in commercial and industrial applications. Manufactured by Schneider Electric under the Square D brand, this electrically held contactor delivers reliable performance for centralized lighting control systems and power distribution applications.
This 3-pole, 100A contactor is rated for 600VAC operation and features a 110/120VAC 50/60Hz control coil. It is equipped with box lug terminal connections for secure wiring and is designed for surface mounting in electrical panels or enclosures.
Specifications
- Brand: Square D
- Manufacturer: Schneider Electric
- Part Number: 8903SQO2V02
- Series: Class 8903
- Type: SQO
- Category: Lighting Contactor
- Configuration: 3 Pole
- Phase: 3 Phase
- Current Rating: 100A
- Voltage Rating: 600VAC
- Coil Voltage: 110/120VAC, 50/60Hz
- Operation Type: Electrically Held
- Terminal Connection: Box Lug
- Mounting Type: Surface
Dimensions
- Height: 7.2 in
- Width: 5.4 in
- Depth: 6.5 in
Construction
- Heavy-duty electrically held contactor design
- Industrial-grade contact system for high-load switching
- Box lug terminals for secure and reliable wiring
- Surface-mount configuration for panel installation
- Replaceable coil and contact components for easy maintenance
Applications
- Commercial lighting control systems
- Industrial lighting distribution panels
- Building automation systems
- Energy management systems
- Large-scale lighting loads
- General-purpose power switching
Certifications & Approvals
- UL Listed
- CSA Certified
- RoHS compliant
- REACh compliant
- Authentic Square D / Schneider Electric product
- Designed for Class 8903 lighting contactor systems
- Type Contactor
- Vendor Square D
- Brand Square D
