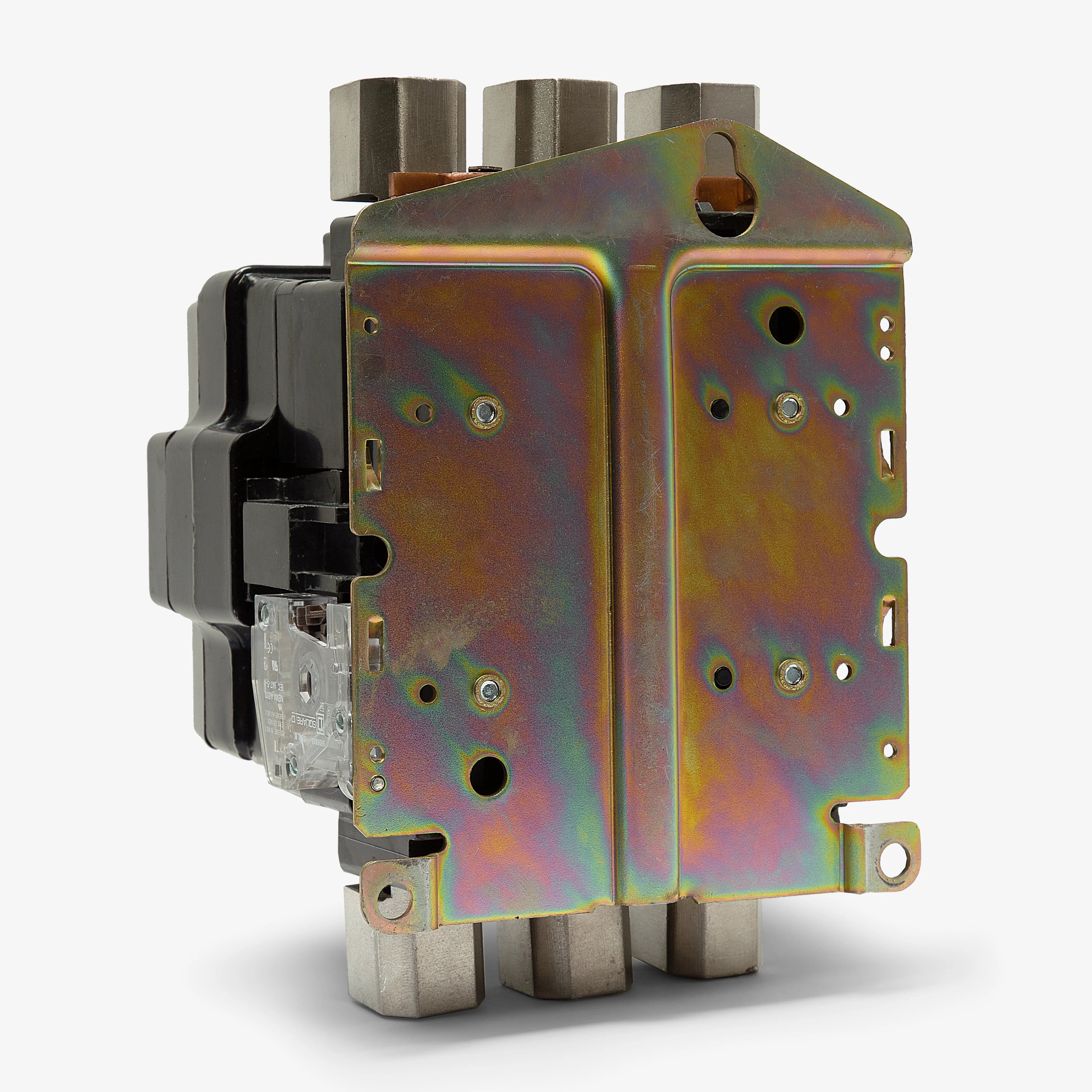

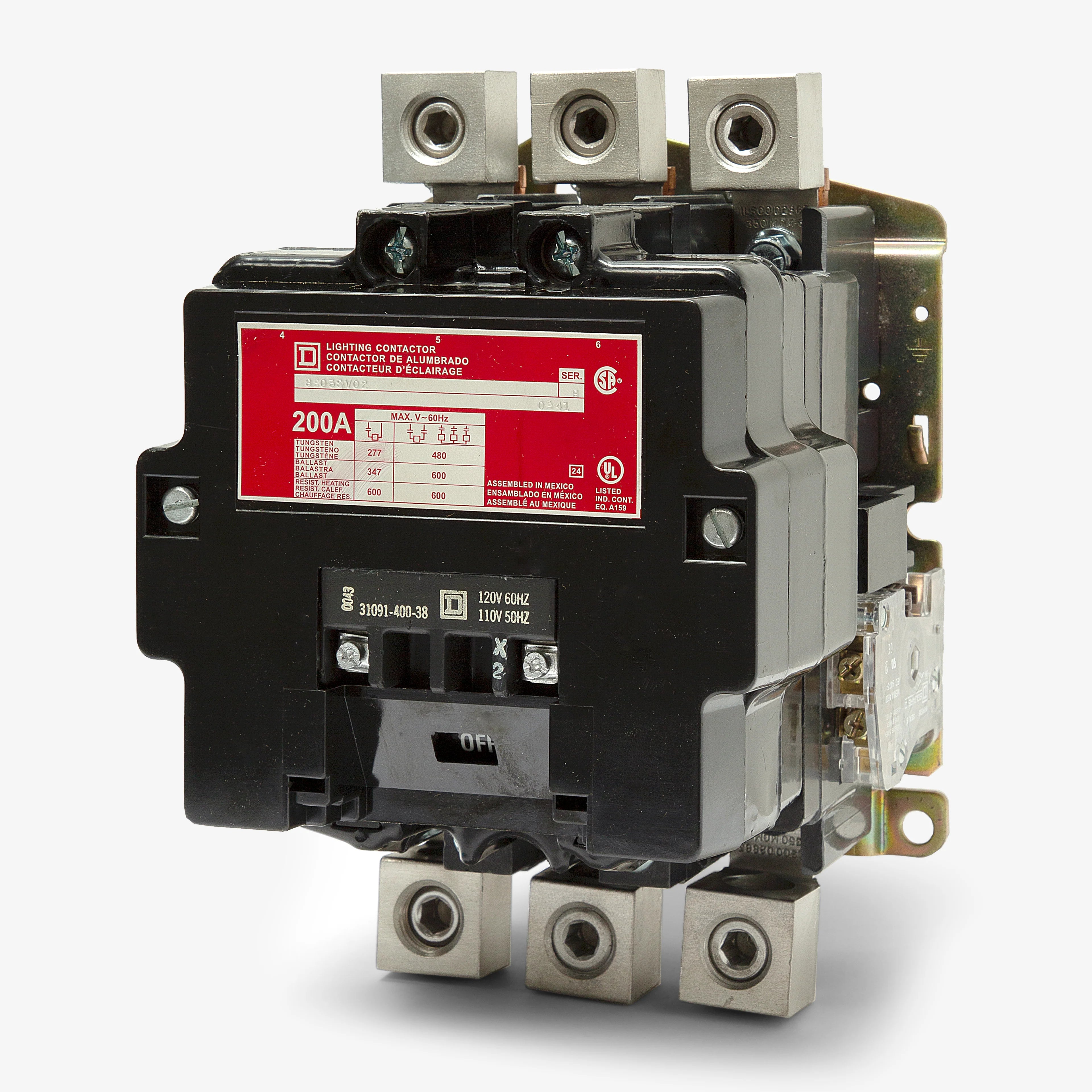

Square D 8903SVO2V02 Lighting Contactor – Class 8903 – 3 Pole – 200A – 240VAC – 120VAC Coil – Electrically Held – Lug Terminals

The Square D 8903SVO2V02 is a Class 8903 lighting contactor designed for high-capacity switching of lighting and power loads in commercial and industrial applications. Manufactured by Schneider Electric under the Square D brand, this electrically held contactor provides reliable performance for demanding load control systems.

This 3-pole, 200A contactor is rated for 240VAC operation and features a 110–120VAC control coil. It is equipped with lug terminal connections for secure power wiring and is designed for panel or surface mounting in electrical distribution systems.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: 8903SVO2V02
• Series: Class 8903
• Type: SVO
• Category: Lighting Contactor
• Configuration: 3 Pole
• Phase: 3 Phase
• Current Rating: 200A
• Voltage Rating: 240VAC
• Coil Voltage: 110–120VAC
• Operation Type: Electrically Held
• Terminal Connection: Lug Terminals
• Mounting Type: Panel / Surface

Dimensions

• Height: 9.13 in
• Width: 5.98 in
• Length: 6.5 in

Construction

• Heavy-duty electrically held contactor design
• High-current industrial switching capability
• Rugged lug terminal connections for secure wiring
• Designed for frequent switching applications
• Replaceable coil system for maintenance flexibility

Applications

• Commercial lighting distribution systems
• Industrial power switching
• Building automation systems
• Energy management systems
• Heavy-duty lighting loads
• General-purpose electrical load control

Certifications & Approvals

• UL Listed
• CSA Certified
• Authentic Square D / Schneider Electric product
• Designed for Class 8903 lighting contactor systems
