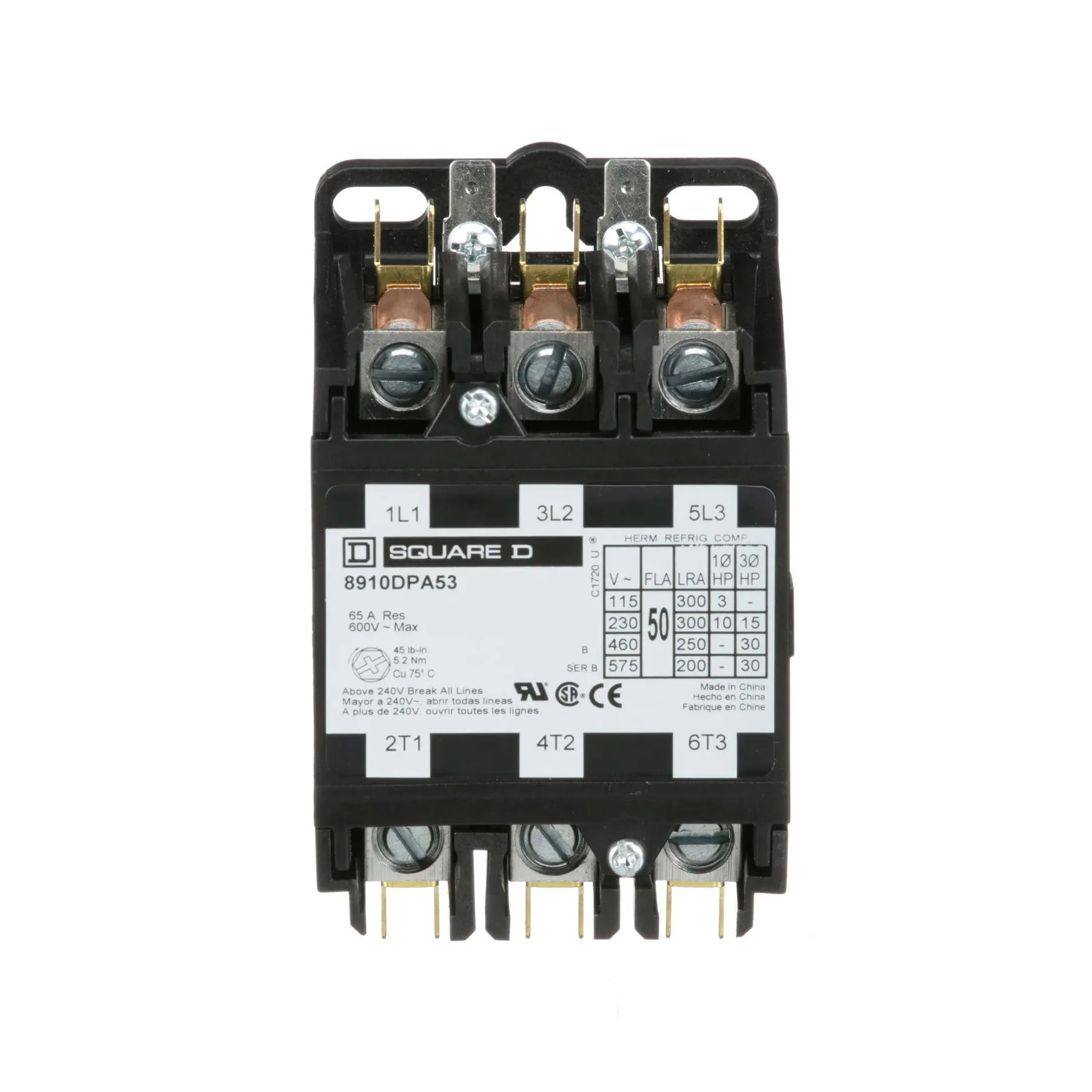

Square D 8910DPA53V09 Definite Purpose Contactor – 3 Pole – 50A – 600VAC – 208–240VAC Coil – HVACR
Couldn't load pickup availability
Ask an expert
The Square D 8910DPA53V09 is a definite purpose magnetic contactor designed for HVACR applications including heating, air conditioning, and refrigeration systems. Manufactured by Schneider Electric under the Square D brand, this compact contactor is built for reliable switching of motor and resistive loads in OEM equipment and control panel installations.
This 3-pole, 50A contactor is rated for 600VAC operation and features a 208/240VAC (60Hz) and 220VAC (50Hz) control coil. It uses straight-through wiring for simplified installation and is engineered for high-cycle duty in demanding HVAC environments.
Specifications
- Brand: Square D
- Manufacturer: Schneider Electric
- Part Number: 8910DPA53V09
- Series: Class 8910 DPA
- Type: Definite Purpose Contactor
- Configuration: 3 Pole
- Phase: 3 Phase
- Current Rating: 50A (Full Load), 65A Resistive
- Voltage Rating: 600VAC
- Coil Voltage: 208–240VAC (60Hz), 220VAC (50Hz)
- Operation Type: Non-Reversing
- Wiring Type: Straight-through wiring
Motor Ratings (as specified)
- 3 HP @ 115VAC single phase
- 10 HP @ 230VAC single phase
- 15 HP @ 230VAC three phase
- 30 HP @ 460VAC three phase
- 30 HP @ 575VAC three phase
Dimensions
- Height: 3.67 in
- Width: 2.56 in
- Depth: 4.06 in
Construction
- Heavy-duty definite purpose HVACR design
- Compact frame for OEM installation
- Non-replaceable coil construction
- Straight-through wiring for easy installation
- Designed for frequent cycling applications
Applications
- HVAC systems
- Air conditioning units
- Refrigeration compressors
- Heating systems
- OEM equipment control panels
- Fan and blower control
Certifications & Approvals
- UL Component Recognized
- CSA Certified
- Authentic Square D / Schneider Electric product
- Designed for Class 8910 HVACR contactor applications
- Type Contactor
- Vendor Square D
- Brand Square D
