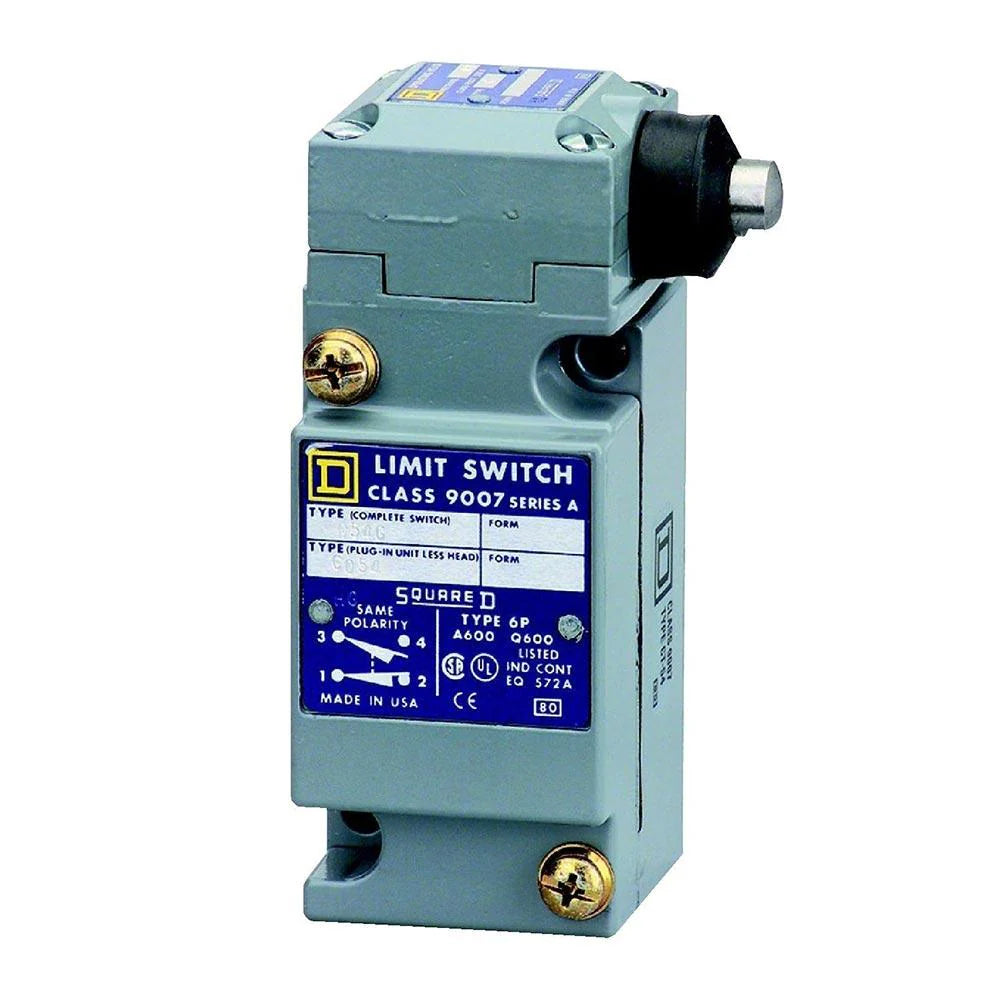

Square D 9007C54G Limit Switch – Heavy Duty Plug-In – Plunger Head – SPDT Snap Action – 600VAC – 10A

The Square D 9007C54G is a heavy-duty industrial limit switch from Schneider Electric’s 9007 series, designed for precise position sensing and reliable switching in demanding automation and machinery applications. Built with a durable zinc die-cast body and plug-in construction, it offers easy installation and long service life in harsh industrial environments.

This limit switch features a spring-return side plunger actuator with snap-action SPDT contact configuration, providing accurate and repeatable switching performance. It is engineered for use in high-cycle applications such as machine tools, conveyors, and automated production systems where reliability and durability are critical.

Specifications

• Range of Product: 9007
• Device Short Name: 9007C
• Part Number: 9007C54G
• Manufacturer: Schneider Electric / Square D
• Category: Motor Controls
• Type: Heavy Duty Limit Switch
• Body Type: Plug-in
• Head Type: Plunger Head
• Material: Metal (Zinc Die-Cast)
• Mounting / Fixing Mode: By body
• Movement Type: Linear
• Operator Type: Stainless steel spring return side plunger
• Switch Function: SPDT (Form Z)
• Contact Operation: Snap Action
• Contacts Type: NC-NO
• Contacts Material: Silver

Electrical Ratings

• Voltage Rating: 120/240/480/600VAC, 125/250/600VDC
• Current Rating: 10A
• Rated Operational Current:
  • 1.2A at 600VAC (A600)
  • 0.1A at 600VDC (Q600)
• Short-Circuit Protection: 10A non-time delay fuse
• Insulation Voltage: 600V
• Impulse Withstand Voltage: up to 2.5 kV AC

Performance

• Mechanical Durability: 10,000,000 cycles
• Electrical Durability: 1,000,000 cycles
• Repeat Accuracy: ±0.001 in linear travel
• Shock Resistance: 60 gn (9 ms)
• Vibration Resistance: 25 gn (10–150 Hz)

Environmental Ratings

• Operating Temperature: -20 to 185 °F
• Storage Temperature: -20 to 185 °F
• IP Rating: IP67
• NEMA Ratings: 1, 2, 4, 6, 6P, 12, 13
• Environmental Protection: Epoxy powder-coated finish

Dimensions

• Height: 4.02 in
• Width: 1.55 in
• Depth: 2.16 in
• Weight: 1.25 lb

Construction

• Rugged zinc alloy housing for industrial durability
• Compact plug-in design for easy replacement
• Side plunger actuator for lateral motion sensing
• High-reliability silver contacts for long life performance
• Designed for harsh industrial and outdoor environments

Applications

• Industrial automation systems
• Conveyor and material handling equipment
• Machine safety interlocks
• Position detection systems
• Heavy-duty OEM machinery
• Process control systems

Certifications & Approvals

• UL Listed (compliant design)
• CSA Certified
• CE Compliant
• RoHS Compliant
• Authentic Square D / Schneider Electric product
