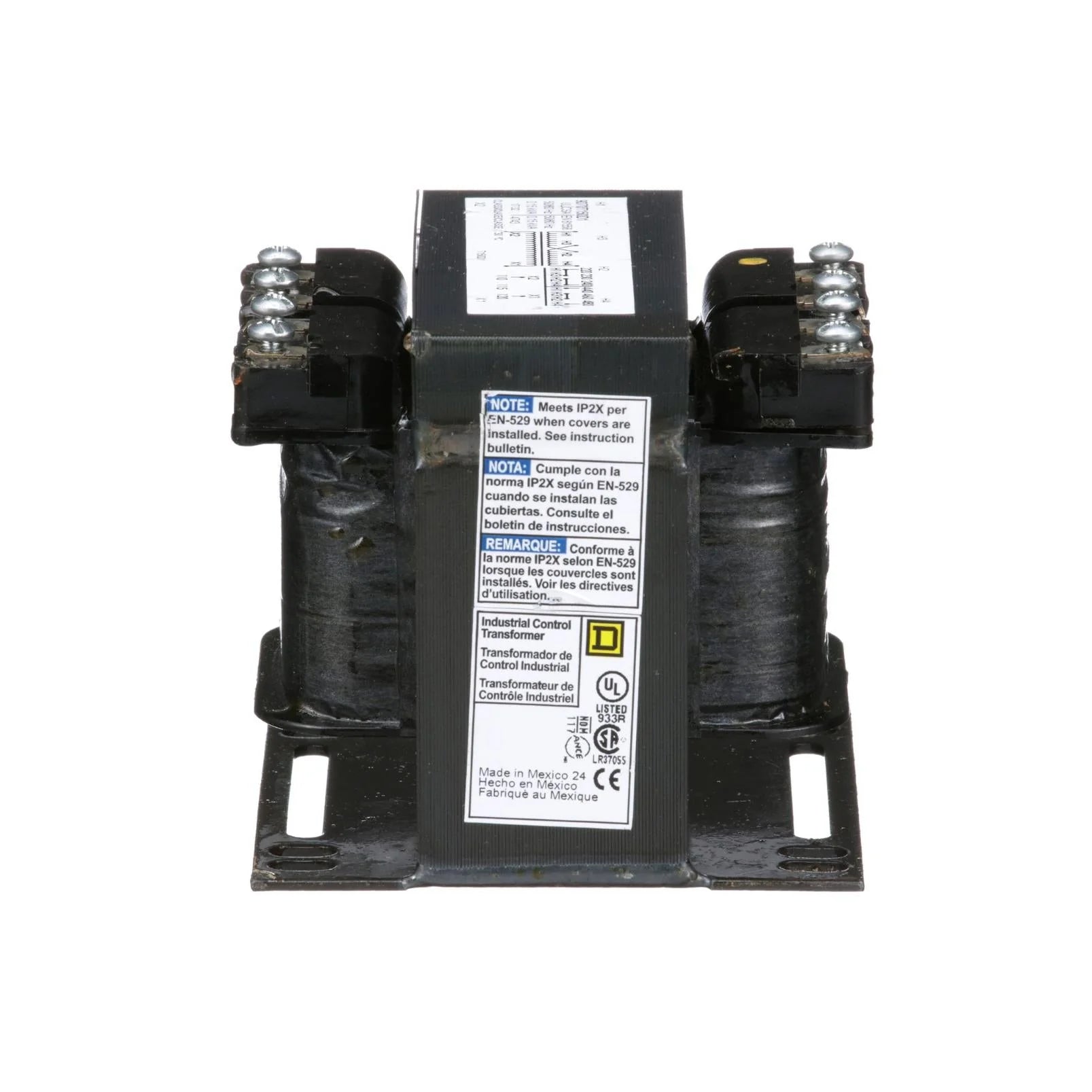

Square D 9070T150D1 Industrial Control Transformer – Class 9070 – 150VA – 240/480V Primary – 120V Secondary – 110V Coil

The Square D 9070T150D1 is a high-quality industrial control power transformer designed by Schneider Electric under the Square D brand. It is part of the Class 9070 transformer series, widely used in industrial control panels, machinery systems, and OEM applications where stable and reliable control voltage is required.

This transformer provides efficient voltage conversion from 240/480V primary to 120V secondary, delivering a 150VA power rating. It ensures safe and consistent control circuit operation for relays, contactors, timers, and other industrial control devices.

Specifications

• Part Number: 9070T150D1
• Manufacturer: Schneider Electric / Square D
• Family: Class 9070
• Category: Motor Controls / Industrial Control Transformers
• Type: T
• Phase: 1 Phase
• Voltage Rating: 110V (control application)
• Power Rating: 150VA

Electrical Ratings

• Primary Voltage: 240 / 480V
• Secondary Voltage: 120V
• Frequency: 50/60 Hz (standard industrial use)
• Application: Control power transformer

Dimensions

• Height (H): 3.2 in
• Width (W): 3.75 in
• Depth (D): 3.59 in
• Weight: 5.6 lbs

Construction

• Heavy-duty industrial-grade laminated core design
• Designed for efficient voltage regulation in control circuits
• Compact enclosure for easy panel installation
• High reliability for continuous industrial operation

Standards & Approvals

• UL Listed
• CSA Certified
• CE Compliant
• CSA Approved
• 18-month manufacturer warranty

Applications

• Industrial control panels
• Motor control circuits
• HVAC systems
• OEM machinery
• Automation systems
• Relay and contactor control power supply
