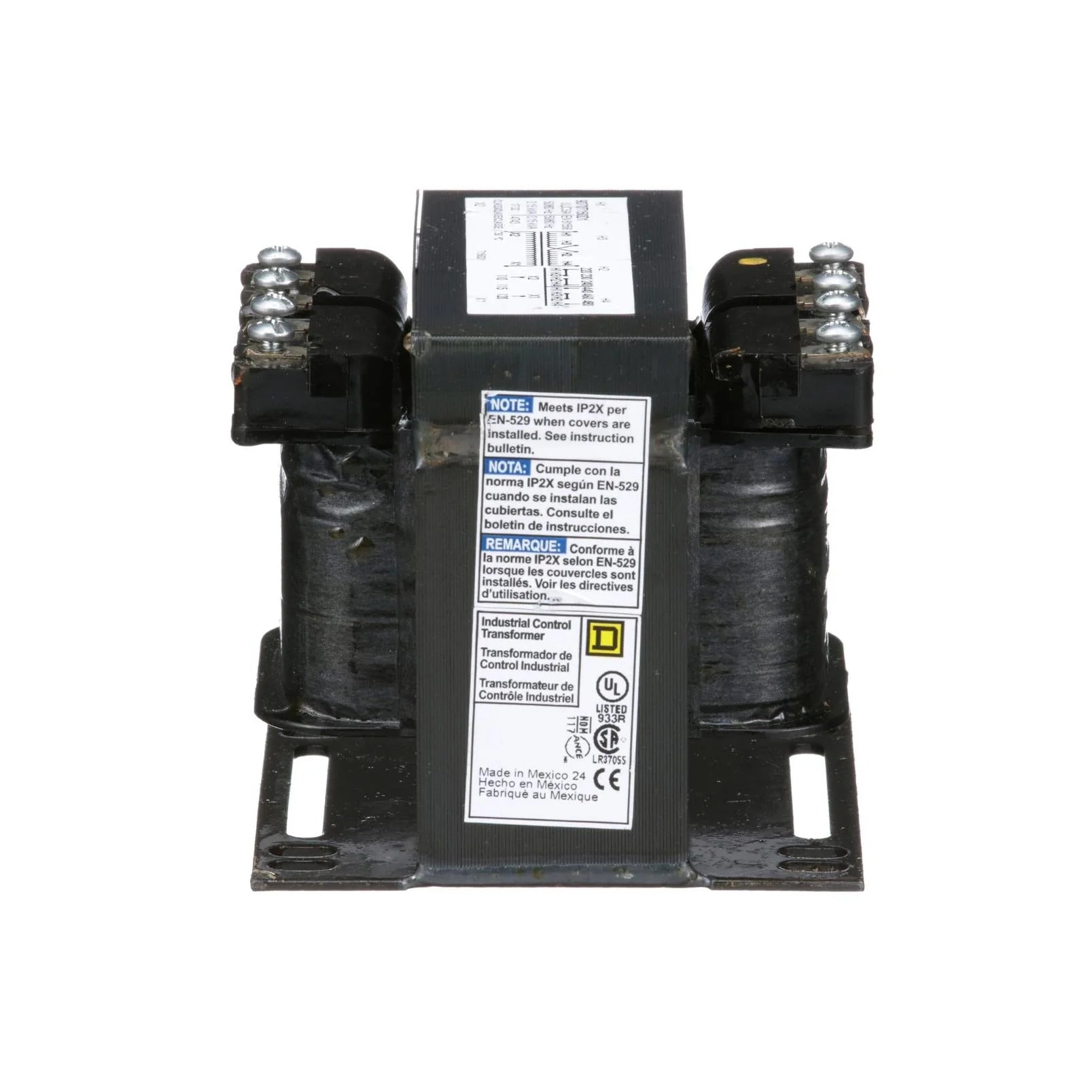

Square D 9070T200D1 Control Power Transformer – Class 9070 – 200VA – 240/480V Primary – 120V Secondary – Industrial Control Transformer
Couldn't load pickup availability
Ask an expert
The Square D 9070T200D1 is a high-performance industrial control power transformer manufactured by Schneider Electric under the Square D brand. It belongs to the Class 9070 series and is designed to supply reliable, isolated control voltage for industrial equipment, machinery, and electrical control panels.
This transformer provides efficient voltage conversion from 240/480V primary to 120V secondary, delivering a 200VA power rating. It is widely used in control circuits to power relays, contactors, solenoids, and other automation components requiring stable control voltage.
Specifications
- Part Number: 9070T200D1
- Manufacturer: Schneider Electric / Square D
- Category: Motor Controls / Control Power Transformers
- Family: Class 9070
- Phase: 1 Phase
- Power Rating: 200VA
Electrical Ratings
- Primary Voltage: 240 / 480V
- Secondary Voltage: 120V
- Frequency: 50/60 Hz (standard industrial use)
- Application: Industrial control power supply
Dimensions
- Height: 3.2 in
- Width: 3.75 in
- Depth: 3.59 in
- Weight: 5.49 lbs
Construction
- Rugged laminated core construction for efficient energy transfer
- Compact design suitable for control panel installation
- Designed for continuous-duty industrial applications
- High reliability for stable voltage output under load conditions
Standards & Approvals
- UL Listed
- CSA Certified
- CE Compliant
- CSA Approved
- 18-month manufacturer warranty
Applications
- Industrial control panels
- Motor control circuits
- OEM machinery systems
- Automation and relay control systems
- HVAC control systems
- Manufacturing equipment
- Type Control Power
- Vendor Square D
- Brand Square D
