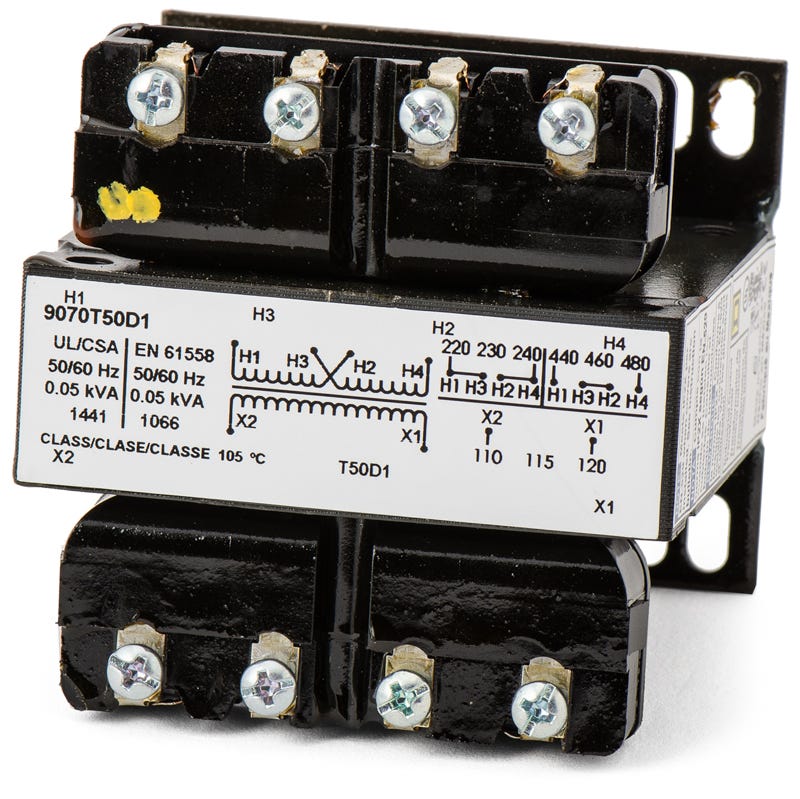

Square D 9070T50D1 Industrial Control Transformer – Class 9070 – 50VA – 240/480V Primary – 120V Secondary – Open Type – Copper Winding

The Square D 9070T50D1 is a compact industrial control power transformer manufactured by Schneider Electric under the Square D brand. It is part of the Class 9070T series and is designed to provide reliable, isolated control voltage for industrial control circuits, machinery, and OEM equipment.

This transformer features a 50VA power rating and supports multiple primary voltage configurations, making it flexible for a wide range of control panel applications. Its open-type design and copper windings ensure efficient performance and durability in continuous-duty industrial environments.

Specifications

• Brand: Square D
• Series: 9070T
• Part Number: 9070T50D1
• Manufacturer: Schneider Electric / Square D
• Type: Industrial Control Transformer
• Phase: 1 Phase
• Enclosure Type: Open Type

Electrical Ratings

• Power Rating: 50VA
• Primary Voltage: 220×/440V, 230×/460V, 240×/480V
• Secondary Voltage: 110 / 115 / 120V
• Winding Material: Copper
• Frequency: 50/60 Hz (standard industrial use)

Construction

• Compact industrial design for easy panel installation
• Open-frame construction for flexible mounting
• Copper winding for improved efficiency and thermal performance
• Screw clamp terminals for secure electrical connections
• Slot mounting design for simple installation

Dimensions

• Mounting Slot Size: 0.38 in (L) × 0.2 in (W)

Standards & Approvals

• UL Listed
• CSA Certified
• RoHS Compliant (typical for series compliance)

Applications

• Industrial control panels
• Motor control circuits
• OEM machinery systems
• HVAC control systems
• Relay and contactor control power supply
• Automation equipment
