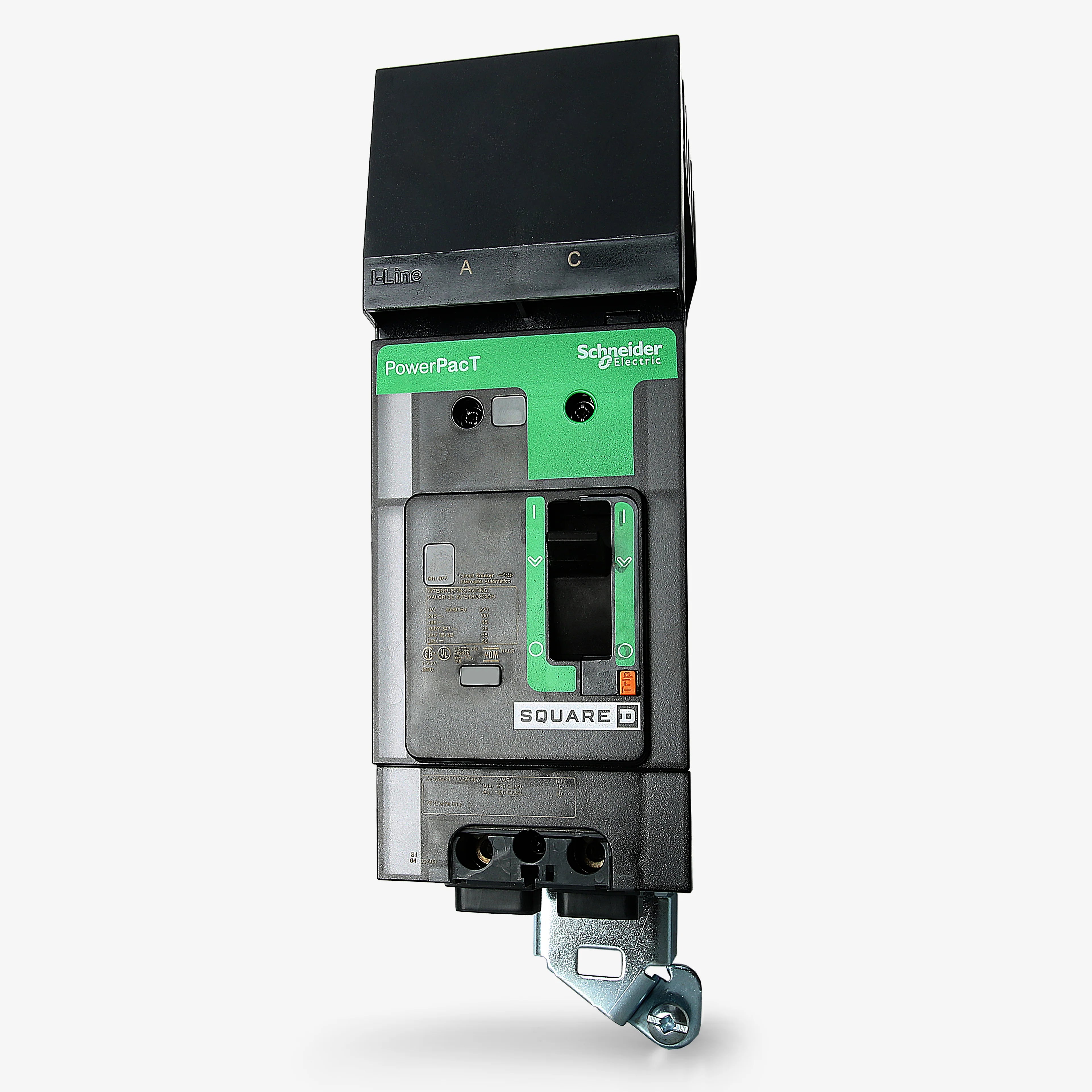

Square D BDA2100Y2 PowerPact B Circuit Breaker – 2 Pole – 100A – Thermal Magnetic – I-Line – 18kA @ 480VAC

The Square D BDA2100Y2 is a PowerPact B-frame molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial power distribution systems. Manufactured by Schneider Electric, this 2-pole breaker features fixed thermal-magnetic trip technology, delivering Long-Time and Instantaneous (LI) protection against overloads and short circuits.

Rated at 100A, the breaker utilizes an I-Line mounting configuration for quick installation into compatible Square D I-Line panelboards and switchboards. Its current-limiting design helps reduce fault energy, while the visual trip indicator simplifies troubleshooting and maintenance. The BDA2100Y2 also serves as a direct replacement for legacy FA24100AC breakers, making it an ideal upgrade solution for existing installations.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Series: BDA (PowerPact B-Frame)
• Part Number: BDA2100Y2
• Type: Molded Case Circuit Breaker (MCCB)
• Poles: 2
• Phase: 1 Phase
• Amperage Rating: 100A
• Mounting Style: I-Line
• Terminal Type: Lugs

Electrical Ratings

• Voltage Rating:
  • 208Y/120VAC
  • 240VAC
  • 480Y/277VAC
  • 480VAC
  • 250VDC
• Interrupting Capacity (AIC):
  • 25kA @ 208Y/120VAC
  • 25kA @ 240VAC
  • 18kA @ 480Y/277VAC
  • 18kA @ 480VAC
  • 10kA @ 250VDC

Trip Unit Specifications

• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Functions: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Protection Type: Overload and Short-Circuit Protection

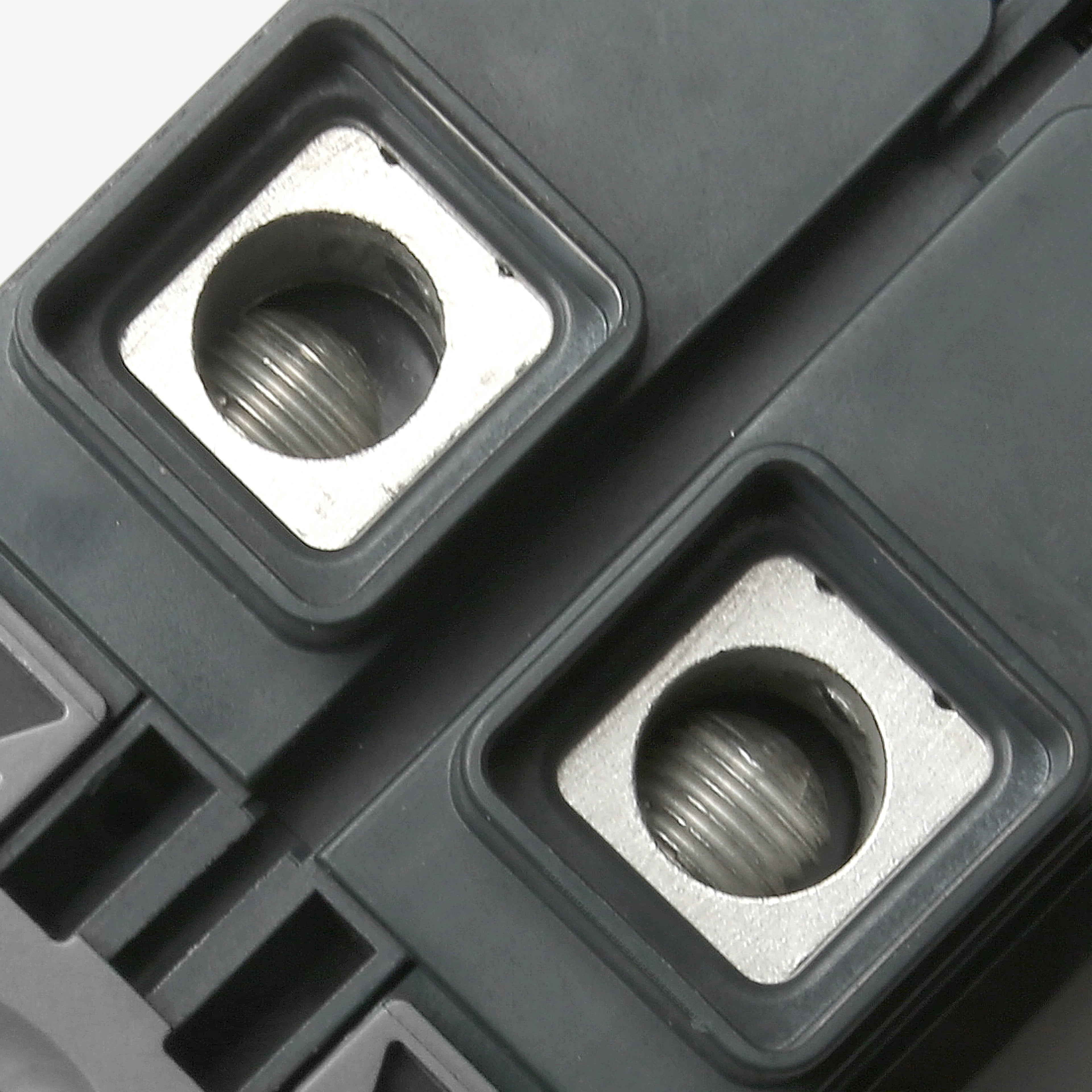

Wire Capacity

• Conductor Range: 14 AWG to 2/0 AWG
• Compatible Conductors: Copper (Cu) and Aluminum (Al)
• Maximum Wire Size: 2/0 AWG
• Minimum Wire Size: 14 AWG

Construction Features

• Current-Limiting Design
• HACR Rated
• Visual Trip Indicator
• AC Phase Connection (Y2 Suffix)
• Compact PowerPact B-Frame Construction

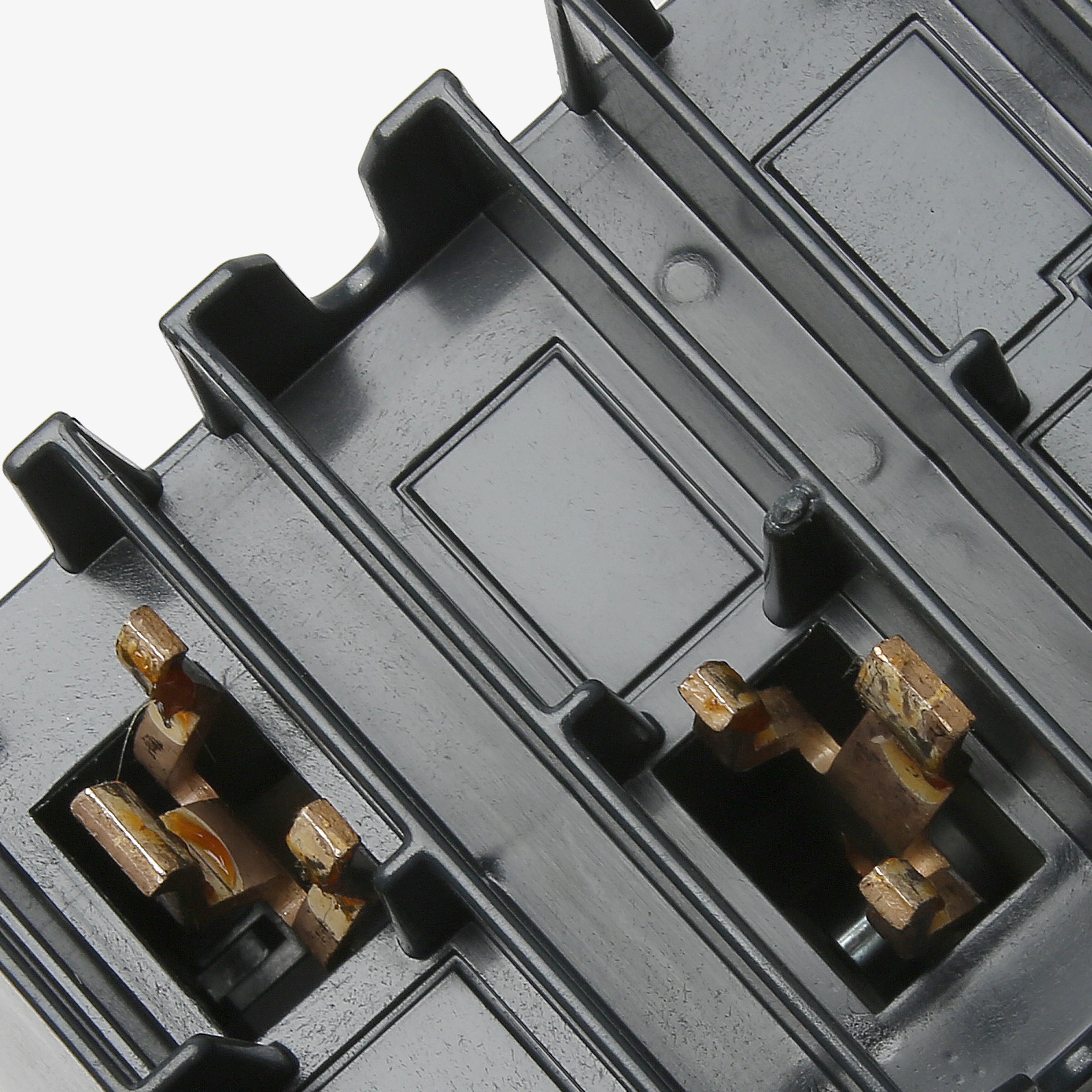

• I-Line Plug-On Installation

Available Accessories

• Shunt Trip
• Auxiliary Switch
• Undervoltage Release
• Alarm Switch
• Padlock Attachment
• Rotary Handle
• Motor Operator

Environmental Specifications

• Operating Temperature: -25°C to 70°C

Applications

• Square D I-Line Panelboards
• Square D Switchboards
• Commercial Power Distribution Systems
• Industrial Control Panels
• HVAC Equipment Protection
• Branch Circuit Protection
• OEM Electrical Equipment

Standards & Approvals

• UL 489
• CSA C22.2 No. 5
• EN/IEC 60947-2
• EN/IEC 60947-5-1
• NEMA AB 1
• GB 14048.2
• NMX J-266

Approvals:

• UL Listed
• CSA Certified
• CE Marked
• IEC Compliant
• NOM Certified
• CCC Approved
• EAC Approved
