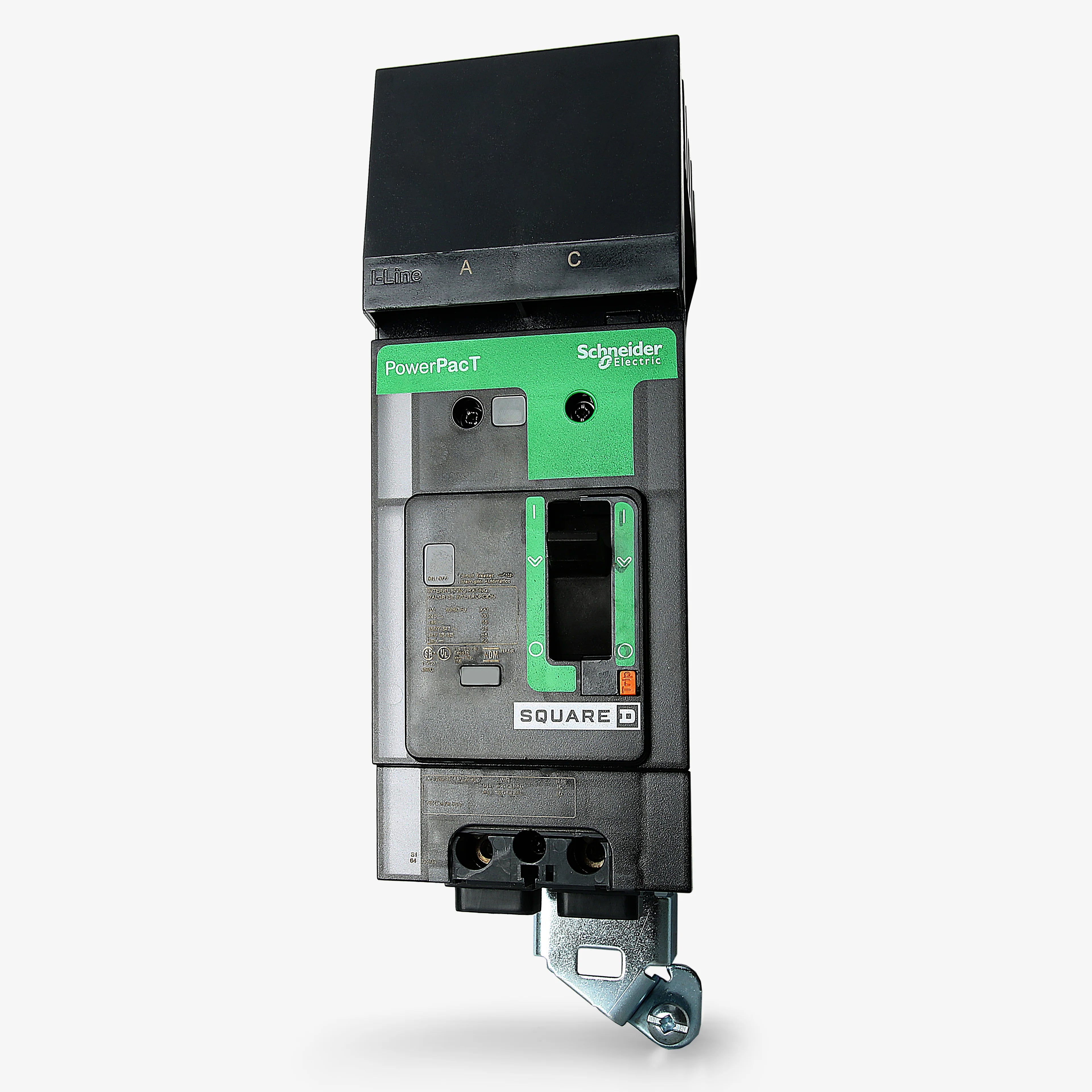

Square D BDA260152 PowerPact B Circuit Breaker – 2 Pole – 15A – Thermal Magnetic – I-Line – LI Protection

The Square D BDA260152 is a PowerPact B-frame molded case circuit breaker engineered for dependable overcurrent protection in commercial and industrial electrical systems. Manufactured by Schneider Electric, this 2-pole breaker utilizes thermal-magnetic trip technology to provide Long-Time and Instantaneous (LI) protection against overloads and short circuits.

Rated at 15A, the BDA260152 is designed for installation in Square D I-Line panelboards and switchboards. It features a factory-configured AC phase connection and serves as the direct replacement for the discontinued FA26015AC circuit breaker. Its compact design, current-limiting performance, and HACR rating make it an excellent choice for modern power distribution applications.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Series: BDA (PowerPact B-Frame)
• Part Number: BDA260152
• Type: Molded Case Circuit Breaker (MCCB)
• Amperage Rating: 15A
• Poles: 2
• Phase: 1 Phase
• Mounting Style: I-Line

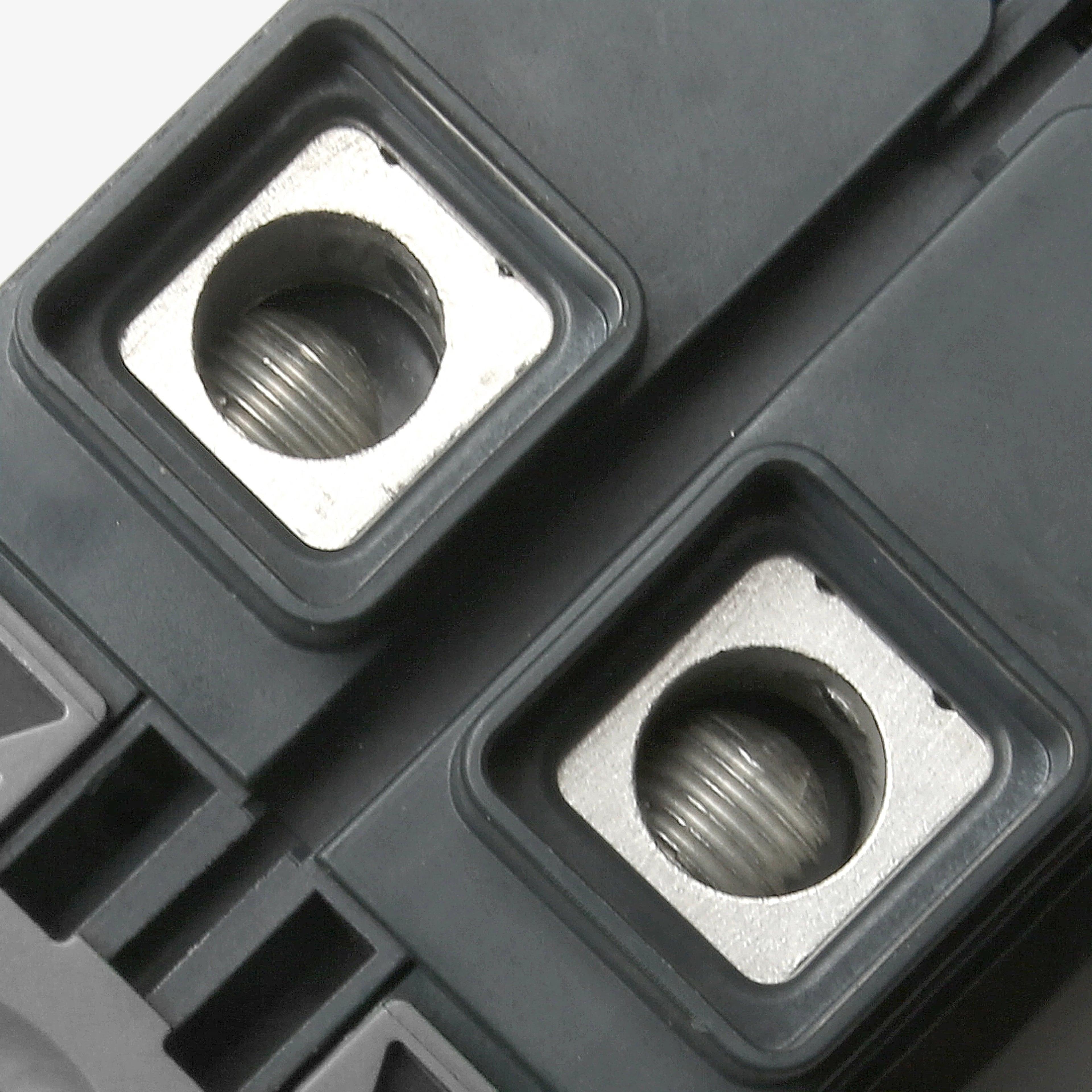

• Terminal Type: Lugs

Electrical Ratings

• Voltage Ratings:
  • 208Y/120VAC
  • 240VAC
  • 480Y/277VAC
  • 480VAC
  • 600Y/347VAC
  • 250VDC
• Interrupting Capacity (AIC):
  • 25kA @ 208Y/120VAC
  • 25kA @ 240VAC
  • 18kA @ 480Y/277VAC
  • 18kA @ 480VAC
  • 14kA @ 600Y/347VAC
  • 10kA @ 250VDC

Trip Unit Specifications

• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Functions: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Non-Interchangeable Trip Unit

Wire Capacity

• Conductor Range: 14 AWG to 2/0 AWG
• Compatible Conductors: Copper (Cu) and Aluminum (Al)
• Maximum Wire Size: 2/0 AWG
• Minimum Wire Size: 14 AWG

Construction Features

• HACR Rated
• Current-Limiting Design
• Reverse Feed Capable
• Factory-Configured AC Phase Connection
• Compact PowerPact B-Frame Construction

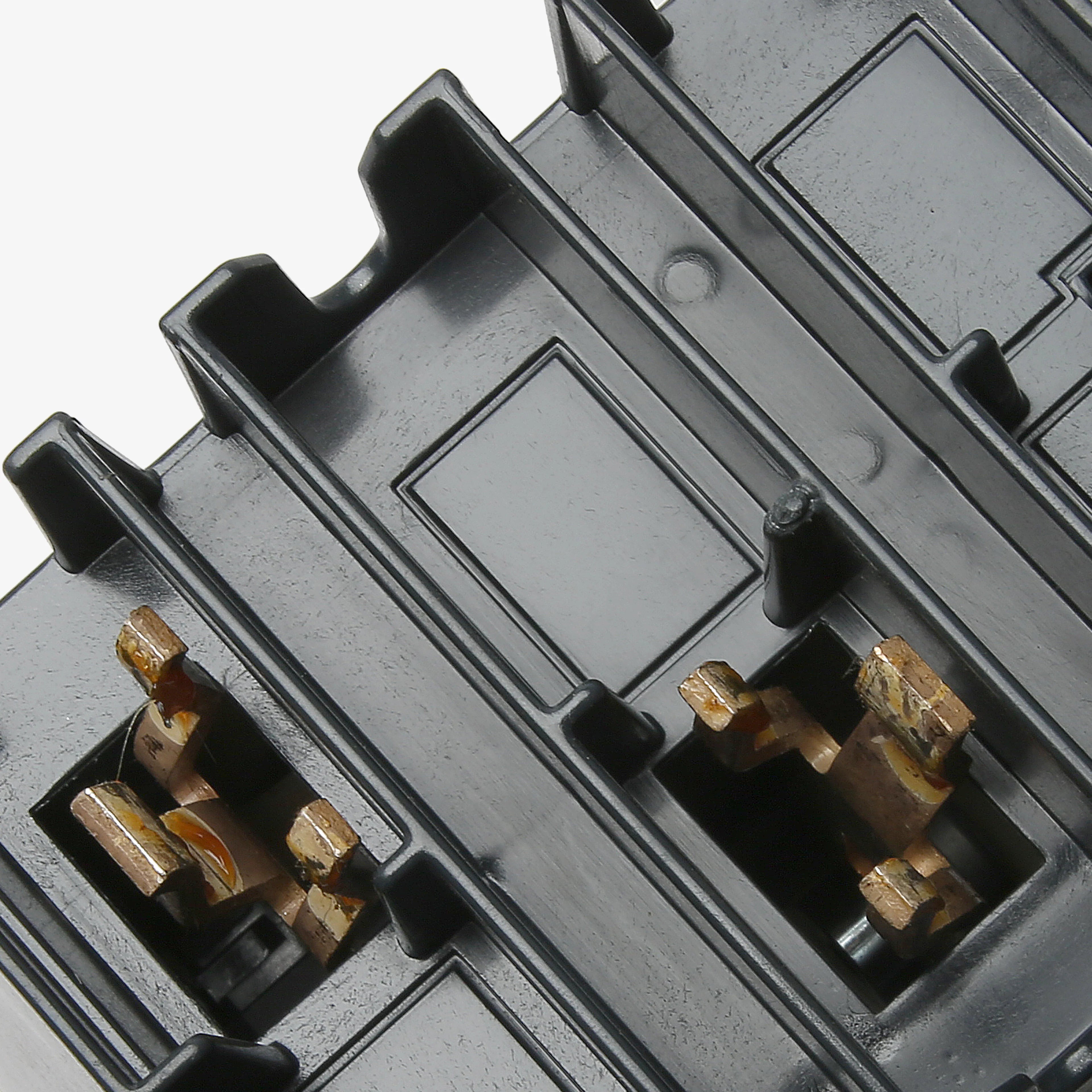

• I-Line Plug-On Mounting System

Available Options

• Shunt Trip
• Auxiliary Switch
• Undervoltage Release
• Alarm Switch
• Padlock Attachment
• Rotary Handle

Environmental Specifications

• Operating Temperature: -25°C to 70°C

Applications

• Square D I-Line Panelboards
• Square D Switchboards
• Commercial Power Distribution Systems
• Industrial Electrical Installations
• HVAC Equipment Protection
• Branch Circuit Protection
• OEM Electrical Equipment

Standards & Approvals

• UL 489
• CSA C22.2 No. 5
• IEC 60947-2
• NEMA AB 1
