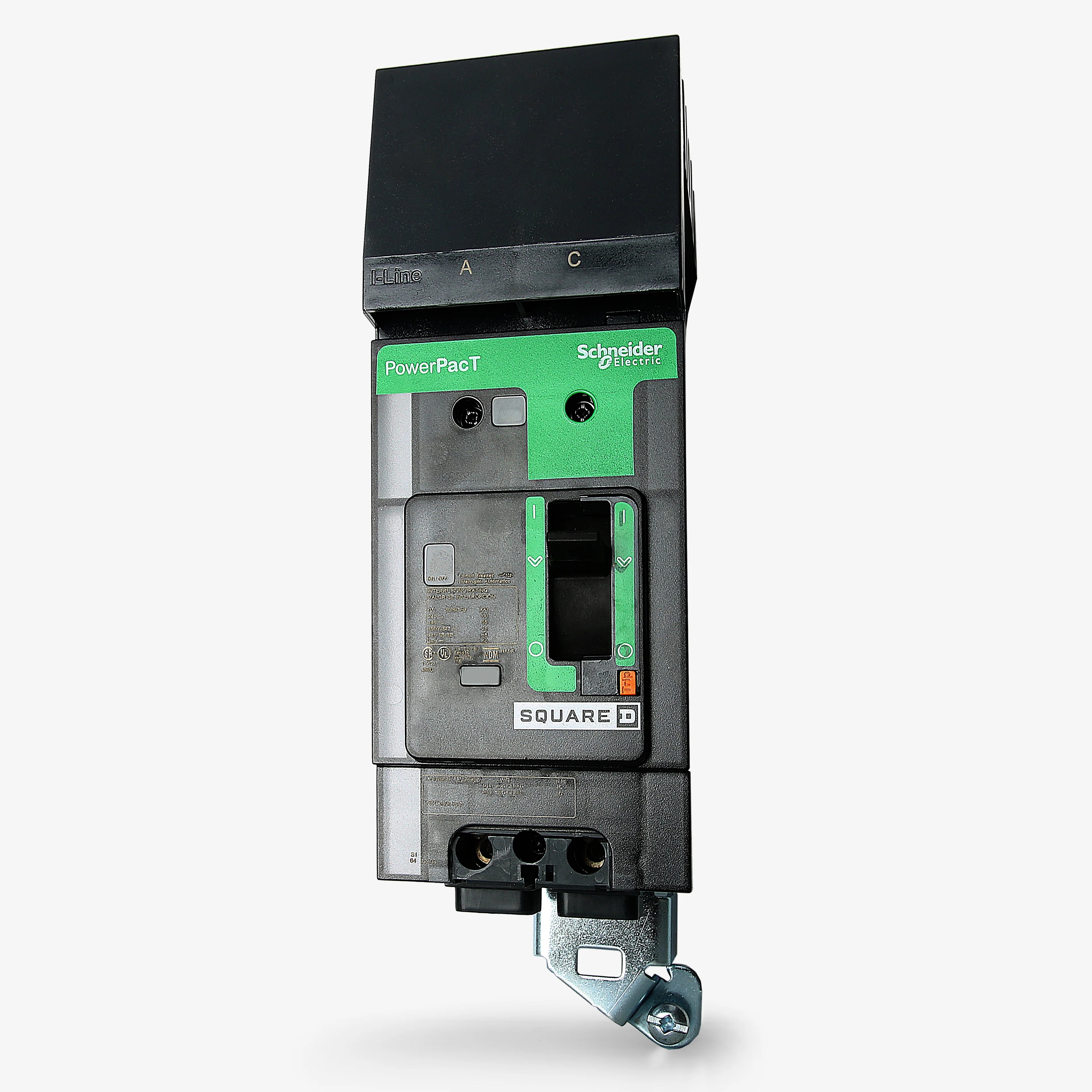

Square D BDA260701 PowerPact B Circuit Breaker – 2 Pole – 70A – Thermal Magnetic – I-Line – 600VAC

The Square D BDA260701 is a PowerPact B-frame molded case circuit breaker designed to provide dependable thermal-magnetic protection in commercial and industrial electrical distribution systems. Manufactured by Schneider Electric, this compact 2-pole breaker delivers Long-Time and Instantaneous (LI) protection against overloads and short circuits while supporting a wide range of PowerPact accessories and connection options.

Rated at 70A, the BDA260701 features an I-Line style plug-in connection for fast installation in compatible Square D I-Line panelboards and switchboards. The breaker incorporates dual-break rotating contacts that help reduce peak fault current during short-circuit conditions and includes an integral push-to-trip button for convenient testing and maintenance. Its AB phase connection and 600V-class rating make it suitable for demanding power distribution applications.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric / Square D
• Series: PowerPact B
• Part Number: BDA260701
• Family: PowerPact
• Type: B Frame Molded Case Circuit Breaker
• Category: Molded Case Breakers / 2-Pole
• Poles: 2
• Amperage Rating: 70A
• Phase: 1 Phase
• Connection Type: I-Line Style Plug-In

Electrical Ratings

• Voltage Rating: Up to 600VAC Class
• Interrupting Capacity:
  • 18kA @ 480VAC
  • 14kA @ 600Y/347VAC
• Continuous Current Rating: 80% Rated
• Protection Type: Thermal Magnetic
• Functions: Long-Time and Instantaneous (LI)

Trip Unit Specifications

• Trip Technology: Thermal Magnetic
• Trip Functions: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic

Connection Details

• Line Side: I-Line Plug-On Jaw
• Load Side: Mechanical Lugs
• Phase Connection: AB

Construction Features

• Compact PowerPact B-Frame Design
• Dual-Break Rotating Contacts
• Current-Limiting Performance
• Integral Push-to-Trip Button
• Shrouded I-Line Plug-On Jaw Connection
• Thermal-Magnetic Overcurrent Protection

Applications

• Square D I-Line Panelboards
• Square D I-Line Switchboards
• Commercial Electrical Distribution Systems
• Industrial Power Distribution Equipment
• Branch Circuit Protection
• HVAC Equipment Protection
• OEM Electrical Panels

Standards & Approvals

• UL Listed
• CSA Certified
• NOM Certified
• IEC Compliant
• CE Marked
