Square D BDA260802 PowerPact B Circuit Breaker – 2 Pole – 80A – Thermal Magnetic – I-Line – AC Phase Connection

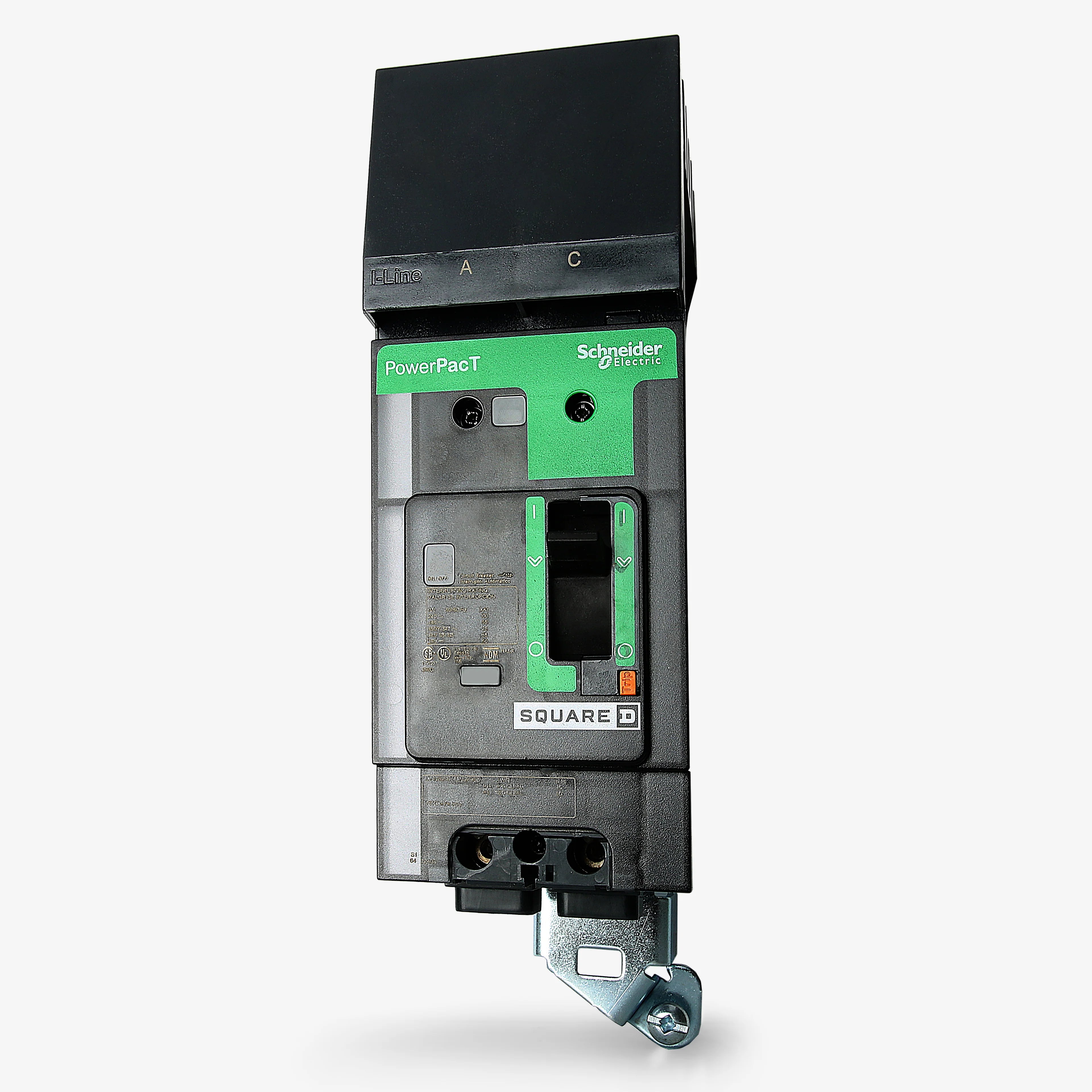

The Square D BDA260802 is a PowerPact B-frame molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial electrical distribution systems. Manufactured by Schneider Electric, this 2-pole, 80A breaker delivers dependable Long-Time and Instantaneous (LI) protection using fixed thermal-magnetic trip technology.

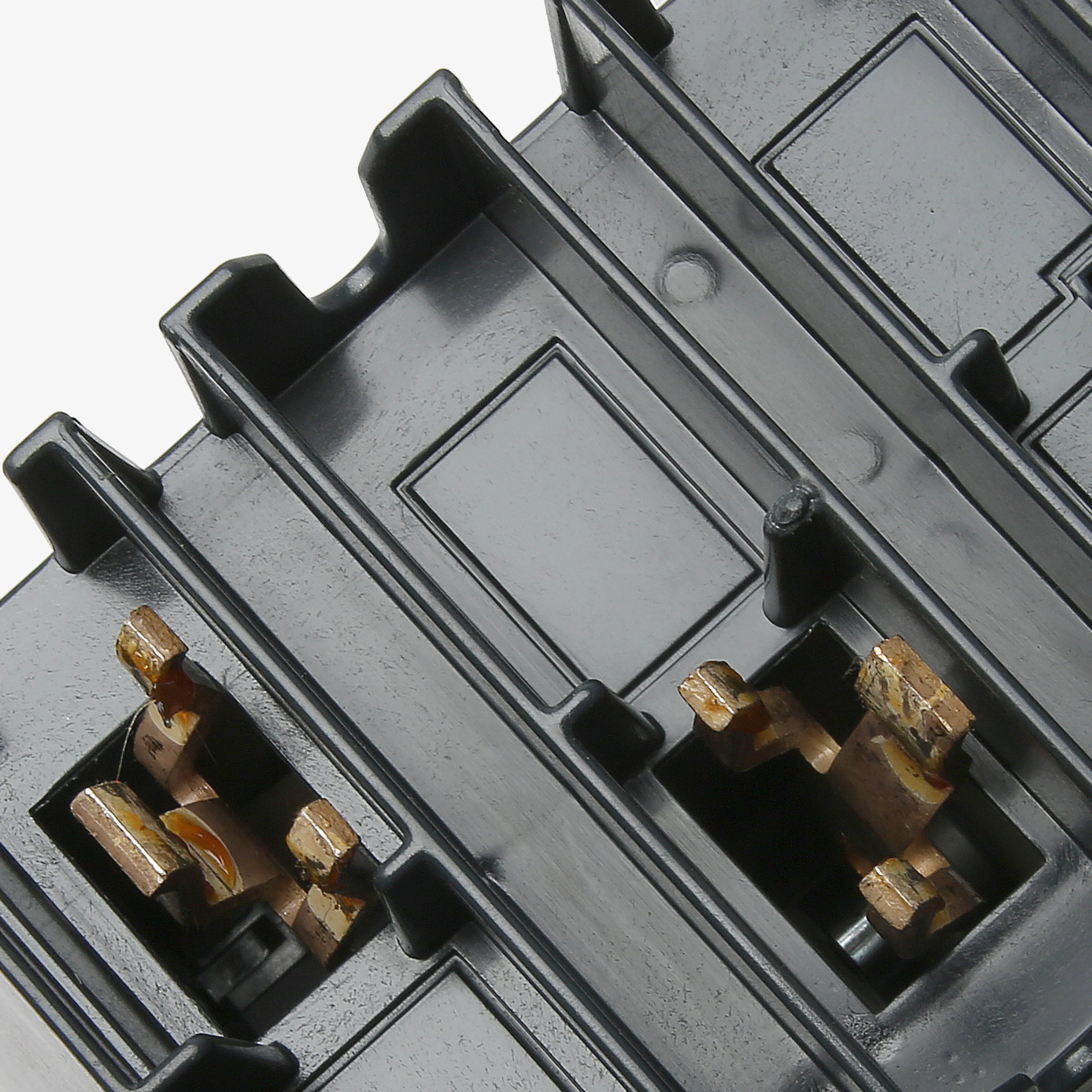

Engineered for Square D I-Line panelboards and switchboards, the BDA260802 features a plug-on I-Line mounting system that allows fast installation and easy replacement of legacy FA26080AC breakers. Its compact B-frame design supports efficient panel space usage while maintaining high interrupting performance. The breaker includes a visual trip indicator for quick fault identification and is configured with an AC phase connection for compatibility with existing systems.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Series: BDA (PowerPact B-Frame)
• Part Number: BDA260802
• Type: Molded Case Circuit Breaker (MCCB)
• Amperage Rating: 80A
• Poles: 2
• Phase: 1 Phase
• Mounting Style: I-Line
• Terminal Type: Lugs

Electrical Ratings

• Voltage Ratings:
  • 208Y/120VAC
  • 240VAC
  • 480Y/277VAC
  • 480VAC
  • 600Y/347VAC
  • 250VDC
• Interrupting Capacity (AIC):
  • 25kA @ 208Y/120VAC
  • 25kA @ 240VAC
  • 18kA @ 480Y/277VAC
  • 18kA @ 480VAC
  • 14kA @ 600Y/347VAC
  • 10kA @ 250VDC

Trip Unit Specifications

• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Functions: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic

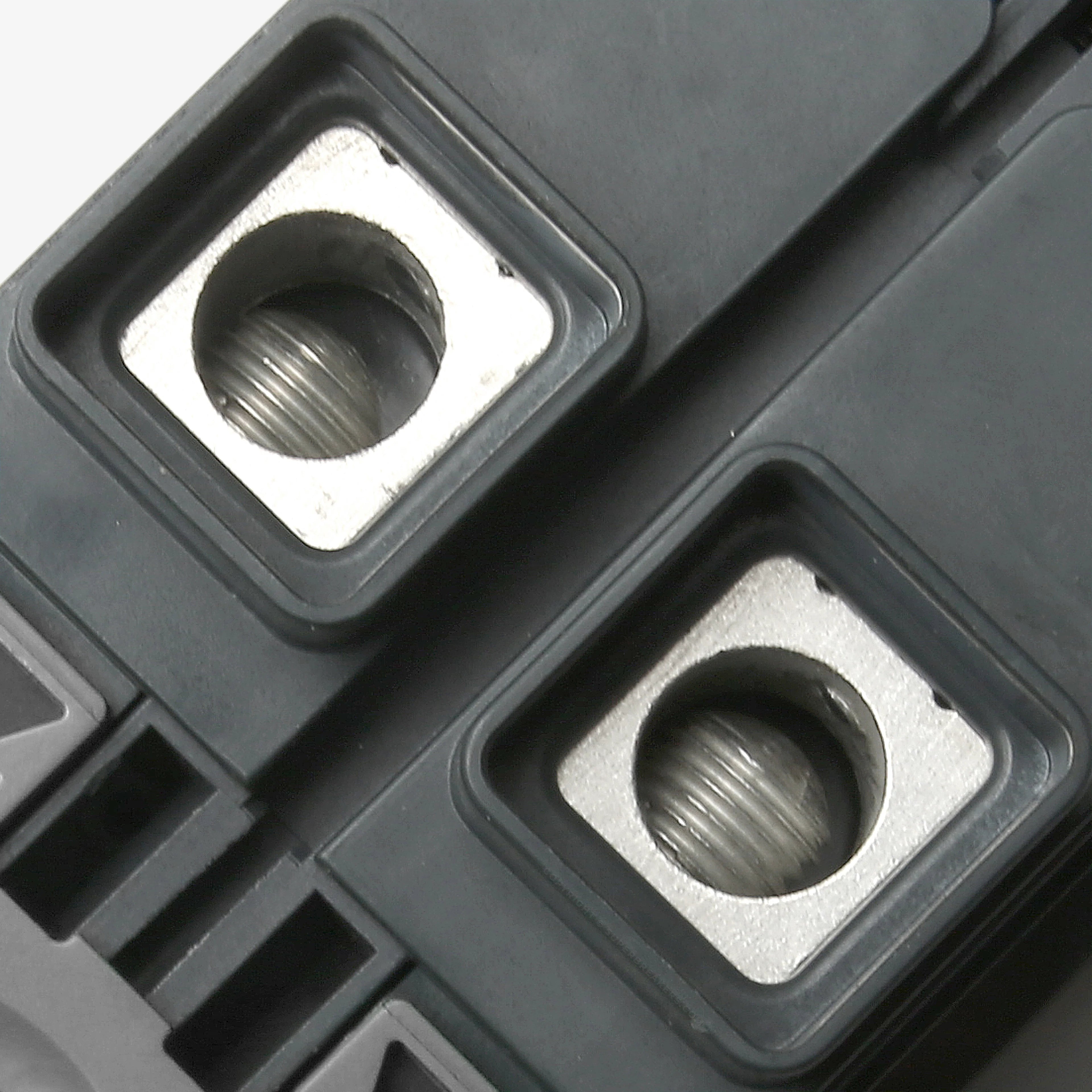

Wire Capacity

• Conductor Range: 14 AWG to 2/0 AWG
• Compatible Conductors: Copper (Cu) and Aluminum (Al)
• Maximum Wire Size: 2/0 AWG
• Minimum Wire Size: 14 AWG

Construction Features

• HACR Rated
• Visual Trip Indicator
• Compact PowerPact B-Frame Design
• Current-Limiting Performance
• I-Line Plug-On Mounting System
• Fixed Thermal-Magnetic Protection

Available Options

• Shunt Trip
• Auxiliary Switch
• Undervoltage Release
• Alarm Switch
• Padlock Attachment
• Rotary Handle

Accessories

• None Included

Environmental Specifications

• Operating Temperature: -25°C to 70°C

Applications

• Square D I-Line Panelboards
• Square D I-Line Switchboards
• Commercial Electrical Distribution Systems
• Industrial Power Systems
• HVAC Equipment Protection
• Branch Circuit Protection
• OEM Electrical Equipment

Standards & Approvals

• UL 489
• CSA C22.2 No. 5
• EN/IEC 60947-2
• NEMA AB 1

Approvals:

• UL Listed
• CSA Certified
• CE Marked
• IEC Compliant
• NOM Certified
• CCC Approved
• EAC Approved
