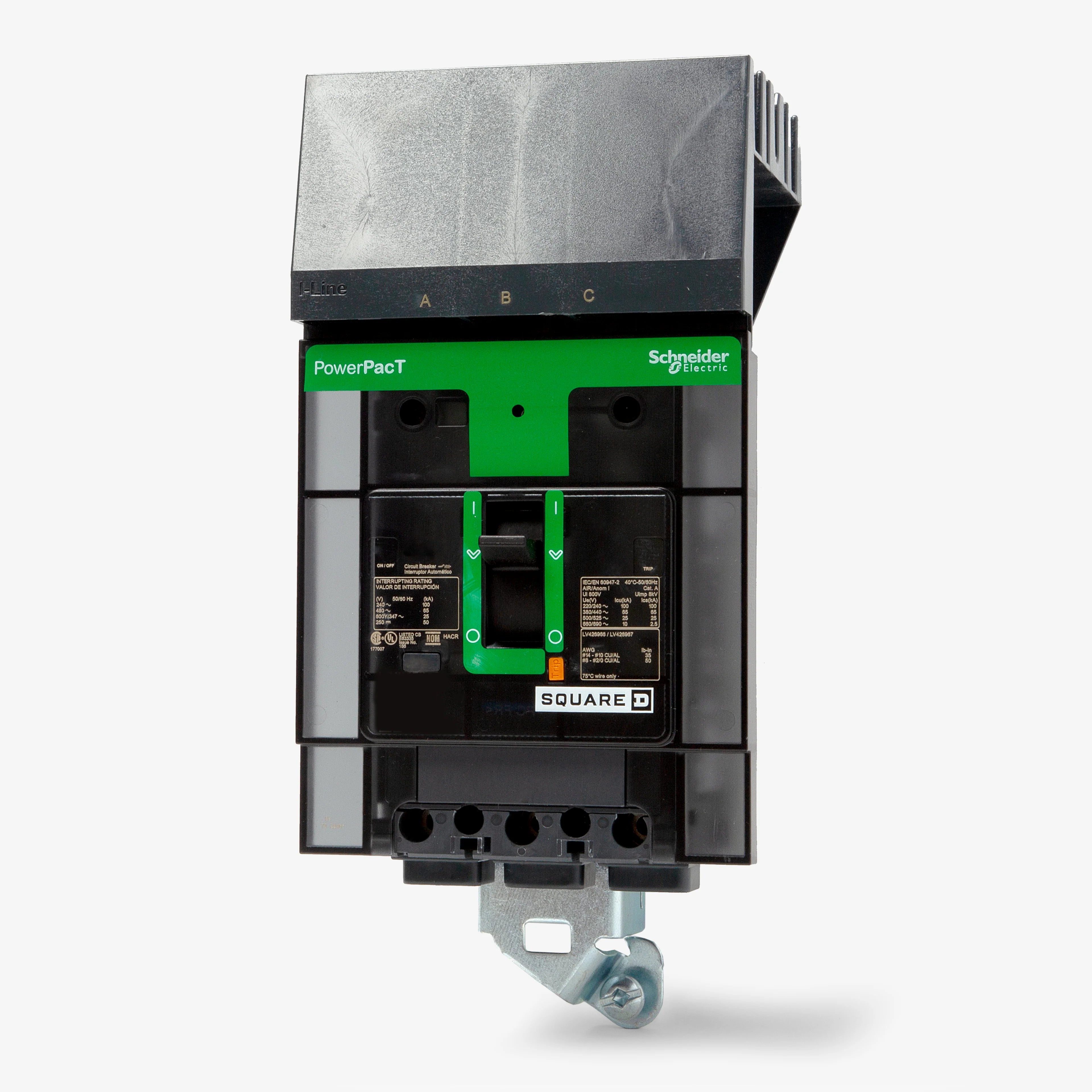

Square D BDA36060 PowerPact B Circuit Breaker – 3 Pole – 60A – Thermal Magnetic – I-Line – HACR Rated

The Square D BDA36060 is a PowerPact B-frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial three-phase electrical distribution systems. Manufactured by Schneider Electric, this 3-pole, 60A breaker provides thermal-magnetic (LI) protection, delivering dependable Long-Time and Instantaneous tripping for overload and short-circuit conditions.

Built for Square D I-Line panelboards and switchboards, the BDA36060 features a plug-on I-Line mounting system for fast installation and seamless replacement of legacy FA36060 breakers. Its compact B-frame design supports efficient panel space utilization while maintaining strong interrupting performance. The breaker includes a Visi-Trip indicator for quick fault identification and is HACR rated for HVAC and commercial applications.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric / Square D
• Series: BDA (PowerPact B-Frame)
• Part Number: BDA36060
• Type: Molded Case Circuit Breaker (MCCB)
• Poles: 3
• Amperage Rating: 60A
• Phase: 3 Phase
• Mounting Style: I-Line
• Terminal Type: Lugs

Electrical Ratings

• Voltage Ratings:
  • 208Y/120VAC
  • 240VAC
  • 480Y/277VAC
  • 480VAC
  • 600Y/347VAC
  • 250VDC
• Interrupting Capacity (AIC):
  • 25kA @ 208Y/120VAC
  • 25kA @ 240VAC
  • 18kA @ 480Y/277VAC
  • 18kA @ 480VAC
  • 14kA @ 600Y/347VAC
  • 10kA @ 250VDC

Trip Unit Specifications

• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Functions: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic

Construction Features

• HACR Rated
• Compact PowerPact B-frame design
• Current-limiting protection
• Visi-Trip visual indicator
• Integrated I-Line plug-on mounting system
• Designed for easy replacement of legacy FA36060 breakers

Wire Capacity

• Conductor Range: 14 AWG to 2/0 AWG
• Compatible Conductors: Copper (Cu) and Aluminum (Al)
• Maximum Wire Size: 2/0 AWG
• Minimum Wire Size: 14 AWG

Applications

• Commercial electrical distribution systems
• Industrial three-phase power systems
• Square D I-Line panelboards and switchboards
• HVAC equipment protection
• Motor branch circuit protection
• OEM electrical equipment

Standards & Approvals

• UL 489
• CSA C22.2 No. 5
• EN/IEC 60947-2
• GB 14048.2
• NEMA AB 1
• NMX J-266

Approvals:

• UL Listed
• CSA Certified
• CE Marked
• IEC Compliant
• CCC Approved
• EAC Approved
• NOM Certified
