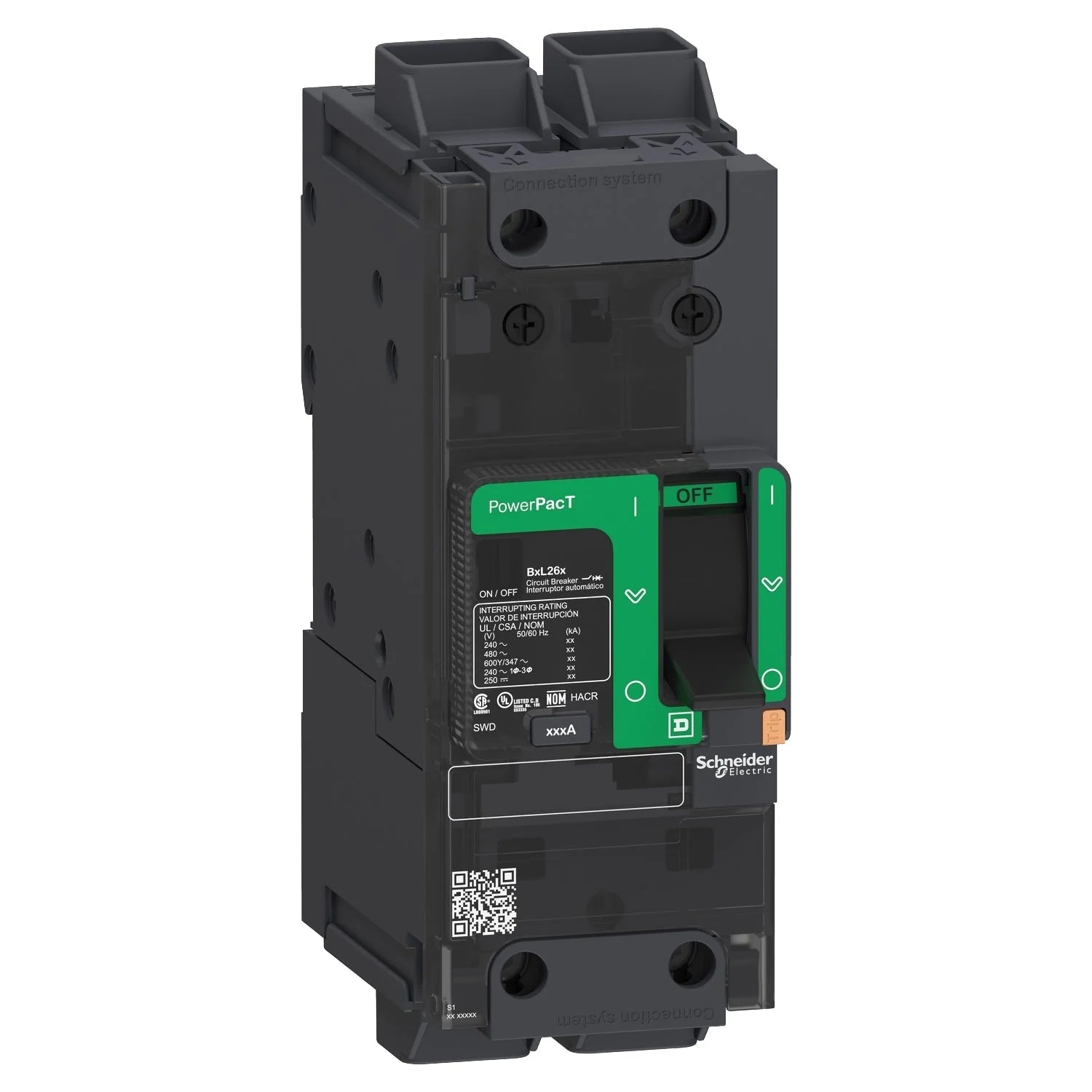

Square D BDL26040 PowerPact B Circuit Breaker – 2 Pole – 40A – Thermal Magnetic – Feed-Thru – 600V Class

The Square D BDL26040 is a PowerPact B-frame molded case circuit breaker manufactured by Schneider Electric, designed for reliable overcurrent protection in commercial and industrial electrical distribution systems. This 2-pole, 40A breaker provides thermal-magnetic protection with Long-Time and Instantaneous (LI) tripping to safeguard circuits against overloads and short-circuit faults.

Built for flexible installation, the BDL26040 features a feed-thru configuration and supports both traditional back-pan mounting and DIN rail installation. Its compact B-frame design allows efficient use of panel space while maintaining strong interrupting performance. The breaker includes EverLink lug technology on termination points, helping ensure consistent torque retention and long-term connection reliability.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric / Square D
• Series: PowerPact B (B-Frame)
• Part Number: BDL26040
• Type: Molded Case Circuit Breaker (MCCB)
• Poles: 2
• Amperage Rating: 40A
• Phase: 1 Phase
• Voltage Rating: 600V Class (up to 600Y/347VAC systems)
• Mounting Style: Feed-Thru / Panel Mount / DIN Rail Compatible
• Terminal Type: EverLink Lugs (Both Ends)

Electrical Ratings

• Interrupting Capacity (AIC):
  • 18kA @ 480VAC
  • 14kA @ 600Y/347VAC
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Continuous Current Rating: 80% Rated

Connection Details

• Connection Type: Feed-Thru
• Termination: EverLink Lug System
• Installation Options: Back-pan screw mount or DIN rail mounting

Construction Features

• Compact PowerPact B-frame design
• Dual-break rotating contact system
• Current-limiting protection
• Push-to-trip manual operation button
• EverLink lug technology for improved cable retention
• Flexible installation options (DIN rail or panel mount)

Applications

• Industrial electrical distribution systems
• Commercial power panels
• OEM control panels
• Branch circuit protection
• Motor control and HVAC systems
• Square D Power distribution assemblies

Standards & Approvals

• UL 489
• CSA C22.2 No. 5
• IEC 60947-2
• NEMA AB 1
• NOM, CE compliant

Approvals:

• UL Listed
• CSA Certified
• CE Marked
• IEC Compliant
