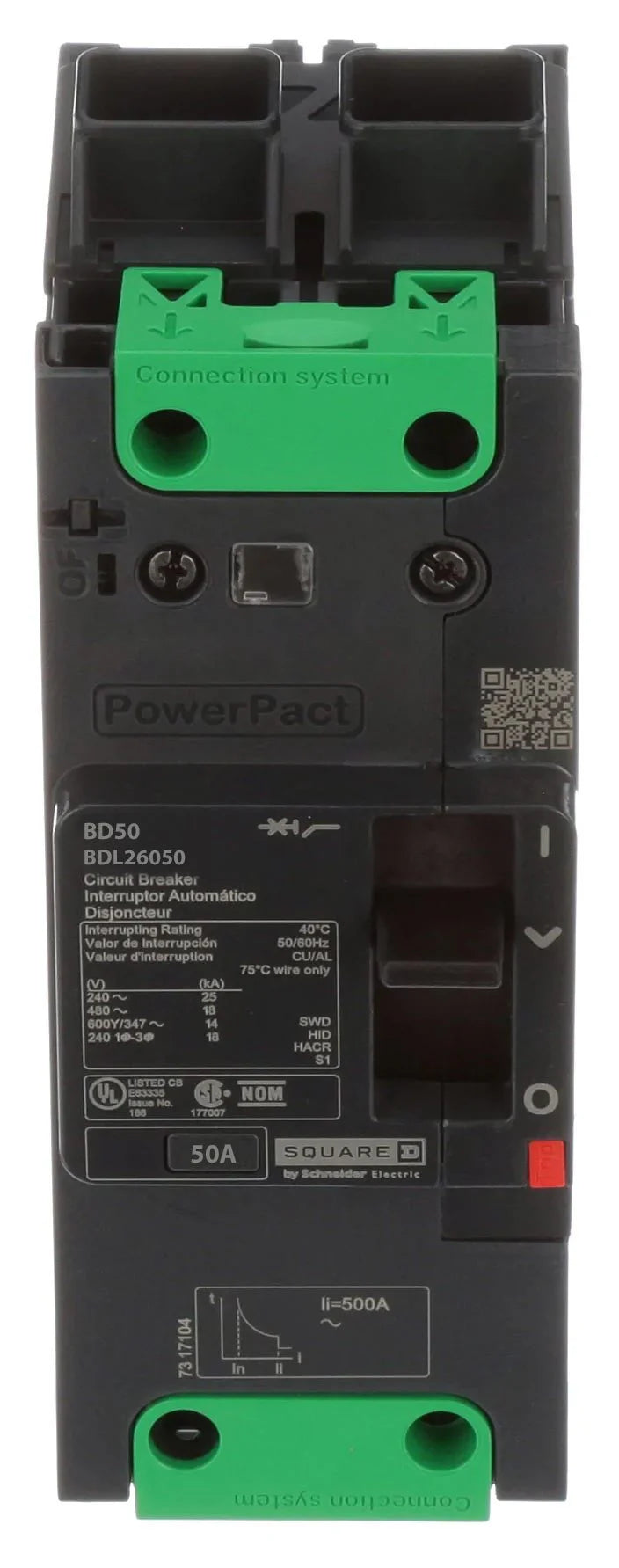

Square D BDL26050 PowerPact B Circuit Breaker – 2 Pole – 50A – Thermal Magnetic – Feed-Thru – EverLink Terminals

The Square D BDL26050 is a PowerPact B-frame molded case circuit breaker manufactured by Schneider Electric, designed for dependable overcurrent protection in industrial and commercial electrical distribution systems. This 2-pole, 50A breaker provides thermal-magnetic (LI) protection, delivering Long-Time and Instantaneous tripping to safeguard electrical circuits from overloads and short-circuit faults.

Engineered with a feed-thru configuration, the BDL26050 offers flexible installation options including DIN rail mounting or screw-plate mounting. It features EverLink lug technology on both line and load sides, ensuring consistent connection integrity and reduced loosening over time. Its compact B-frame design supports efficient panel space utilization while maintaining reliable interrupting performance.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Series: PowerPact B (BDL Type)
• Part Number: BDL26050
• Type: Molded Case Circuit Breaker (MCCB)
• Poles: 2
• Amperage Rating: 50A
• Phase: 1 Phase
• Voltage Rating: 600V Class (up to 600Y/347VAC systems)
• Mounting Style: Feed-Thru / DIN Rail / Screw Mount
• Terminal Type: EverLink Lugs (Line and Load)

Electrical Ratings

• Interrupting Capacity (AIC):
  • 18kA @ 480VAC
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Continuous Current Rating: 80% Rated

Connection Details

• Connection Type: Feed-Thru
• Line/Load Termination: EverLink Lug System
• Installation Options: 35 mm DIN rail or screw mounting plate

Construction Features

• Compact PowerPact B-frame design
• Non-interchangeable trip unit
• Dual-break contact system
• Current-limiting protection
• EverLink terminal technology (line & load sides)
• Toggle operating control

Wire Capacity

• Conductor Range:
  • Flexible Al/Cu: AWG 6 to 2/0
  • Rigid/Stranded Al/Cu: AWG 14 to 3/0

Applications

• Industrial power distribution systems
• Commercial electrical panels
• OEM control panels
• HVAC and motor branch circuits
• General feeder and branch protection
• Square D distribution assemblies

Standards & Approvals

• UL 489
• CSA Certified
• IEC 60947-2 compliant
• NEMA AB 1
• CE compliant

Approvals:

• UL Listed
• CSA Approved
• CE Marked
