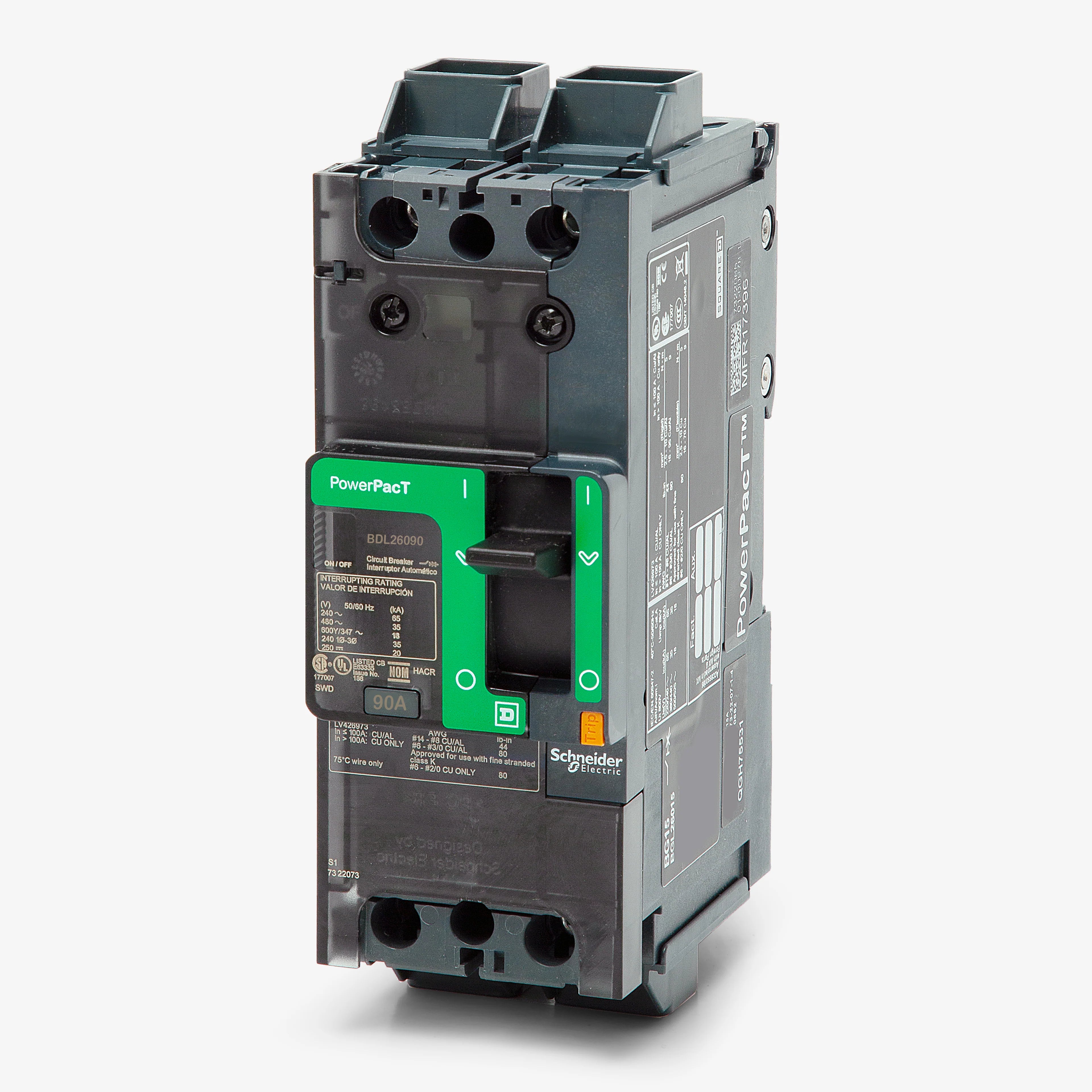

Square D BDL26090 PowerPact B Circuit Breaker – 2 Pole – 90A – Thermal Magnetic – Unit Mount – EverLink Terminals

The Square D BDL26090 is a PowerPact B-frame molded case circuit breaker manufactured by Schneider Electric, designed for dependable overcurrent protection in industrial distribution systems and control panels. This 2-pole, 90A breaker delivers thermal-magnetic protection with fixed Long-Time and Instantaneous (LI) trip functions, ensuring reliable response to overload and short-circuit conditions.

Designed as a unit-mount breaker, the BDL26090 installs directly into industrial control panels using integrated DIN rail or screw mounting options. It is commonly used as a drop-in replacement for legacy FAL26090 breakers. The compact B-frame design provides efficient space utilization while maintaining strong interrupting performance and system reliability.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Series: PowerPact B (BDL Type)
• Part Number: BDL26090
• Type: Molded Case Circuit Breaker (MCCB)
• Poles: 2
• Amperage Rating: 90A
• Phase: 1 Phase
• Voltage Rating: 600V Class (up to 600Y/347VAC systems)
• Mounting Style: Unit Mount (DIN rail compatible)
• Terminal Type: EverLink Lugs

Electrical Ratings

• Interrupting Capacity (AIC):
  • 25kA @ 208Y/120VAC
  • 25kA @ 240VAC
  • 18kA @ 480Y/277VAC
  • 18kA @ 480VAC
  • 14kA @ 600Y/347VAC
  • 10kA @ 250VDC
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Adjustability: Fixed Thermal, Fixed Magnetic

Connection Details

• Mounting Style: Unit Mount / DIN Rail Compatible
• Terminal Type: EverLink creep-compensating lugs
• Conductor Range: 14 AWG to 3/0 AWG (Al/Cu)
• Maximum Wire Size: 3/0 AWG
• Minimum Wire Size: 14 AWG

Construction Features

• Compact PowerPact B-frame design
• Trip-free mechanism
• Current-limiting protection
• EverLink lug technology for long-term connection stability
• Integrated DIN rail mounting system
• Terminal shields and phase barrier compatibility
• RoHS compliant, mercury-free, PVC-free construction

Available Options

• Shunt Trip
• Auxiliary Switch
• Undervoltage Release
• Alarm Switch
• Rotary Handle
• Motor Operator
• Terminal Shields
• Phase Barriers

Accessories

• EverLink Lug System

Applications

• Industrial distribution panels
• Commercial electrical systems
• Control panel assemblies
• Switchboards
• Motor branch circuit protection
• OEM electrical equipment
• Replacement of legacy FAL series breakers

Standards & Approvals

• UL 489
• CSA C22.2 No. 5
• EN/IEC 60947-2
• NEMA AB 1
• IEC compliant
• CE, CCC, EAC, NOM approved

Environmental Specifications

• Operating Temperature: -25°C to 70°C
