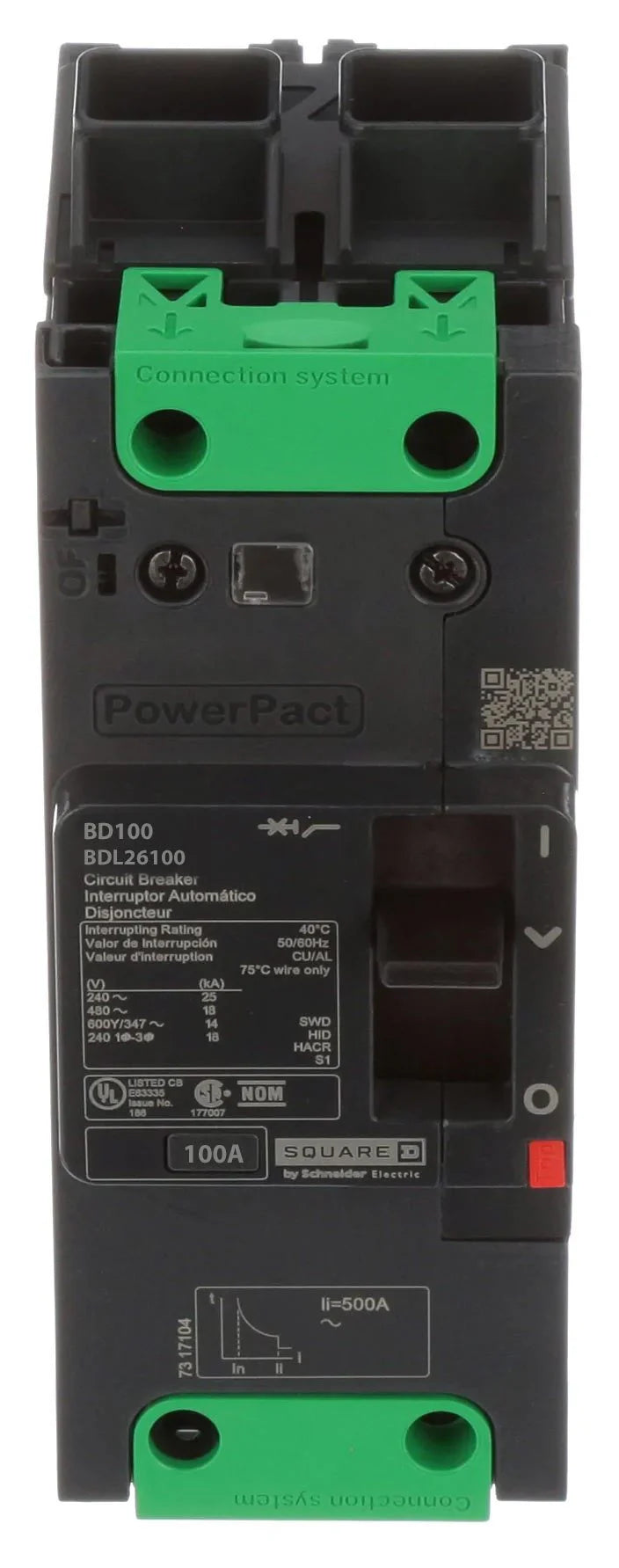

Square D BDL26100 PowerPact B Circuit Breaker – 2 Pole – 100A – Thermal Magnetic – Feed-Thru – EverLink Terminals

The Square D BDL26100 is a PowerPact B-frame molded case circuit breaker manufactured by Schneider Electric, designed for reliable overcurrent protection in industrial and commercial electrical distribution systems. This 2-pole, 100A breaker provides thermal-magnetic (LI) protection with fixed Long-Time and Instantaneous tripping, ensuring dependable response to overload and short-circuit conditions.

Built in a feed-thru configuration, the BDL26100 supports flexible installation using DIN rail mounting or screw plate mounting. Its EverLink lug technology on both line and load sides improves long-term connection stability by reducing conductor loosening due to thermal cycling and vibration. The compact B-frame design provides efficient panel space utilization while maintaining strong interrupting performance.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Series: PowerPact B (BDL Type)
• Part Number: BDL26100
• Type: Molded Case Circuit Breaker (MCCB)
• Poles: 2
• Amperage Rating: 100A
• Phase: 1 Phase
• Voltage Rating: 600V Class (up to 600Y/347VAC systems)
• Mounting Style: Feed-Thru / DIN Rail / Screw Plate
• Terminal Type: EverLink Lugs (Line and Load)

Electrical Ratings

• Interrupting Capacity (AIC):
  • 18kA @ 480VAC
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Continuous Current Rating: 80% Rated

Connection Details

• Connection Type: Feed-Thru
• Line/Load Termination: EverLink Lug System
• Installation Options: 35 mm DIN rail or screw plate mounting

Construction Features

• Compact PowerPact B-frame design
• Dual-break rotating contact system
• Current-limiting protection
• Push-to-trip manual test function
• EverLink creep-compensating lug technology
• Non-interchangeable trip unit
• Toggle operating mechanism

Wire Capacity

• Flexible Al/Cu: AWG 6 to 2/0
• Rigid/Stranded Al/Cu: AWG 14 to 3/0

Applications

• Industrial electrical distribution systems
• Commercial power panels
• OEM control panels
• HVAC and motor branch circuits
• Feeder and branch protection
• Square D PowerPact panel assemblies

Standards & Approvals

• UL 489
• CSA Certified
• IEC 60947-2 compliant
• NEMA AB 1
• CE compliant

Approvals:

• UL Listed
• CSA Approved
