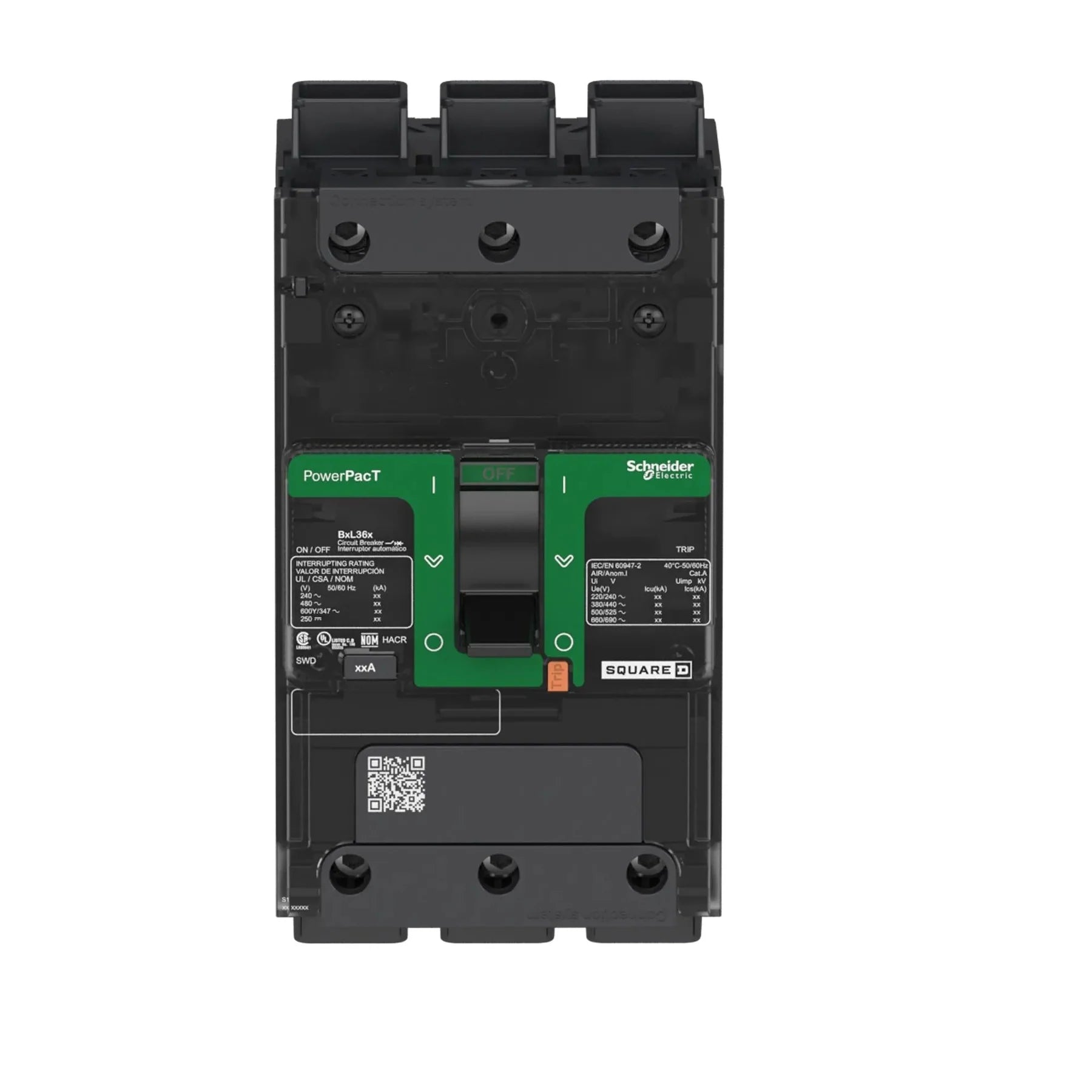

Square D BDL36015 PowerPact B Circuit Breaker – 3 Pole – 15A – Thermal Magnetic – Feed-Thru – EverLink Terminals

The Square D BDL36015 is a PowerPact B-frame molded case circuit breaker manufactured by Schneider Electric, designed for reliable overcurrent protection in commercial and industrial three-phase electrical distribution systems. This 3-pole, 15A breaker provides thermal-magnetic (LI) protection, delivering dependable Long-Time and Instantaneous tripping for overload and short-circuit conditions.

Engineered with a feed-thru configuration, the BDL36015 offers flexible installation options including DIN rail mounting or screw-plate mounting. Its EverLink lug technology on both line and load sides improves long-term connection stability by reducing conductor loosening caused by vibration and thermal cycling. The compact B-frame design allows efficient use of panel space while maintaining strong interrupting performance.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric / Square D
• Series: PowerPact B (BDL Type)
• Part Number: BDL36015
• Type: Molded Case Circuit Breaker (MCCB)
• Poles: 3
• Amperage Rating: 15A
• Phase: 3 Phase
• Voltage Rating: 600V Class (up to 600Y/347VAC systems)
• Mounting Style: Feed-Thru / DIN Rail / Screw Mount
• Terminal Type: EverLink Lugs (Line and Load)

Electrical Ratings

• Interrupting Capacity (AIC):
  • 18kA @ 480VAC
  • 14kA @ 600Y/347VAC
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Continuous Current Rating: 80% Rated

Connection Details

• Connection Type: Feed-Thru
• Line/Load Termination: EverLink Lug System
• Installation Options: Back-pan screw mount or DIN rail mounting

Construction Features

• Compact PowerPact B-frame design
• Dual-break rotating contact system
• Current-limiting protection
• Push-to-trip manual test button
• EverLink terminal technology (line and load sides)
• Non-interchangeable trip unit

Applications

• Industrial electrical distribution systems
• Commercial power panels
• OEM control panels
• HVAC systems and motor control circuits
• Branch and feeder protection
• Square D PowerPact panel assemblies

Standards & Approvals

• UL 489
• CSA C22.2 No. 5
• IEC 60947-2
• NEMA AB 1
• CE, CCC, NOM compliant

Approvals:

• UL Listed
• CSA Certified
• CE Marked
• IEC Compliant
