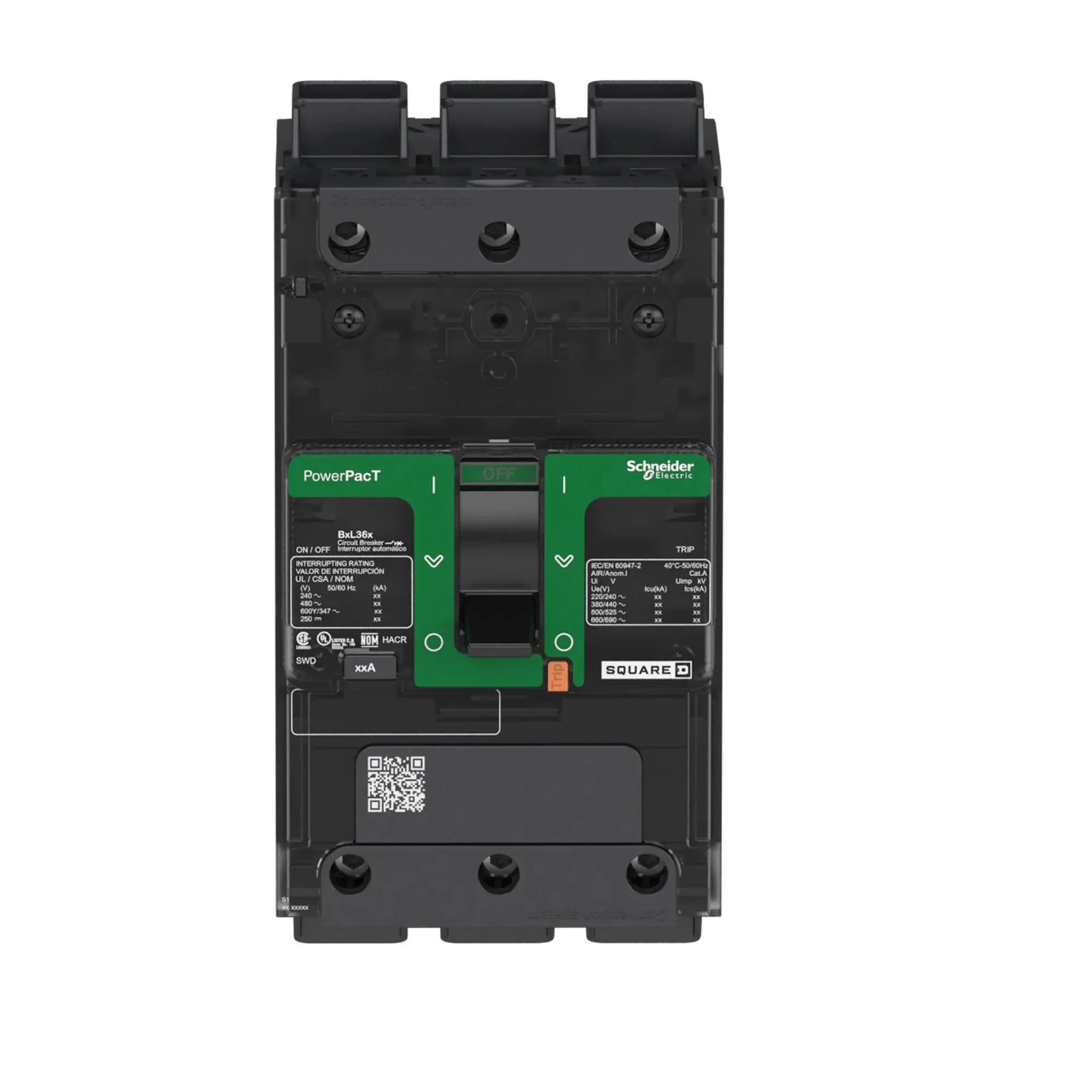

Square D BDL36020LU PowerPact B Circuit Breaker – 3 Pole – 20A – Thermal Magnetic – Feed-Thru – EverLink Terminals

The Square D BDL36020LU is a PowerPact B-frame molded case circuit breaker manufactured by Schneider Electric, designed for reliable overcurrent protection in commercial and industrial three-phase electrical distribution systems. This 3-pole, 20A breaker provides thermal-magnetic (LI) protection with fixed Long-Time and Instantaneous tripping, ensuring dependable operation under overload and short-circuit conditions.

This LU variant features an enhanced feed-thru design with EverLink terminals and an additional control wire terminal on the line-side EverLink lug, making it suitable for applications requiring auxiliary control wiring integration. The breaker supports flexible installation via DIN rail or screw-plate mounting and maintains compact B-frame efficiency for space-saving panel design.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric / Square D
• Series: PowerPact B (BDL Type)
• Part Number: BDL36020LU
• Type: Molded Case Circuit Breaker (MCCB)
• Poles: 3
• Amperage Rating: 20A
• Phase: 3 Phase
• Voltage Rating: 600V Class (up to 600Y/347VAC systems)
• Mounting Style: Feed-Thru / DIN Rail / Screw Mount
• Terminal Type: EverLink Lugs (Line and Load)

Electrical Ratings

• Interrupting Capacity (AIC):
  • 18kA @ 480VAC
  • 14kA @ 600Y/347VAC
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Continuous Current Rating: 80% Rated

Connection Details

• Connection Type: Feed-Thru
• Line/Load Termination: EverLink Lug System
• Special Feature: Control wire terminal on line-side EverLink lug
• Installation Options: DIN rail or screw-plate mounting

Construction Features

• Compact PowerPact B-frame design
• Dual-break rotating contact system
• Current-limiting protection
• Push-to-trip manual test button
• EverLink creep-compensating lug technology
• Non-interchangeable trip unit
• Enhanced LU control wiring capability

Applications

• Industrial electrical distribution systems
• Commercial power panels
• OEM control panels
• HVAC and motor control circuits
• Branch and feeder protection
• Automation systems requiring control wiring integration
• Square D PowerPact panel assemblies

Standards & Approvals

• UL 489
• CSA C22.2 No. 5
• IEC 60947-2
• NEMA AB 1
• CE compliant
• NOM certified

Approvals:

• UL Listed
• CSA Certified
• CE Marked
• IEC Compliant
