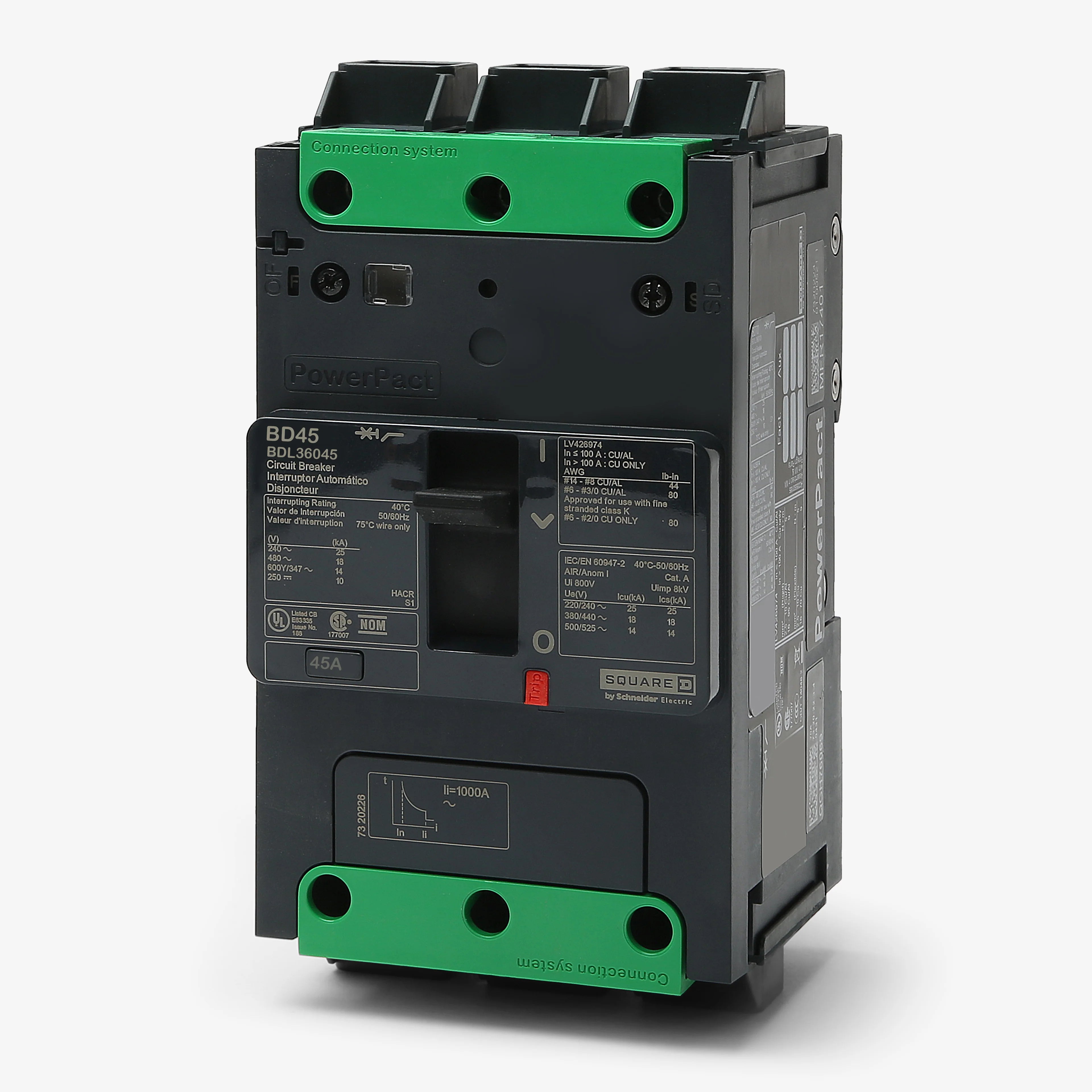

Square D BDL36045 PowerPact B Circuit Breaker – 3 Pole – 45A – Thermal Magnetic – Unit Mount – EverLink Terminals

The Square D BDL36045 is a PowerPact B-frame molded case circuit breaker manufactured by Schneider Electric, designed to provide reliable overcurrent protection for industrial and commercial three-phase electrical distribution systems. This 3-pole, 45A breaker delivers thermal-magnetic (LI) protection with fixed Long-Time and Instantaneous trip functions, ensuring dependable performance under overload and short-circuit conditions.

Built as a unit-mount device, the BDL36045 supports flexible installation using DIN rail or back-pan mounting systems. It is designed as a direct replacement for legacy FAL36045 breakers, making it suitable for retrofit applications in existing switchboards. Its EverLink lug technology helps prevent conductor loosening caused by vibration and thermal cycling, improving long-term connection stability.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Series: PowerPact B (BDL Type)
• Part Number: BDL36045
• Type: Molded Case Circuit Breaker (MCCB)
• Poles: 3
• Amperage Rating: 45A
• Phase: 3 Phase
• Voltage Rating: 600V Class (up to 600Y/347VAC systems)
• Mounting Style: Unit Mount (DIN rail / back-pan compatible)
• Terminal Type: EverLink Lugs

Electrical Ratings

• Interrupting Capacity (AIC):
  • 18kA @ 480VAC
  • 14kA @ 600Y/347VAC
  • 25kA @ 240VAC (as specified)
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Continuous Current Rating: 80% Rated

Connection Details

• Connection Type: Unit Mount
• Line/Load Termination: EverLink Lug System
• Installation Options: DIN rail or back-pan mounting
• Retrofit Compatibility: Replaces legacy FAL36045 units

Construction Features

• Compact PowerPact B-frame design
• Dual-break rotating contact system
• Current-limiting protection
• Push-to-trip manual test function
• EverLink creep-compensating lug technology
• High vibration resistance connection system
• Non-interchangeable trip unit

Applications

• Industrial electrical distribution systems
• Commercial switchboards
• OEM control panels
• HVAC and motor load circuits
• Branch and feeder protection
• Retrofit replacement installations
• Square D PowerPact assemblies

Standards & Approvals

• UL 489
• CSA C22.2 No. 5
• IEC 60947-2
• NEMA AB 1
• GB 14048.2
• NMX J-266
• CE compliant
• NOM certified

Approvals:

• UL Listed
• CSA Certified
• CE Marked
• IEC Compliant
