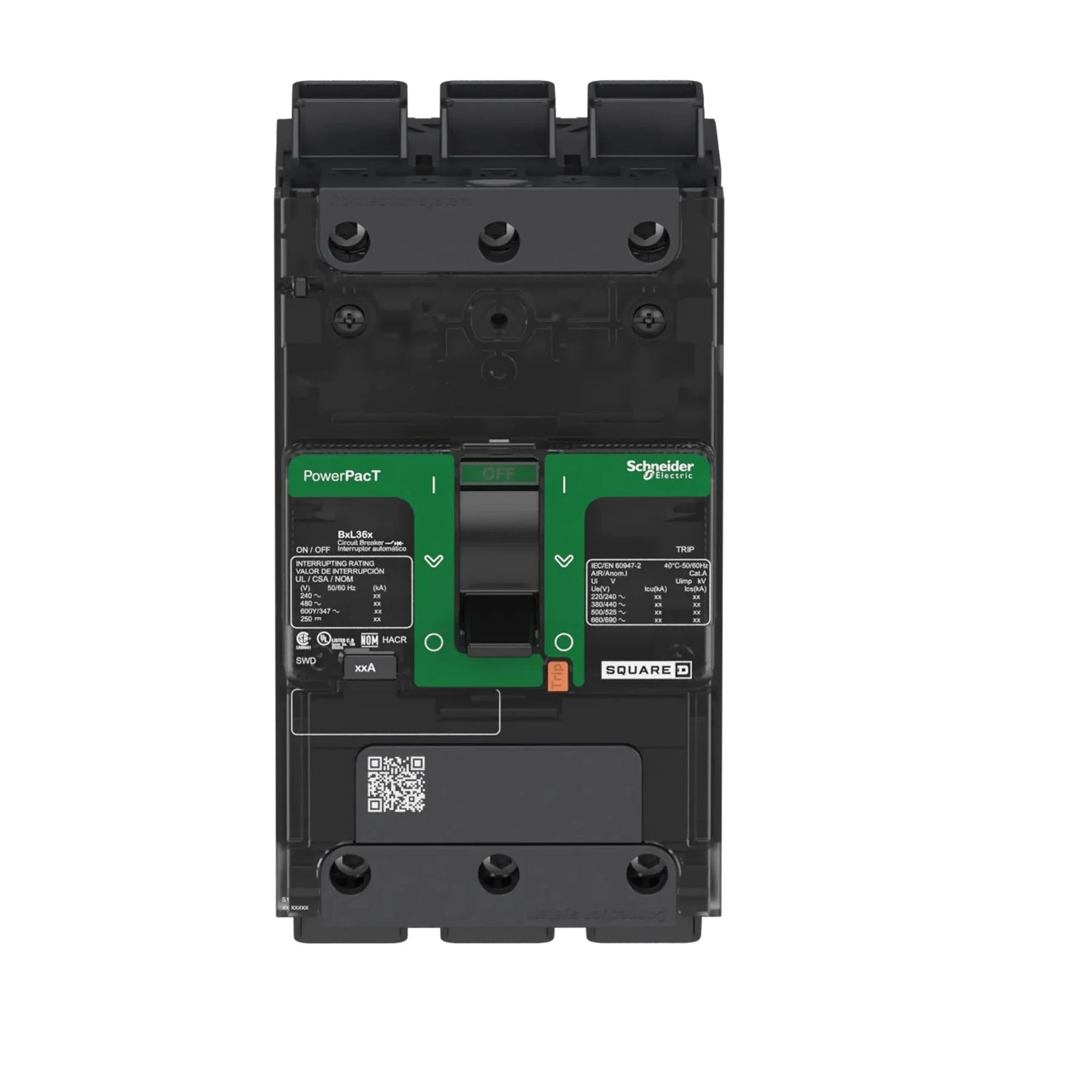

Square D BDL36080 PowerPacT B-Frame Molded Case Circuit Breaker – 3 Pole – 80A – 600V – Feed-Thru – Thermal Magnetic (LI)

The Square D BDL36080 is a PowerPacT B-Frame molded case circuit breaker designed for reliable protection in commercial and industrial electrical distribution systems. Manufactured by Schneider Electric under the Square D brand, it delivers dependable long-time and instantaneous (LI) thermal-magnetic protection for branch circuit applications.

This 3-pole, 80A breaker is rated for 600VAC systems and is designed in a feed-thru configuration with EverLink lug technology on both line and load sides. It provides stable, maintenance-resistant connections by minimizing conductor loosening over time. The unit supports installation flexibility with back pan screw mounting or DIN rail integration depending on panel design.

Engineered for durability in demanding environments, it includes dual-break rotating contacts to reduce peak current during fault conditions and an integrated push-to-trip mechanism for manual testing. It is suitable for industrial control panels, distribution boards, and OEM equipment requiring compact, high-performance circuit protection.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: BDL36080
• Series: PowerPacT B-Frame
• Type: Molded Case Circuit Breaker (MCCB)
• Configuration: 3 Pole
• Phase: 3 Phase
• Amperage: 80A
• Voltage Rating: 600V
• Connection Type: Feed-Thru
• Trip Function: LI (Long-Time and Instantaneous)
• Trip Technology: Thermal Magnetic
• Continuous Current Rating: 80%
• AIC Rating: 18kA @ 480VAC (14kA @ 600Y/347VAC)

Mounting & Construction

• Mounting Type: Back pan screw mount or DIN rail
• Lug Type: EverLink line and load side lugs
• Contact Design: Dual-break rotating contacts
• Operation: Toggle with push-to-trip feature
• Frame Type: B-Frame

Dimensions

• Height: 5.39 in
• Width: 3.19 in
• Depth: 3.15 in
• Weight: 2.37 lb

Applications

• Industrial distribution systems
• Commercial electrical panels
• OEM machinery control panels
• HVAC and mechanical equipment
• Switchboards and panelboards

Certifications & Approvals

• UL 489 compliant
• CSA certified
• IEC compliant
• CE marked
• NOM approved
• Designed to meet NEMA AB 1 standards
