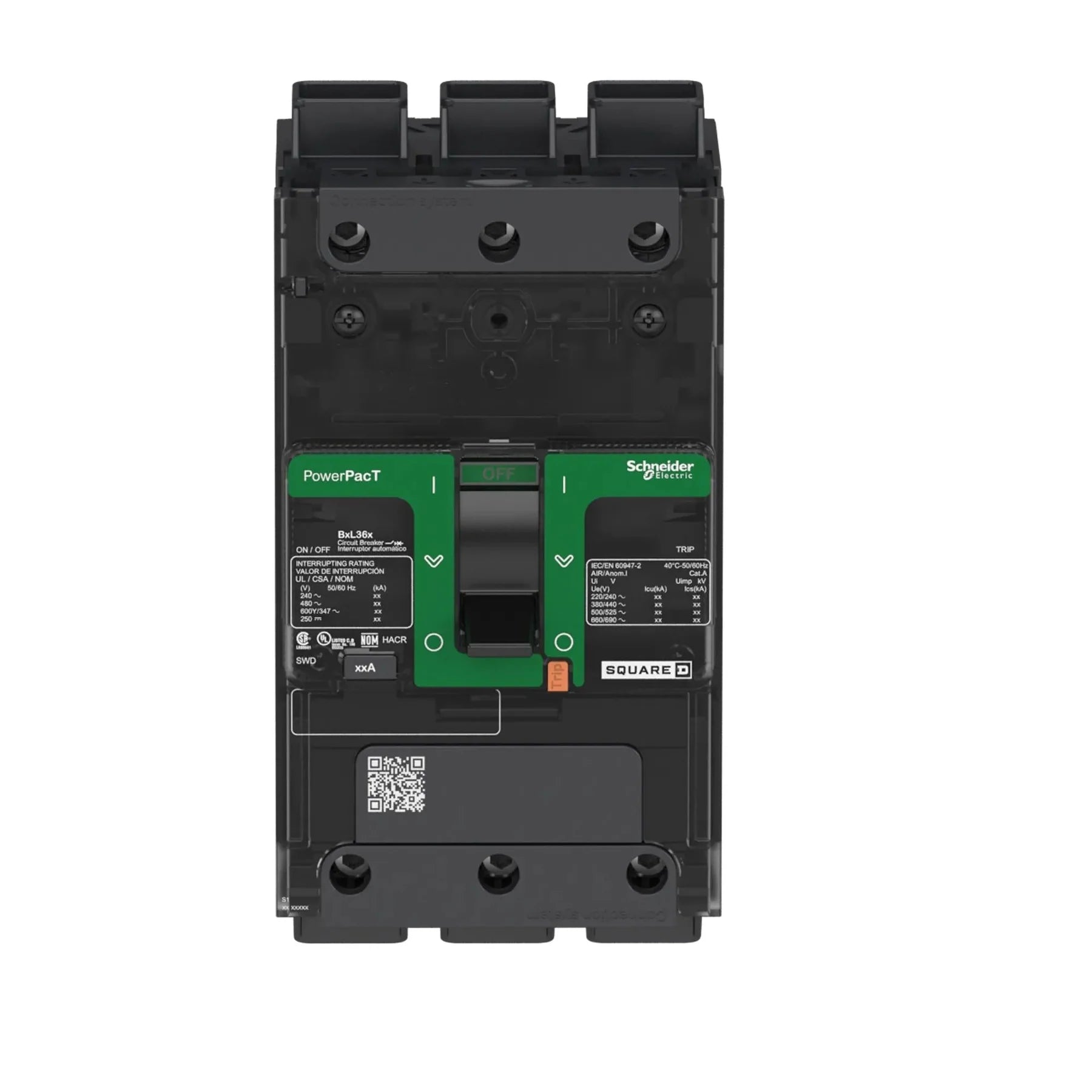

Square D BDL36100LU PowerPacT B-Frame Molded Case Circuit Breaker – 3 Pole – 100A – 600V – Feed-Thru – Thermal Magnetic (LI) – Control Wire Terminal

The Square D BDL36100LU is a PowerPacT B-Frame molded case circuit breaker designed to provide dependable overcurrent and short-circuit protection in commercial and industrial power distribution systems. Manufactured by Schneider Electric under the Square D brand, this 3-pole, 100A breaker utilizes thermal-magnetic trip technology to deliver reliable long-time and instantaneous (LI) protection.

Designed with a feed-thru configuration, the BDL36100LU features EverLink line and load side lugs that help maintain secure conductor connections by compensating for cable creep over time. The breaker incorporates dual-break rotating contacts to reduce peak fault current and includes an integral push-to-trip button for convenient testing and maintenance. A control wire terminal integrated into the line-end EverLink lug provides additional wiring flexibility for control applications.

Its compact B-Frame design supports both traditional back-pan mounting and DIN rail installation, making it suitable for industrial control panels, switchboards, and OEM equipment requiring high-performance circuit protection.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: BDL36100LU
• Series: PowerPacT B-Frame
• Type: Molded Case Circuit Breaker (MCCB)
• Configuration: 3 Pole
• Phase: 3 Phase
• Amperage: 100A
• Voltage Rating: 600V
• Connection Type: Feed-Thru
• Trip Function: Long-Time and Instantaneous (LI)
• Trip Technology: Thermal Magnetic
• Continuous Current Rating: 80%
• AIC Rating: 18kA @ 480VAC (14kA @ 600Y/347VAC)

Construction

• Compact PowerPacT B-Frame design
• Feed-thru configuration with line and load side EverLink lugs
• Integrated control wire terminal on line-end lug
• Dual-break rotating contacts for reduced peak fault current
• Integral push-to-trip button for manual testing
• Supports back-pan or DIN rail mounting installations
• Designed for reliable protection in demanding industrial environments

Applications

• Industrial control panels
• Commercial electrical distribution systems
• Switchboards and panelboards
• OEM machinery and equipment
• Motor feeder and branch circuit protection
• Manufacturing facilities and process equipment

Dimensions

• Compact B-Frame construction for space-efficient installation
• Standard 3-pole PowerPacT B-Frame footprint

Certifications & Approvals

• UL Listed
• CSA Certified
• IEC Compliant
• CE Marked
• NOM Approved
• Meets applicable PowerPacT B-Frame industry standards
• Authentic Square D / Schneider Electric product
