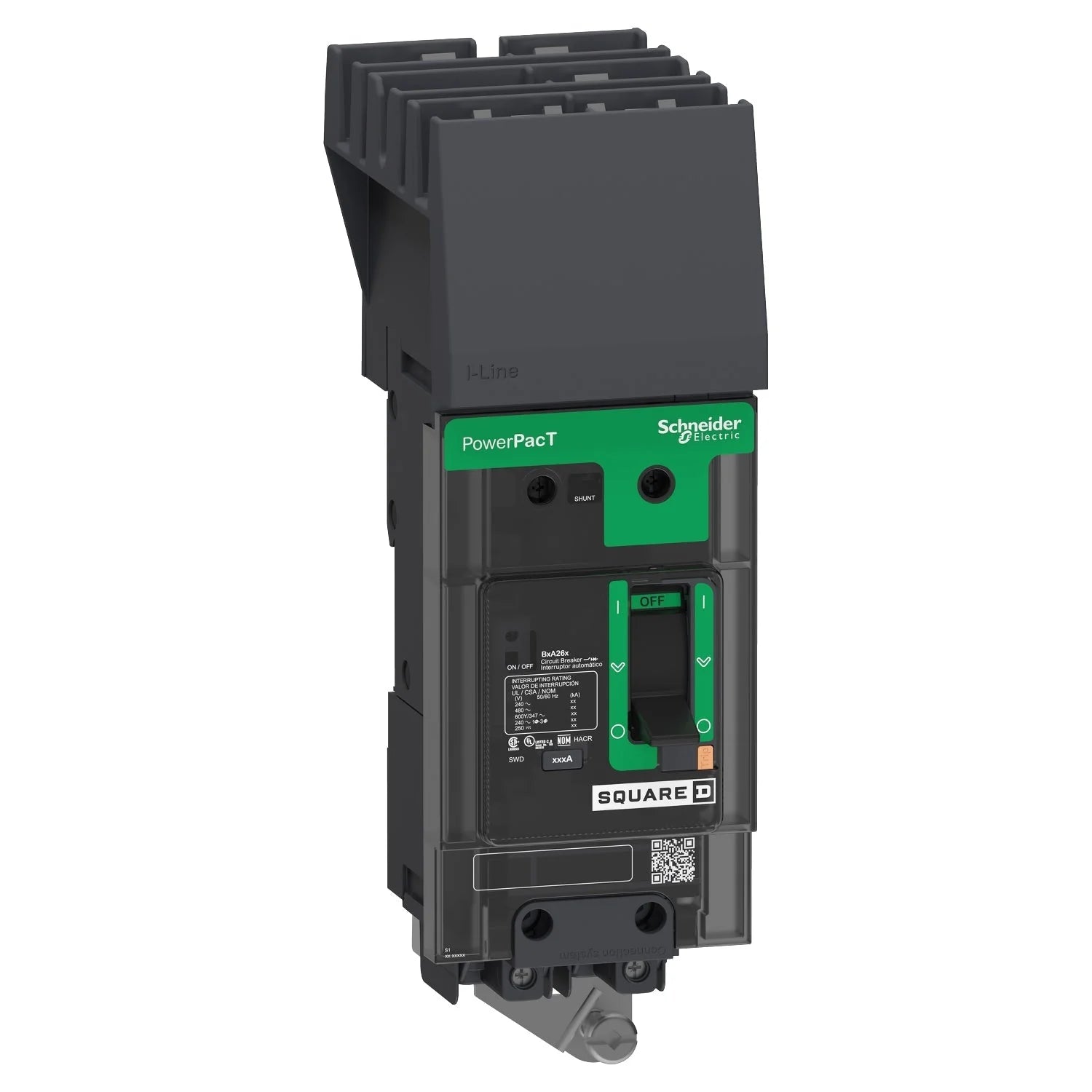

Square D BGA260401 Molded Case Circuit Breaker – PowerPacT B-Frame – 2 Pole – 40A – 600Y/347VAC – I-Line Plug-In – AB Phase Connection
Couldn't load pickup availability
Ask an expert
The Square D BGA260401 is a PowerPacT B-Frame molded case circuit breaker designed to provide dependable overcurrent and short-circuit protection in commercial and industrial power distribution systems. Manufactured by Schneider Electric under the Square D brand, this 2-pole breaker combines compact construction with high interrupting capacity, making it suitable for demanding panelboard and switchboard applications.
Rated at 40A and 600Y/347VAC, the BGA260401 features fixed thermal-magnetic trip protection with long-time and instantaneous (LI) functions. Its I-Line plug-in mounting design enables fast installation into compatible Square D I-Line panelboards and switchboards. The factory-configured AB phase connection and load-side mechanical lug terminals simplify wiring while maintaining secure electrical connections.
With a 35kA interrupting capacity at 480VAC, this breaker is engineered to withstand higher fault-current conditions than standard B-frame models, delivering enhanced protection for critical electrical systems.
Specifications
- Brand: Square D
- Manufacturer: Schneider Electric
- Part Number: BGA260401
- Series: PowerPacT B-Frame
- Type: Molded Case Circuit Breaker
- Configuration: 2 Pole
- Phase: 1 Phase
- Current Rating: 40A
- Voltage Rating: 600Y/347VAC
- Mounting Style: I-Line Plug-In
- Connection Type: Load Side Mechanical Lug Terminals
- Phase Connection: AB
- Trip Technology: Thermal Magnetic
- Trip Functions: LI – Long-Time and Instantaneous
- Interrupt Rating: 35kA @ 480VAC
Electrical Ratings
- Current Rating: 40A
- Voltage Rating: 600Y/347VAC
- Interrupting Capacity: 35kA @ 480VAC
- Continuous Current Rating: 80%
- Protection Type: Overload and Short-Circuit Protection
Dimensions
- Weight: 2.10 lb
Construction
- Compact PowerPacT B-Frame design
- Fixed thermal-magnetic trip unit
- Non-interchangeable trip mechanism
- Factory-configured AB phase connection
- I-Line style plug-in mounting for quick installation
- Load-side mechanical lug terminals
- High interrupting capacity for demanding applications
- Durable molded case construction
Applications
- Commercial electrical distribution systems
- Industrial power distribution equipment
- I-Line panelboards
- I-Line switchboards
- Branch circuit protection
- Manufacturing facilities
- Institutional and commercial buildings
Certifications & Approvals
- CSA Approved
- UL Listed
- IEC Compliant
- NOM Compliant
- CE Marked
- Authentic Square D / Schneider Electric Product
- Designed for PowerPacT B-Frame Applications
- Type Thermal Magnetic
- Vendor Square D
- Brand Square D
