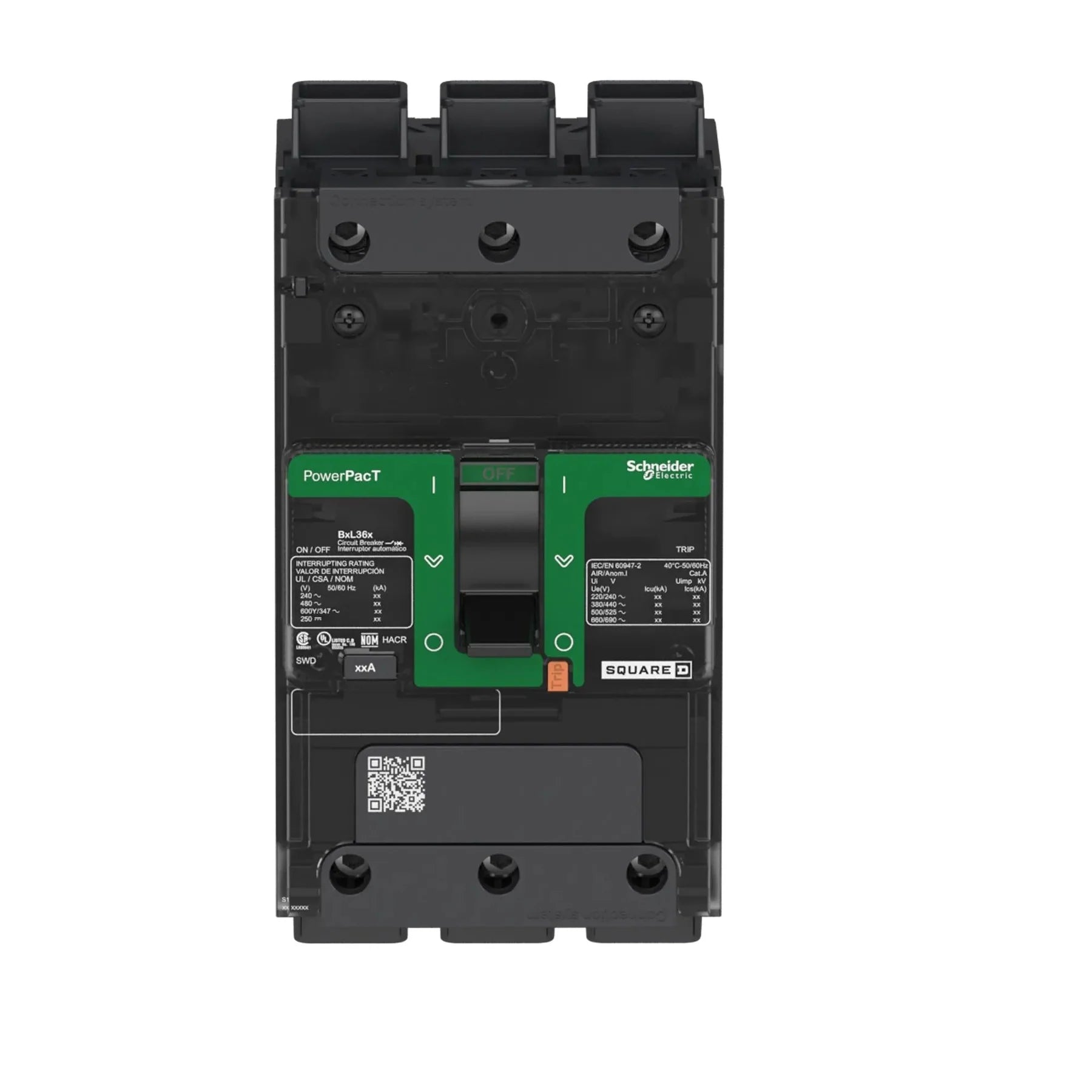

Square D BGL36030 PowerPacT B-Frame Molded Case Circuit Breaker – 3 Pole – 30A – 600Y/347VAC – Feed-Thru – Thermal Magnetic

The Square D BGL36030 is a PowerPacT B-Frame molded case circuit breaker engineered for commercial, industrial, and OEM power distribution applications. Manufactured by Schneider Electric under the Square D brand, this 3-pole, 30A breaker provides dependable thermal-magnetic circuit protection in a compact footprint while maintaining high interrupting capacity for demanding electrical systems.

Designed with feed-thru unit-mount construction, the BGL36030 offers installation flexibility through traditional back-pan mounting or integrated DIN rail mounting. It features patented EverLink lug technology on both line and load connections to minimize conductor loosening caused by thermal cycling and vibration, helping improve long-term connection reliability.

This breaker incorporates dual-break rotating contacts to reduce peak fault current during short-circuit events and includes an integral push-to-trip button for manual testing and maintenance. With a 35kA interrupting rating at 480VAC and an 18kA rating at 600Y/347VAC, it is suitable for a wide range of electrical distribution and control panel applications.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: BGL36030
• Series: PowerPacT B-Frame
• Type: Molded Case Circuit Breaker
• Configuration: 3 Pole
• Phase: 3 Phase
• Current Rating: 30A
• Voltage Rating: 600Y/347VAC
• Connection Type: Feed-Thru
• Mounting Style: Unit Mount
• Protection Type: Thermal Magnetic
• Trip Function: LI – Long-Time and Instantaneous
• Continuous Current Rating: 80%

Interrupting Ratings

• 35kA @ 480VAC
• 18kA @ 600Y/347VAC

Dimensions

• Height: 5.39 in
• Width: 3.19 in
• Depth: 3.15 in
• Weight: 2.37 lbs

Construction Features

• Compact PowerPacT B-Frame design
• Dual-break rotating contacts for reduced peak fault current
• Feed-thru configuration with line and load side EverLink lugs
• Integrated push-to-trip button for manual testing
• Traditional back-pan and DIN rail mounting capability
• Non-interchangeable thermal-magnetic trip unit
• EverLink creep-compensating lug technology
• Compact footprint for panelboard and control panel installations

Applications

• Commercial electrical distribution systems
• Industrial power distribution equipment
• Motor control applications
• Industrial control panels
• OEM machinery and equipment
• Switchboards and distribution assemblies

Certifications & Approvals

• UL Listed
• CSA Certified
• NOM Compliant
• IEC Compliant
• CE Marked
• Authentic Square D / Schneider Electric product
• Manufactured to PowerPacT B-Frame specifications
