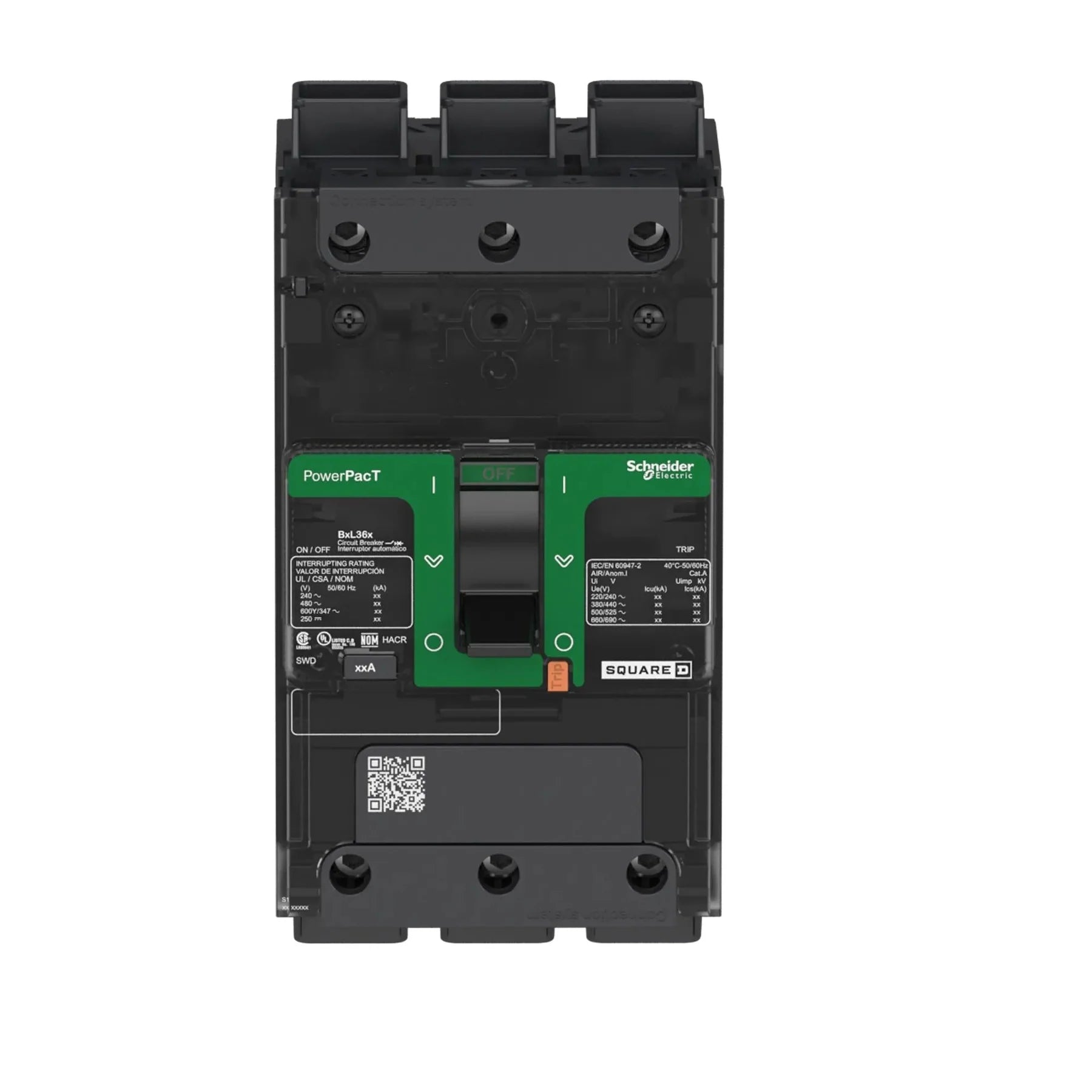

Square D BGL36040 PowerPacT B-Frame Molded Case Circuit Breaker – 3 Pole – 40A – 600Y/347VAC – Feed-Thru – Thermal Magnetic

In stock
SKU: BGL36040 GTIN/UPC: 3606481154095
$907.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D BGL36040 is a PowerPacT B-Frame molded case circuit breaker designed for commercial, industrial, and OEM electrical distribution systems. Manufactured by Schneider Electric under the Square D brand, this 3-pole, 40A breaker provides dependable thermal-magnetic protection while maintaining a compact footprint suitable for control panels, switchboards, and distribution equipment.

Featuring a feed-thru unit-mount design, the BGL36040 offers flexible installation through either traditional back-pan mounting or integrated DIN rail mounting. The breaker is equipped with patented EverLink lugs on both line and load terminals, helping compensate for conductor creep and reducing the need for retightening over time.

PowerPacT B-Frame breakers utilize dual-break rotating contacts that limit peak fault current during short-circuit conditions, enhancing system protection. An integral push-to-trip button allows for convenient manual testing and maintenance. With a 35kA interrupting rating at 480VAC and an 18kA rating at 600Y/347VAC, the BGL36040 is engineered to provide reliable protection in demanding electrical environments.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: BGL36040
  • Series: PowerPacT B-Frame
  • Type: Molded Case Circuit Breaker
  • Configuration: 3 Pole
  • Phase: 3 Phase
  • Current Rating: 40A
  • Voltage Rating: 600Y/347VAC
  • Connection Type: Feed-Thru
  • Mounting Style: Unit Mount
  • Protection Type: Thermal Magnetic
  • Trip Function: Long-Time and Instantaneous (LI)
  • Continuous Current Rating: 80%

Interrupting Ratings

  • 35kA @ 480VAC
  • 18kA @ 600Y/347VAC

Dimensions

  • Height: 5.39 in
  • Width: 3.19 in
  • Depth: 3.15 in
  • Weight: 2.37 lbs

Construction Features

  • Compact PowerPacT B-Frame construction
  • Thermal-magnetic trip mechanism
  • Dual-break rotating contacts for improved fault current limitation
  • Feed-thru design with line and load side EverLink lugs
  • Integrated push-to-trip button for testing and maintenance
  • Back-pan and DIN rail mounting options
  • Non-interchangeable trip unit
  • EverLink creep-compensating terminal technology
  • Durable molded case construction for industrial environments

Applications

  • Commercial power distribution systems
  • Industrial electrical equipment
  • Motor control and protection circuits
  • OEM machinery and equipment
  • Control panels and switchboards
  • Distribution panels and power systems

Certifications & Approvals

  • UL Listed
  • CSA Certified
  • NOM Compliant
  • IEC Compliant
  • CE Marked
  • Authentic Square D / Schneider Electric product
  • Manufactured to PowerPacT B-Frame specifications
  • Meets applicable UL, CSA, NOM, and IEC standards
