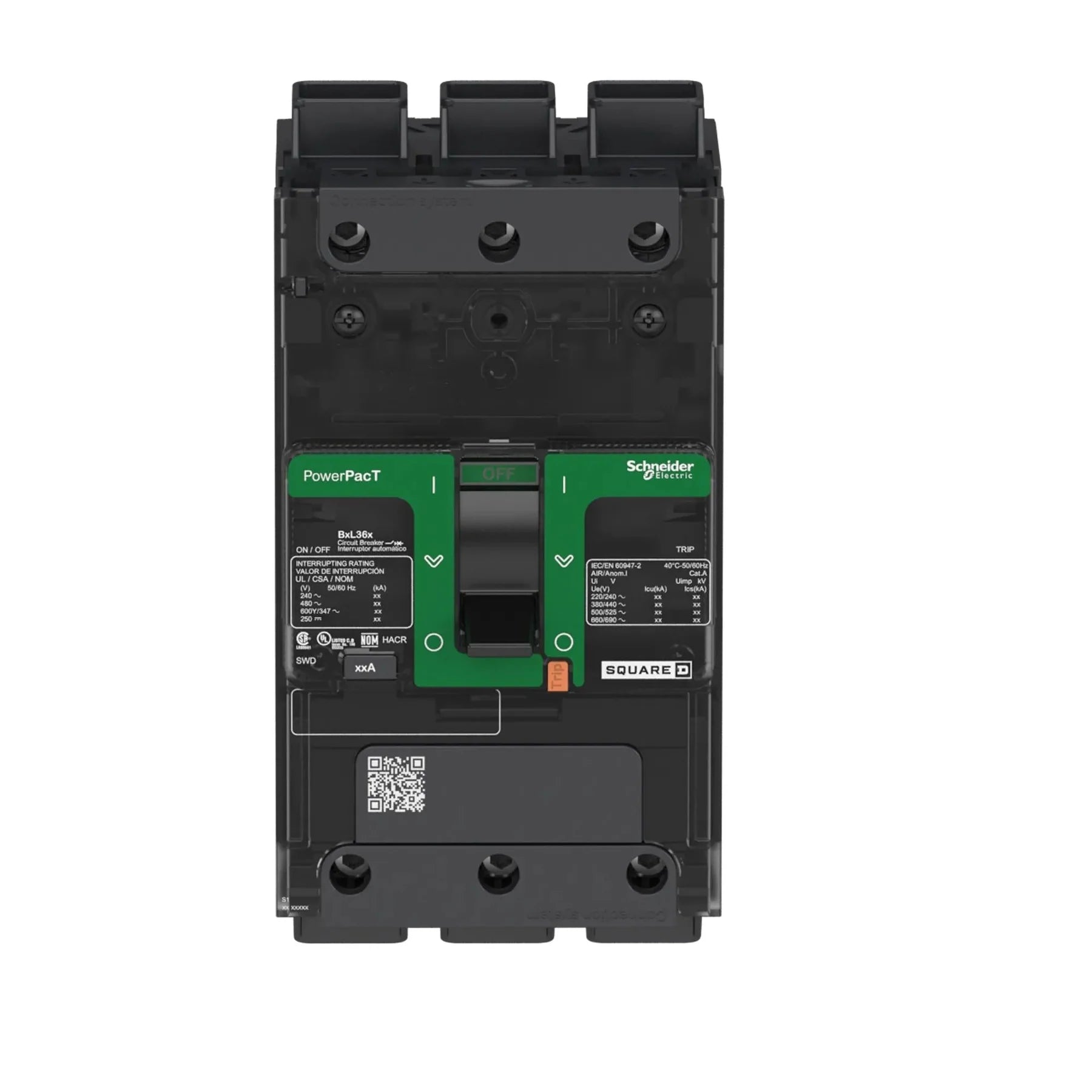

Square D BGL36060 PowerPacT B-Frame Molded Case Circuit Breaker – 3 Pole – 60A – 600Y/347VAC – Feed-Thru – Thermal Magnetic

The Square D BGL36060 is a PowerPacT B-Frame molded case circuit breaker engineered for commercial, industrial, and OEM power distribution applications. Manufactured by Schneider Electric under the Square D brand, this 3-pole, 60A breaker delivers dependable thermal-magnetic protection in a compact, space-saving design suitable for control panels, switchboards, and electrical distribution equipment.

Designed with feed-thru unit-mount construction, the BGL36060 provides installation flexibility through traditional back-pan mounting or integrated DIN rail mounting. The breaker is equipped with patented EverLink lug technology on both line and load terminations, helping maintain secure electrical connections by compensating for conductor creep caused by thermal cycling and vibration.

PowerPacT B-Frame breakers feature dual-break rotating contacts that help reduce peak fault current during short-circuit conditions, improving system protection and equipment longevity. An integral push-to-trip button allows for convenient manual testing and maintenance. With a 35kA interrupting rating at 480VAC and an 18kA rating at 600Y/347VAC, the BGL36060 is well-suited for demanding electrical distribution systems.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: BGL36060
• Series: PowerPacT B-Frame
• Type: Molded Case Circuit Breaker
• Configuration: 3 Pole
• Phase: 3 Phase
• Current Rating: 60A
• Voltage Rating: 600Y/347VAC
• Connection Type: Feed-Thru
• Mounting Style: Unit Mount
• Protection Type: Thermal Magnetic
• Trip Function: LI – Long-Time and Instantaneous
• Continuous Current Rating: 80%

Interrupting Ratings

• 35kA @ 480VAC
• 18kA @ 600Y/347VAC

Dimensions

• Height: 5.39 in
• Width: 3.19 in
• Depth: 3.15 in
• Weight: 2.37 lbs

Construction Features

• Compact PowerPacT B-Frame design
• Thermal-magnetic trip mechanism
• Dual-break rotating contacts for current-limiting performance
• Feed-thru configuration with line and load side EverLink lugs
• Integrated push-to-trip button for testing and maintenance
• Back-pan and DIN rail mounting capability
• Non-interchangeable trip unit construction
• EverLink creep-compensating terminal technology
• Durable molded case construction for industrial environments

Applications

• Commercial electrical distribution systems
• Industrial power distribution equipment
• Motor control circuits
• OEM machinery and equipment
• Industrial control panels
• Switchboards and distribution panels

Certifications & Approvals

• UL Listed
• CSA Certified
• NOM Compliant
• IEC Compliant
• CE Marked
• Authentic Square D / Schneider Electric product
• Manufactured to PowerPacT B-Frame specifications
• Meets applicable UL, CSA, NOM, and IEC standards
